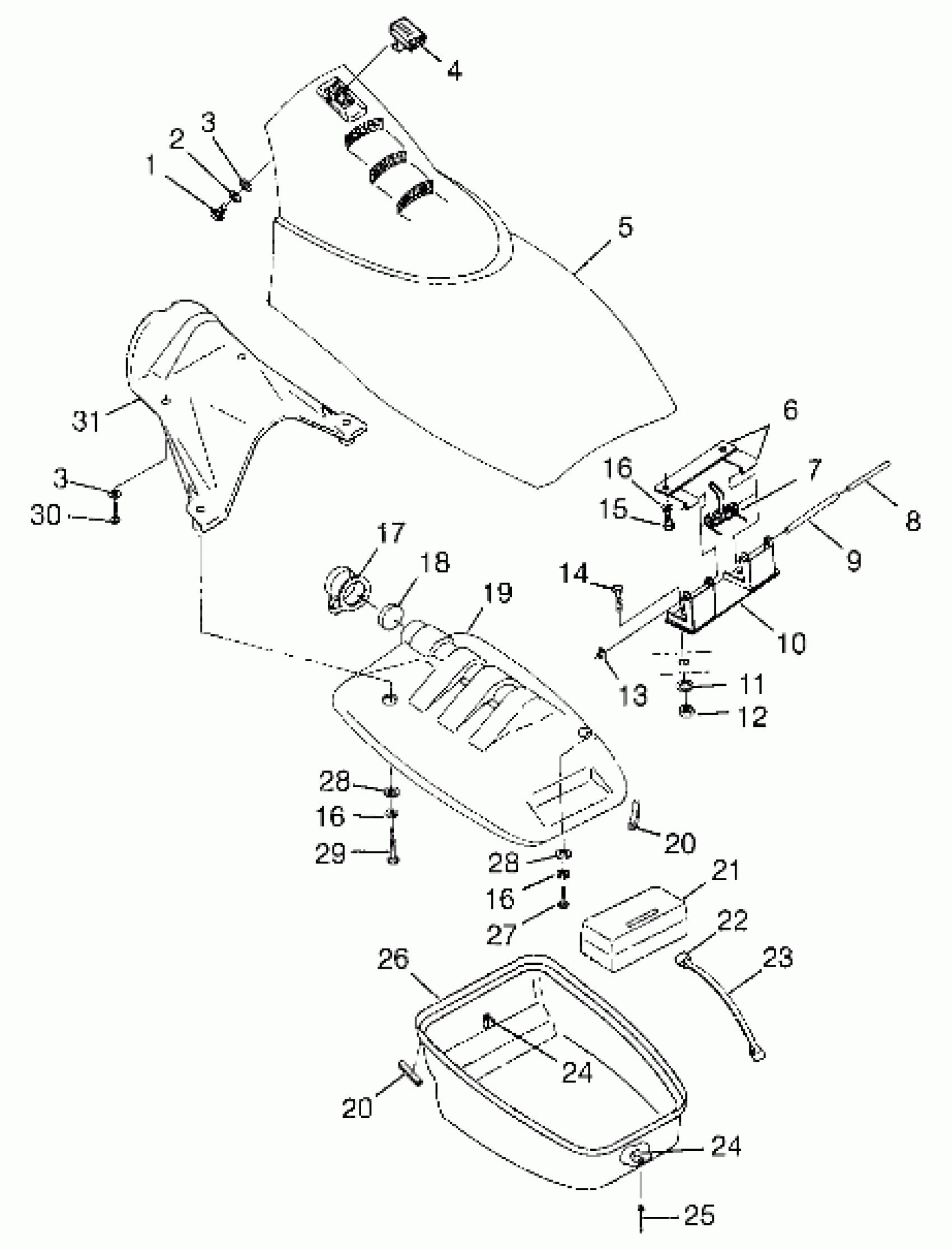

Polaris SLX PRO 785 - B974978 FRONT STORAGE COMPARTMENT - B974978 (4941254125a008) Diagram

#

Description
Price

1

BOLT, SS.(10)

7512045

$4.99

2

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, FLAT, S.S.(10)

7555837

$1.59

3

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

LATCH ASM,COMP./DOOR

2653008

Unavailable

5

DOOR,COMPART,BLK MET

5432514-177

$504.99

6

PLATE,SPRING,SUPPORT Substituted by 1060140-067

5211862

$26.98

6

HINGE,UPPER

5222698

$2.78

6

SUPPORT,UP.DOOR Substituted by 1060140-067

1060140

$26.98

7

SPRING,DR.SUPPORT,SL

7041664

$26.38

8

PIN,HINGE,COMP/DOOR,SL

5333609

Unavailable

9

MANDREL,SPRING,COMP.DOOR

5432747

Unavailable

10

PLATE,WEAR,SPRING

5211878

Unavailable

11

WASHER, FLAT, S.S.(10)

7555831

Unavailable

12

NUT, HEX, S.S.(10)

7542335

Unavailable

13

TBD

TBD

Unavailable

14

BOLT, S.S.

7515365

Unavailable

15

BOLT, S.S.(10)

7515121

$0.59

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, LOCK, S.S.(10)

7555838

Unavailable

17

CAP,FIRE EXT.,YELLOW

5431398-053

$5.71

18

PAD,FOAM,FIRE EXT.

5810799

Unavailable

19

LID,STOR.EXTINGUISHER

5432579

Unavailable

20

SEAL,FR.STORAGE BKT.

5521252

Unavailable

20

SEAL,FR.STORAGE BKT.

5521252

Unavailable

21

BOX, TOOL

5431508

Unavailable

22

HOOK,'D',SST/SS,(10)

5224472

Unavailable

23

STRAP-BATTERY

5430621

Unavailable

24

Clip

5240187

$6.35

24

Clip

5240187

$6.35

25

RIVET

7621478

Unavailable

26

BUCKET,STORAGE,FRONT

5432526

Unavailable

27

BOLT(10)

7515127

Unavailable

28

WASHER, FLAT, S.S.(10)

7555839

Unavailable

28

WASHER, FLAT, S.S.(10)

7555839

Unavailable

29

BOLT(10)

7515130

Unavailable

30

SCREW(10)

7512049

Unavailable

31

BAFFLE,AIR INTAKE,CUT

5432591

$30.99
