ELECTRICAL BOX - B974978 (4941254125b011)

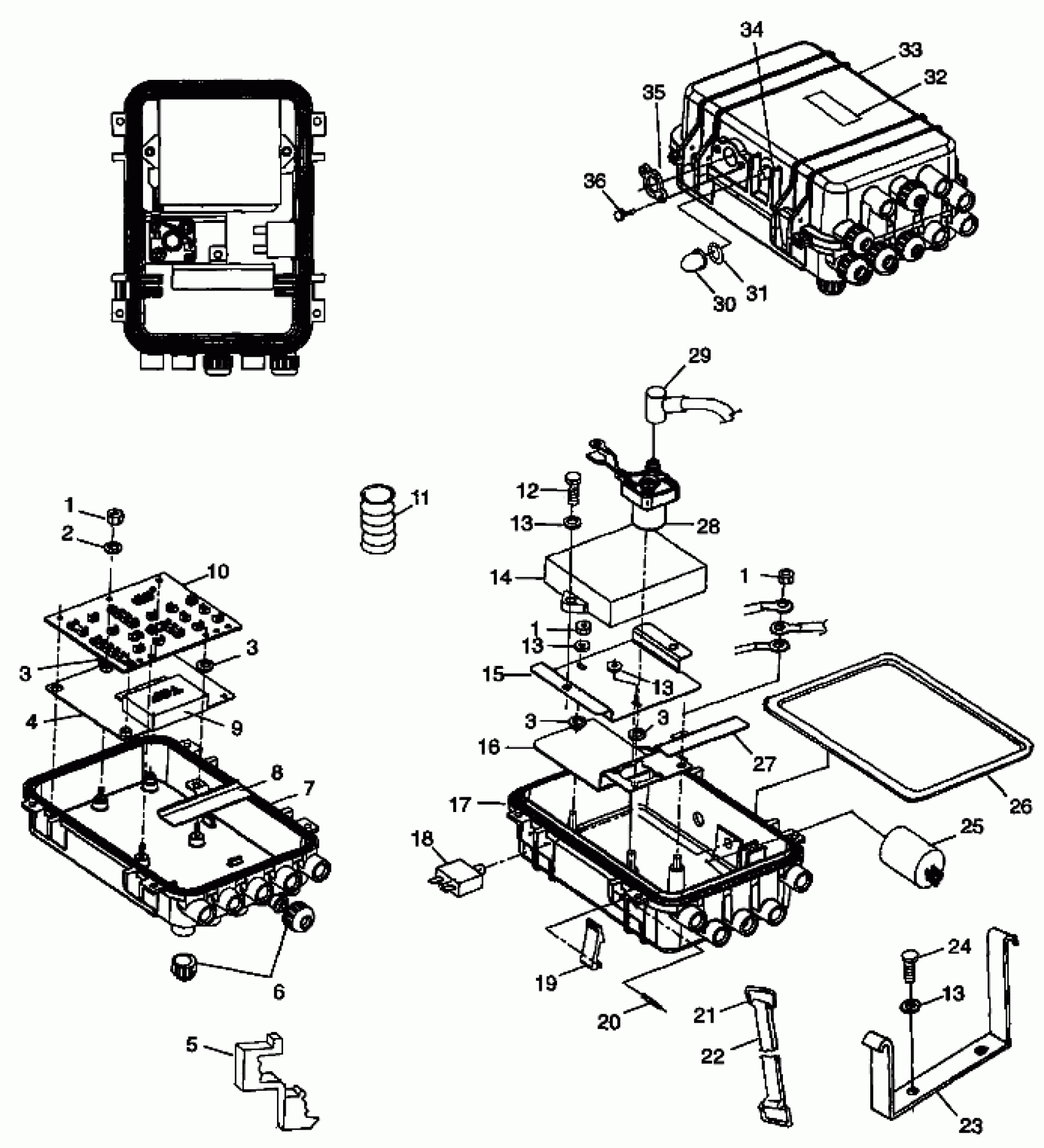

Polaris SLX PRO 785 - B974978 ELECTRICAL BOX - B974978 (4941254125b011) Diagram
#
1
NUT, SS.(10)
7547036
Unavailable
1
NUT, SS.(10)
7547036
Unavailable
1
NUT, SS.(10)
7547036
Unavailable
2
WASHER(10)
7555836
$3.99
3
WASHER,RUBBER(10)
7555870
Unavailable
3
WASHER,RUBBER(10)
7555870
Unavailable
3
WASHER,RUBBER(10)
7555870
Unavailable
3
WASHER,RUBBER(10)
7555870
Unavailable
4
PLATE,BTM,E-BOX
5211761
Unavailable
5
T-CLIP(10)
7080471
$3.59
6
CAP,GROMMET,ELEC.BOX
5432502
Unavailable
7
BOTTOM,ELEC.BOX Substituted by 2620120
5432483
Unavailable
8
BRKT,RETAINER,CDI Substituted by 1060137
5242240
Unavailable
9
REG.RECT/CUTOFF,LR31 Substituted by 4010302
4060192
Unavailable
10
TERM.BOARD ASM,MFD
2434014
Unavailable
11
CONDUIT,CONVOL. Substituted by 4010051-15
4010051-05
Unavailable
12
BOLT(10)
7515128
Unavailable
13
WASHER, FLAT, S.S.(10)
7555837
Unavailable
13
WASHER, FLAT, S.S.(10)
7555837
Unavailable
13
WASHER, FLAT, S.S.(10)
7555837
Unavailable
13
WASHER, FLAT, S.S.(10)
7555837
Unavailable
14
C.D.I. System (See Pg. C8, Ref. 8)
-------
Unavailable
15
BRKT,RETAINER,CDI
1060137
Unavailable
16
PLATE,TOP,E-BOX
5211760
Unavailable
17
TOP,ELEC.BOX,PLASTIC(780) Substituted by 2620121
5432807
Unavailable
18
CKT.BREAKER,15A.(WATER.)
2434011
Unavailable
19
LATCH,ELEC.BOX Substituted by 2620120
5432503
Unavailable
20
PIN,LATCH,ELEC.BOX
5333544
Unavailable
21
HOOK,'D',SST/SS,(10)
5224472
$2.19
22
STRAP,BATTERY HOLDDOWN
5410424
Unavailable
23
CRADLE,ELECT,PWC,AGR
5241845
Unavailable
24
BOLT(10)
7515127
Unavailable
25
Ignition Coil (See Pg. C8, Ref. 7)
-------
Unavailable
26
SEAL, E-BOX Substituted by 2620120
5432569
Unavailable
27
BRKT,COIL/SOL.(780ENG)
5242471
Unavailable
28
Switch, Magnetic (See Pg. C8, Ref. 9)
-------
Unavailable
29
INSULATOR-CABLE
5410346
$6.39
30
BOOT,THREADED,RED
7080461
Unavailable
31
O-RING
5410725
Unavailable
32
DECAL,WARN,HI.VOLT.
7073713
Unavailable
33
BOX ASM,ELEC(PLASTIC),780 Substituted by 2632138 (Incl. 7,17,19,20,26)
2620121
Unavailable
34
DECAL,ELECT.BOX RESET
7073734
Unavailable
35
GROMMET,1 HOLE,LARGE
5411213
Unavailable
36
BOLT, S.S.(10)
7515118
Unavailable
