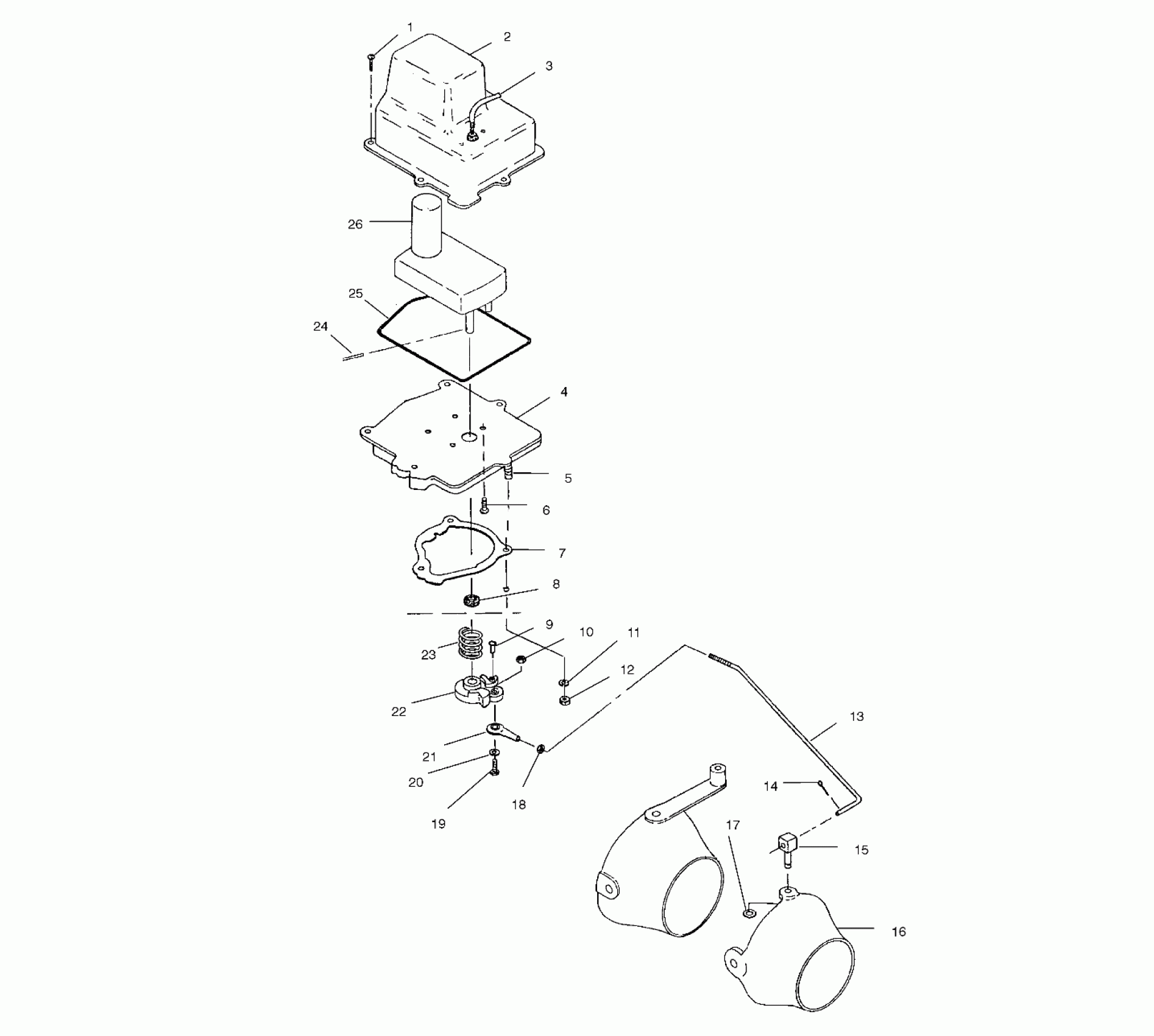

Polaris SLX - B994690 TRIM PACKAGE - I994690 (4951365136b005) Diagram

#

Description
Price

1

SCREW(10)

7512052

Unavailable

2

COVER,TRIM MTR.

5431551

$77.99

3

HARNESS,TRIM,2HOLE GROMMET

2460635

Unavailable

4

BASE,MOTOR

5630798

$54.99

5

STUD,S.S.(10)

5131050

$6.99

6

SCREW(10)

7511872

$2.54

7

GASKET, MOTOR BASE

5810818

Unavailable

8

SEAL, OIL

3610042

Unavailable

9

SCREW(10)

7511873

Unavailable

10

NUT, HEX, S.S.(10)

7541931

$5.99

11

WASHER, FLAT, S.S.(10)

7555839

Unavailable

12

NUT,NYLOK,S.S.(10)

7542133

Unavailable

13

LINKAGE,THREADED

5224670

Unavailable

14

PIN, COTTER(10)

7661010

$1.19

15

SWIVEL,ROD END

5131463

Unavailable

16

Nozzle, Trim (See Footnote) (See Propulsion Pg. B4, Ref. 38)

----

Unavailable

17

WASHER(10)

7555866

Unavailable

18

NUT (10)

1860102

Unavailable

19

BOLT, S.S.(10)

7512041

$2.54

20

WASHER, FLAT, S.S.(10)

7555837

$1.59

21

ROD END, S.S.

7060154

Unavailable

22

LEVER,TRIM,HD

5432551

$31.90

23

SPRING,TRIM,HVY.

7041469

Unavailable

24

PIN,DRIVE

7661646

Unavailable

25

O RING,MTR.COVER

5410756

Unavailable

26

GEARMOTOR ASM,6 RPM

4170018

Unavailable
