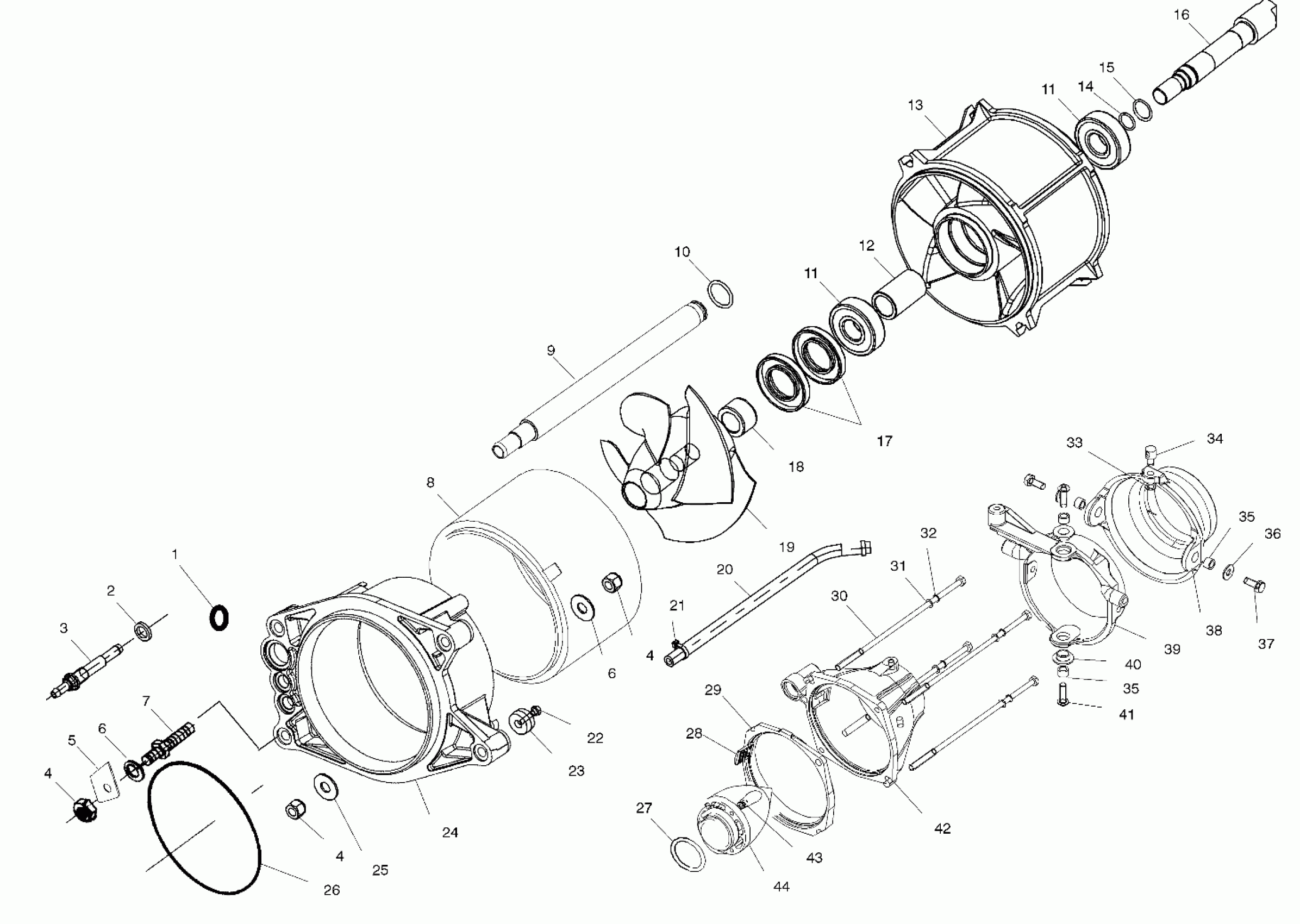

Polaris SLX - B994690 PROPULSION - I994690 (4951365136b004) Diagram

#

Description
Price

1

SEAL,WATER PIPE

5411107

Unavailable

2

SEAL,SIPHON TUBE

5411016

Unavailable

3

PIPE,WATER BILGE

5020835

$49.59

4

NUT,HEX,S.S.(10)

7542455

Unavailable

4

NUT,HEX,S.S.(10)

7542455

Unavailable

4

NUT,HEX,S.S.(10)

7542455

Unavailable

5

BRKT,STRG.CABLE

5241741

Unavailable

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

7

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

8

EXTENSION,PUMP

5131196

$204.99

9

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

10

O RING,(10)

5410735

$0.79

11

Bearing

3514008

Unavailable

11

Bearing

3514008

Unavailable

12

Spacer

5010294

Unavailable

13

STATOR,SS,HI-PERF. Substituted by 5132088

5131711

$364.99

14

O-RING,(10)

5410817

Unavailable

15

O-RING(10)

5410818

$0.79

16

SHAFT, STUB Substituted by 5132674

5020697

$47.62

17

SEAL,BRG,STATOR

3610043

Unavailable

18

Spacer, Impeller

5010295

Unavailable

19

IMPELLER-7.0,.550 CLEARANCE

5132202

Unavailable

20

HOSE,WATER

8450054-100

Unavailable

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

SCREW(10)

7522019

$0.95

23

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

24

HSG,PUMP,W/O RING,INT STUD

5131573

Unavailable

25

Washer

7555966

$2.62

26

O-RING,PUMP HSG/HULL

5410652

Unavailable

27

O-RING

5411716

$1.67

28

SCREEN,ENG.INLET

5431523

Unavailable

29

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

30

Bolt

7515389

Unavailable

31

WASHER, FLAT, S.S.,(10)

7555835

$0.69

32

WASHER, LOCK, S.S.(10)

7552610

Unavailable

33

WASHER(10)

7555866

Unavailable

34

Swivel, Rod End (See Footnote) (See Trim Package Pg. B5, Ref. 15)

----

Unavailable

35

Collar

5130938

Unavailable

35

Collar

5130938

Unavailable

36

WASHER,FLAT,S.S.(10)

7555874

$2.38

37

BOLT, S.S.(10)

7515361

$2.19

38

NOZZLE,TRIM

5431765

Unavailable

39

NOZZLE,STRG.REVERSE

5130960

Unavailable

40

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

41

BOLT, S.S.(10)

7515366

Unavailable

42

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

43

SCREW(10)

7512064

Unavailable

44

Cone, Pump

5431519

Unavailable
