HULL and BODY - I994690 (4951365136a005)

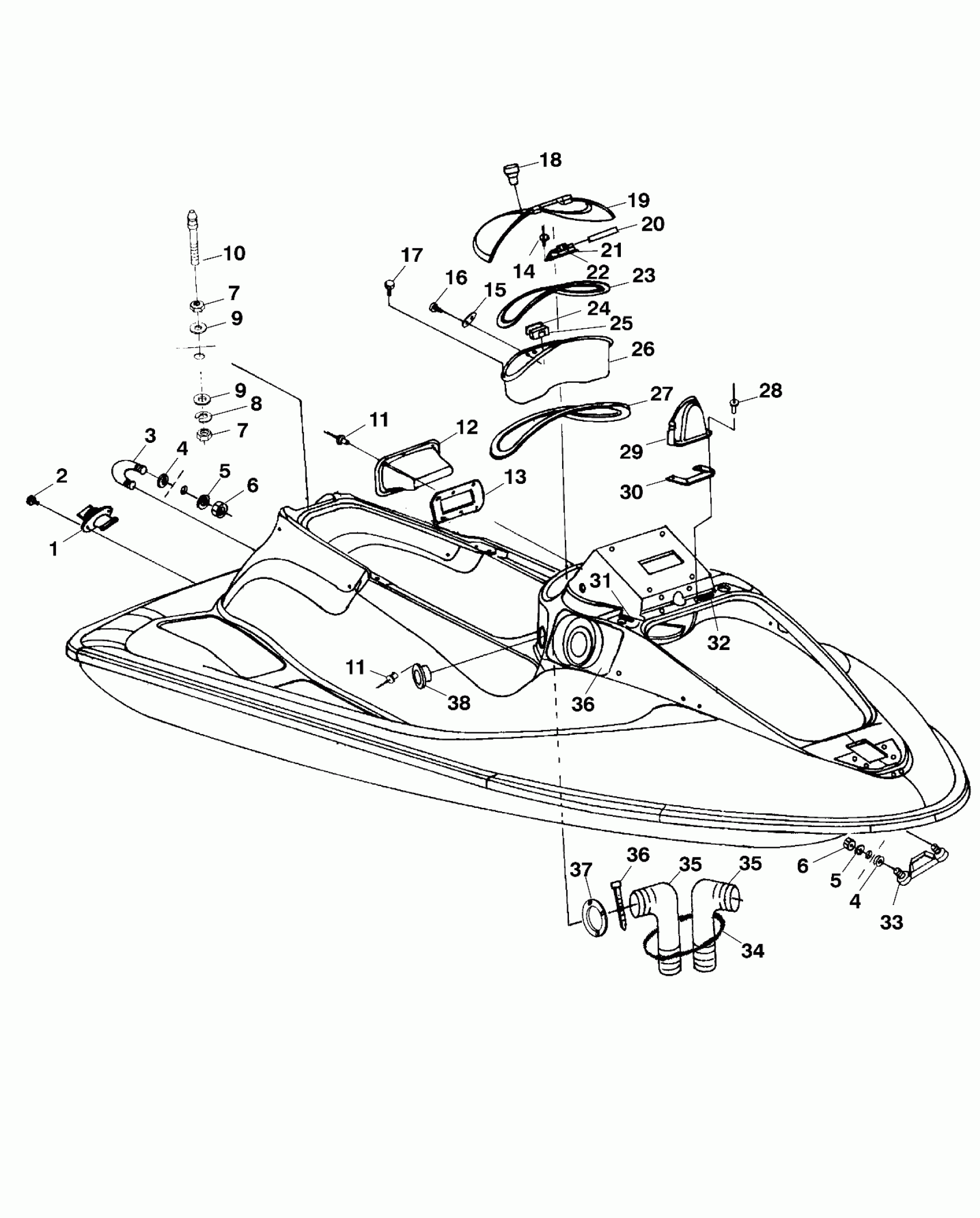

Polaris SLX - B994690 HULL and BODY - I994690 (4951365136a005) Diagram
#
1
PLUG ASM,BILGE
1060125
Unavailable
2
SCREW, S.S.(10)
7511882
Unavailable
3
U-BOLT ASM.
1060126
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
4
WASHER,RUBBER(10)
7555870
Unavailable
5
WASHER, FLAT, S.S.(10)
7555839
Unavailable
5
WASHER, FLAT, S.S.(10)
7555839
Unavailable
6
NUT,NYLOK,S.S.(10)
7542133
Unavailable
6
NUT,NYLOK,S.S.(10)
7542133
Unavailable
7
NUT, HEX, S.S.,(10)
7542454
Unavailable
7
NUT, HEX, S.S.,(10)
7542454
Unavailable
8
WASHER, LOCK, S.S.(10)
7552607
Unavailable
9
WASHER, FLAT(10)
7555846
$5.59
9
WASHER, FLAT(10)
7555846
$5.59
10
PLUNGER,LATCH
5020753
Unavailable
11
RIVET-POP (50)
7661042
Unavailable
11
RIVET-POP (50)
7661042
Unavailable
12
BASE,RECEPTICAL,SEAT,SL2
5432718
Unavailable
13
GASKET,RECEPT.SEATBASE
5811555
Unavailable
14
RIVET-POP (10)
7661039
Unavailable
15
PLATE,HOOK,CONSOLE
5211865
Unavailable
16
SCREW,SS.
7516609
Unavailable
17
CLIP,XMAS TREE
5432949
Unavailable
18
LATCH ASM,CONSOLE
2653011
Unavailable
19
LID-CONSOLE
5432660-1093
Unavailable
20
PIN,HINGE,(CONSOLE)
5333612
Unavailable
21
HINGE,CONSOLE(SL2)
5432645
Unavailable
22
SPRING,TORS.CONSOLE,SS
7041660
Unavailable
23
SEAL,CONSOLE
5521430
Unavailable
24
GASKET,HOOK,CONSOLE
5811552
Unavailable
25
HOOK,LATCH
5432661
Unavailable
26
BOX,GLOVE,BRT.WHI.
5432829-133
Unavailable
27
SEAL,GLOVE BOX
5811565
Unavailable
28
RIVET-POP (10)
7661038
Unavailable
29
SHROUD,WIRE
5432838
Unavailable
30
GASKET,WIRE,SHROUD
5811584
Unavailable
31
DECAL,FUEL,OFF/ON,(SL2)
7077479
Unavailable
32
DECAL,RECOM.OIL,PREMIUM
7077480
Unavailable
33
STRAP, BOW
2670150
Unavailable
34
STRAP, CABLE(10)
7080598
Unavailable
35
DUCT,INLET,AIR,23 INCH
5433496
Unavailable
35
DUCT,INLET,AIR,23 INCH
5433496
Unavailable
36
CLAMP,HOSE,SS.
7080766
Unavailable
36
CLAMP,HOSE,SS.
7080766
Unavailable
37
GASKET-INLET,AIR
5411545
Unavailable
38
FLANGE-INLET,AIR
5433220
Unavailable
