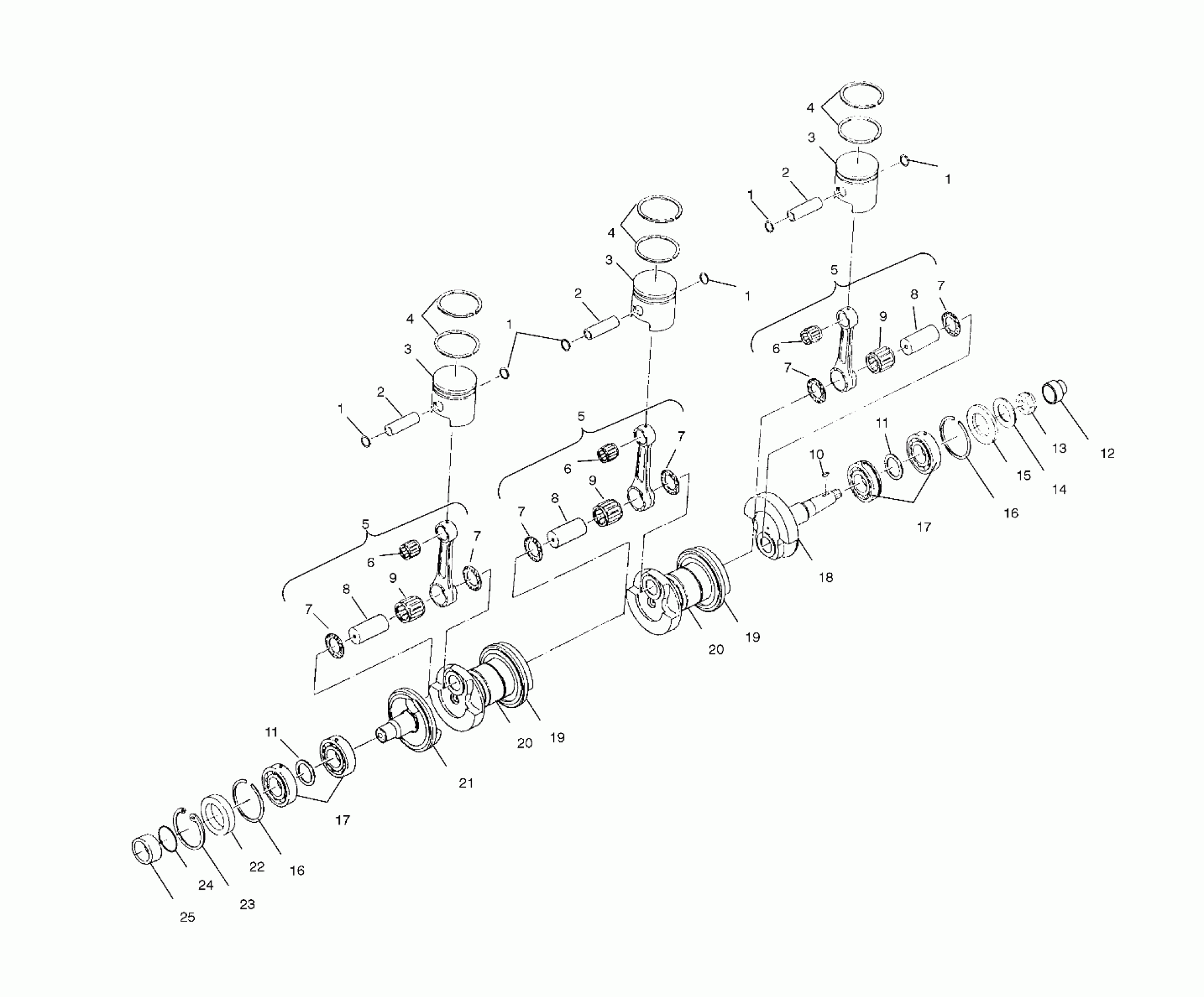

Polaris SLX - B994690 CRANKSHAFT & PISTON - I994690 (4951365136c003) Diagram

#

Description
Price

-

KIT,CRANKSHAFT,3CYL,PWC,MAPE Substituted by 2201431 (Incl. 5,7-9,11,17-21)

2201238

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

PIN,PISTON

3022953

Unavailable

2

PIN,PISTON

3022953

Unavailable

2

PIN,PISTON

3022953

Unavailable

3

KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.) (Incl.1,2,4)

2200921

Unavailable

3

KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl.1,2,4)

2200919

$226.99

3

KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)

2200920

Unavailable

3

KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.) (Incl.1,2,4)

2200921

Unavailable

3

KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl.1,2,4)

2200919

$226.99

3

KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)

2200920

Unavailable

3

KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.) (Incl.1,2,4)

2200921

Unavailable

3

KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl.1,2,4)

2200919

$226.99

3

KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)

2200920

Unavailable

4

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)

2200917

Unavailable

4

KIT,PISTONRING,81MM,STD,CKS (Std.)

2200918

Unavailable

4

KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)

2200916

$76.81

4

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)

2200917

Unavailable

4

KIT,PISTONRING,81MM,STD,CKS (Std.)

2200918

Unavailable

4

KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)

2200916

$76.81

4

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)

2200917

Unavailable

4

KIT,PISTONRING,81MM,STD,CKS (Std.)

2200918

Unavailable

4

KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)

2200916

$76.81

5

KIT,CONN.ROD,MAPE (Incl. 7-9)

2201022

$305.56

5

KIT,CONN.ROD,MAPE (Incl. 7-9)

2201022

$305.56

5

KIT,CONN.ROD,MAPE (Incl. 7-9)

2201022

$305.56

6

BEARING,CONNECT.ROD

3584001

Unavailable

6

BEARING,CONNECT.ROD

3584001

Unavailable

6

BEARING,CONNECT.ROD

3584001

Unavailable

7

Washer, Thrust (See Ref. 5)

----

Unavailable

7

Washer, Thrust (See Ref. 5)

----

Unavailable

7

Washer, Thrust (See Ref. 5)

----

Unavailable

7

Washer, Thrust (See Ref. 5)

----

Unavailable

7

Washer, Thrust (See Ref. 5)

----

Unavailable

7

Washer, Thrust (See Ref. 5)

----

Unavailable

8

Pin, Crankshaft (See Ref. 5)

----

Unavailable

8

Pin, Crankshaft (See Ref. 5)

----

Unavailable

8

Pin, Crankshaft (See Ref. 5)

----

Unavailable

9

Bearing, Connecting Rod (See Ref. 5)

----

Unavailable

9

Bearing, Connecting Rod (See Ref. 5)

----

Unavailable

9

Bearing, Connecting Rod (See Ref. 5)

----

Unavailable

10

KEY,WOODRUFF(10)

7721117

$29.99

11

BUSHING(10)

7555905

$3.99

11

BUSHING(10)

7555905

$3.99

12

COUPLER,PUMP DRIVE

5432576

Unavailable

13

Nut, Pump Drive (See Magneto Pg. C7, Ref. 11)

----

Unavailable

14

Washer (See Magneto Pg. C7, Ref. 10)

----

Unavailable

15

Seal

3610044

$24.27

16

RING,RETAINING,(10)

7710441

Unavailable

16

RING,RETAINING,(10)

7710441

Unavailable

17

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

17

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

18

CRANKWEB,MAG.

5131085

Unavailable

19

CRANKWEB,CTR,BIGBORE

5131084

$154.99

19

CRANKWEB,CTR,BIGBORE

5131084

$154.99

20

Labyrinth

5131086

Unavailable

20

Labyrinth

5131086

Unavailable

21

CRANKWEB,PTO,BIGBORE

5131083

$135.30

22

SEAL,TYPE BA SL

5411524

Unavailable

23

RING,RETAINING(10)

7710435

Unavailable

24

O RING,(10)

5410613

$1.98

25

COLLAR,CRANKSHAFT

5131195

Unavailable
