TRIM PACKAGE SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744B004)

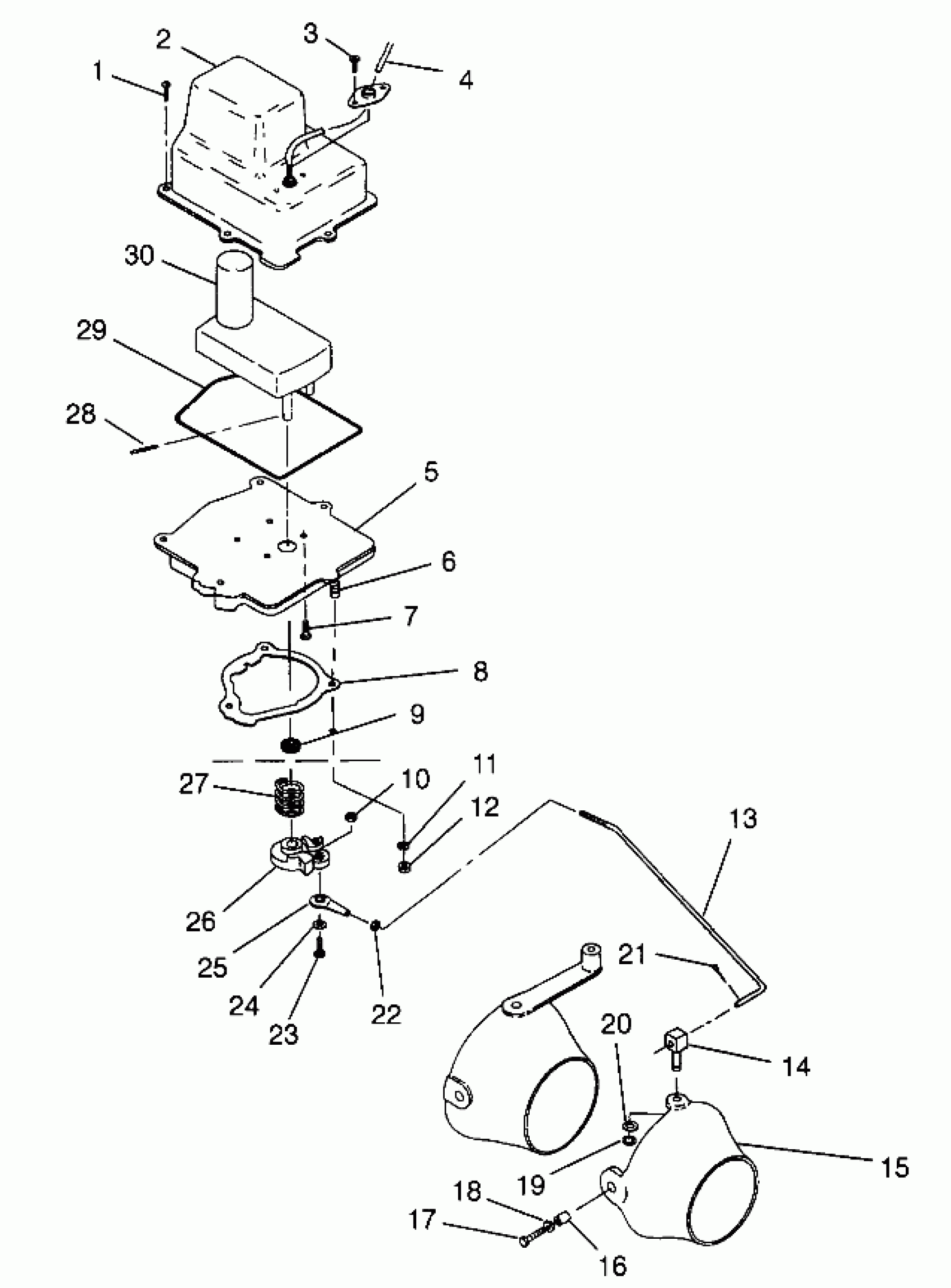

Polaris SLX 780 - B964287 TRIM PACKAGE SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744B004) Diagram
#
Description
Price
1
SCREW(10)
7512052
Unavailable
2
COVER,TRIM MTR.
5431551
Unavailable
3
SCREW(10)
7511873
Unavailable
4
HARNESS,TRIM
2460481
Unavailable
5
BASE, MOTOR Substituted by 5630798
5630543
Unavailable
6
STUD,S.S.(10)
5131050
Unavailable
7
SCREW(10)
7511872
Unavailable
8
GASKET, MOTOR BASE
5810818
Unavailable
9
SEAL, OIL
3610042
Unavailable
10
NUT, HEX, S.S.(10)
7541931
$4.79
11
WASHER, FLAT, S.S.(10)
7555839
Unavailable
12
NUT,NYLOK,S.S.(10)
7542133
Unavailable
13
LINKAGE,THREADED
5224670
Unavailable
14
SWIVEL, ROD END Substituted by 5131463
5130939
Unavailable
15
NOZZLE,TRIM
5431765
Unavailable
16
Collar
5130938
Unavailable
17
BOLT, S.S.(10)
7515361
Unavailable
18
WASHER,FLAT,S.S.(10)
7555874
$2.39
19
RING-E,RET.(10)
7710427
Unavailable
20
WASHER(10)
7555866
Unavailable
21
PIN, COTTER(10)
7661010
$1.49
22
NUT (10)
1860102
Unavailable
23
BOLT, S.S.(10)
7512041
Unavailable
24
WASHER, FLAT, S.S.(10)
7555837
Unavailable
25
ROD END, S.S.
7060154
Unavailable
26
LEVER, TRIM
5431550
Unavailable
27
SPRING,TRIM,HVY.
7041469
Unavailable
28
PIN, DRIVE Substituted by 7661418
7661417
Unavailable
29
O RING,MTR.COVER
5410756
Unavailable
30
GEAR ASM, MOTOR
4170004
Unavailable
