STEERING SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A013)

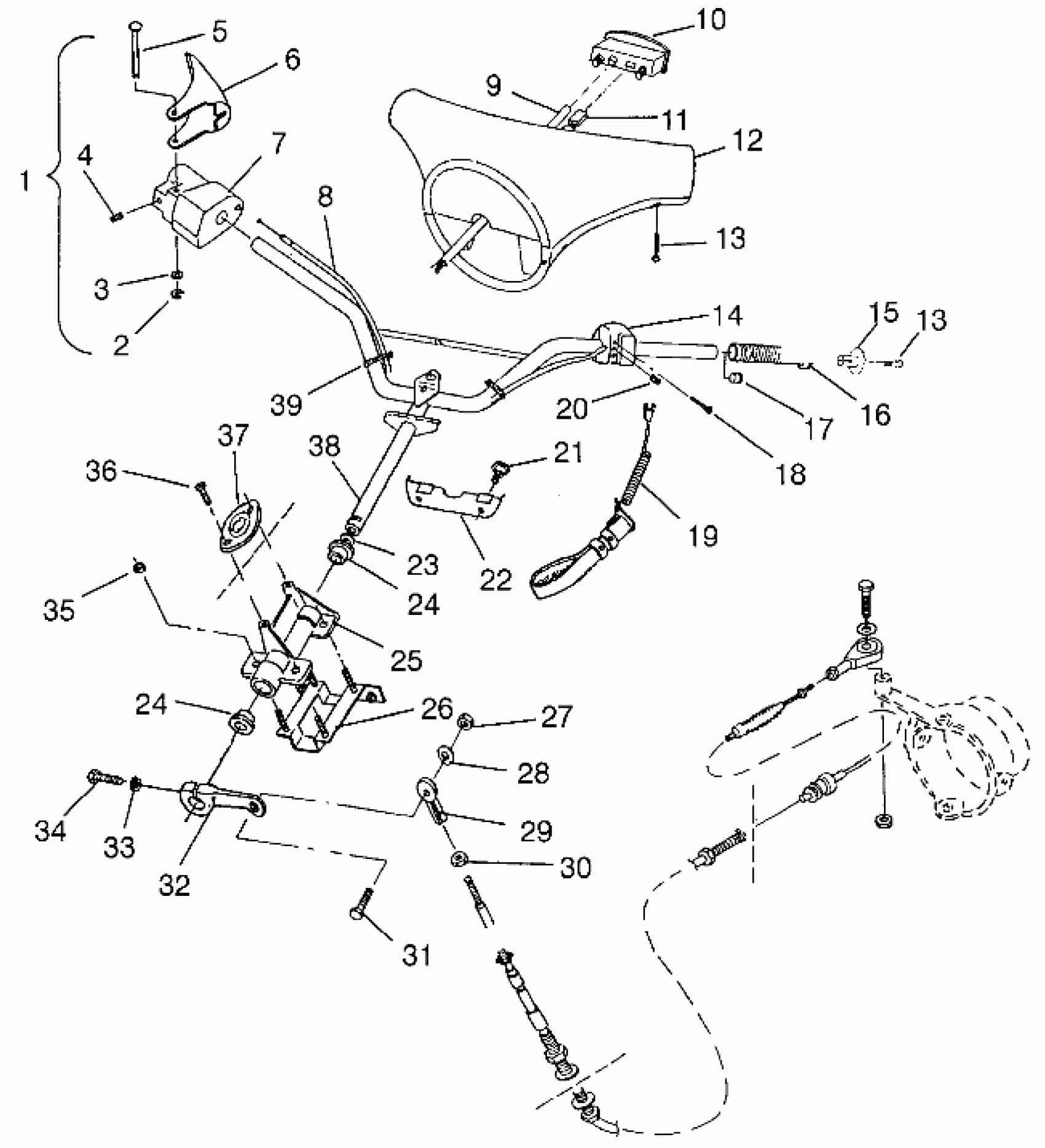

Polaris SLX 780 - B964287 STEERING SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A013) Diagram
#
1
THROTTLE CONTROL ASM. (Incl. 2-7)
2010122
Unavailable
2
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
3
WASHER, FLAT, S.S.(10)
7555840
$3.35
4
SCREW, SET, S.S.(10)
7515115
Unavailable
5
Pin, Retaining
7661628
Unavailable
6
LEVER,THROTTLE CONTROL
5431397
Unavailable
7
BLOCK,THROTTLE CONTROL
5431396
Unavailable
8
CABLE,THROTTLE
7080504
Unavailable
9
FUEL LINE,(427 CM.)
8450058-427
Unavailable
10
GAUGE,MULTI-FUNCTION
3280252
Unavailable
11
HARNESS,WIRE,MFD(SL)
2460518
Unavailable
12
PAD,H'BAR,P.RED
5431957-136
Unavailable
13
SCREW, SS.(10)
7512047
Unavailable
13
SCREW, SS.(10)
7512047
Unavailable
14
SWITCH,STOP/TRIM/TETHER
4110162
Unavailable
15
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
16
GRIP,H'BAR,P.RED
5410638-136
Unavailable
17
CAPLUG(10)
7080467
Unavailable
18
SCREW(10)
7516602
Unavailable
19
CORD, TETHER Substituted by 7080675
7080518
Unavailable
20
SCREW, S.S.(10)
7516601
Unavailable
21
BOLT,SHOULDER(10)
7515387
Unavailable
22
STOP, STEERING
5222677
Unavailable
23
BUSH.(10)
7555875
Unavailable
24
BUSHING,STRG.SUPPORT
5431382
Unavailable
24
BUSHING,STRG.SUPPORT
5431382
Unavailable
25
SUPPORT,STRG.HUB,BLK. Substituted by 5131509
5130974-067
Unavailable
26
PLATE, BOLT
1060101
Unavailable
27
NUT, HEX, S.S.(10)
7541931
$4.79
28
WASHER, FLAT, S.S.(10)
7555837
Unavailable
29
ROD END, S.S.
7060154
Unavailable
30
NUT (10)
1860102
Unavailable
31
BOLT, S.S.(10)
7512041
Unavailable
32
ARM,STEERING,BLK. Substituted by 5131441
5130958-067
Unavailable
33
WASHER, LOCK, S.S.(10)
7552610
Unavailable
34
BOLT, S.S.(10)
7515375
Unavailable
35
NUT, HEX, S.S.(10)
7542335
Unavailable
36
SCREW,S.S.(10)
7512074
Unavailable
37
BRKT, RECEIVER
5431427
Unavailable
38
POST,STEERING,W/H'BAR
1823175
Unavailable
39
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
