PROPULSION SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744B003)

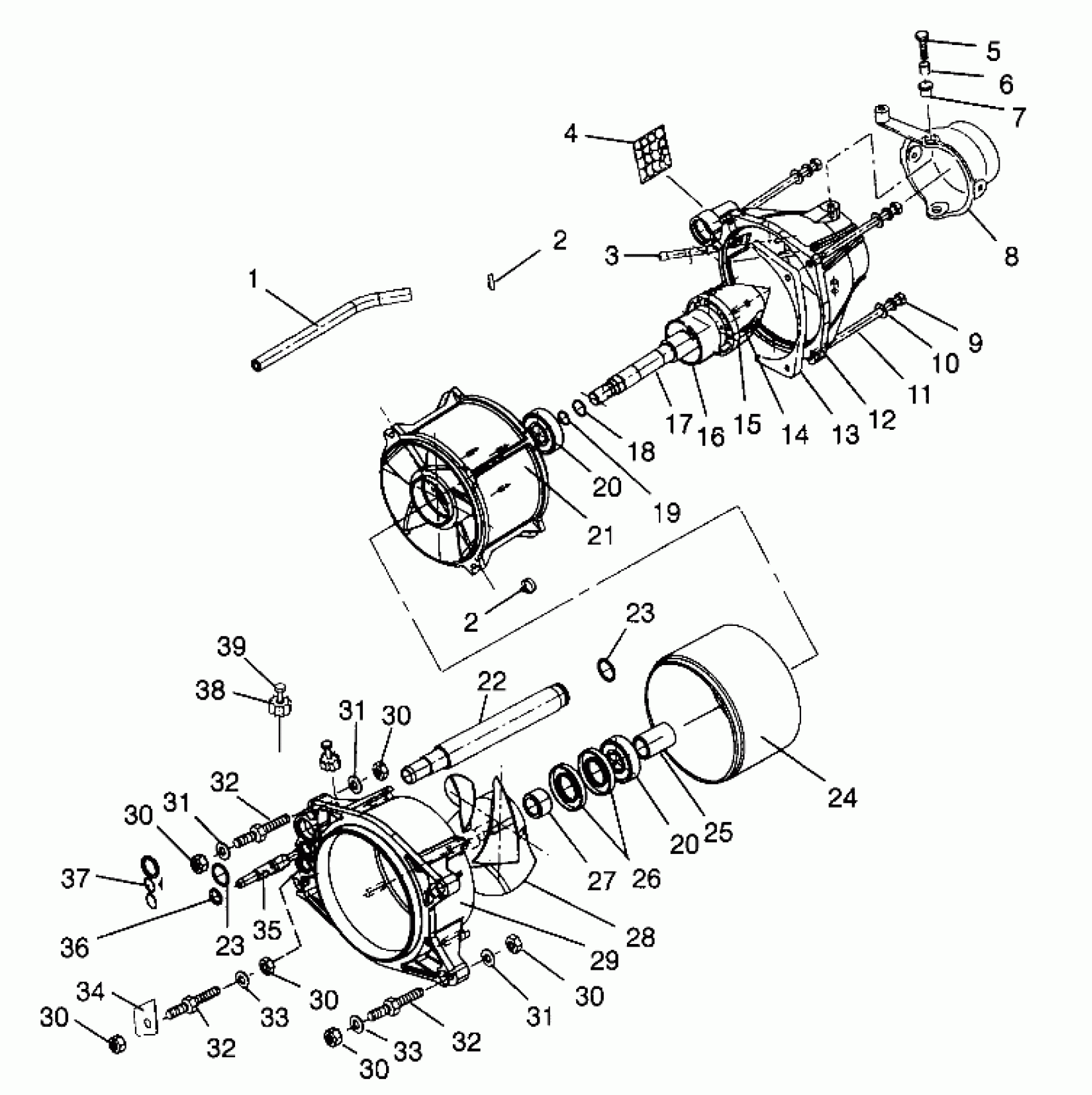

Polaris SLX 780 - B964287 PROPULSION SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744B003) Diagram
#
1
HOSE,WATER
8450054-100
Unavailable
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
3
TUBE,SIPHON,BILGE
5010293
Unavailable
4
SCREEN,ENG.INLET
5431523
Unavailable
5
BOLT, S.S.(10)
7515366
Unavailable
6
Collar
5130938
Unavailable
7
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
8
NOZZLE,STRG.REVERSE
5130960
Unavailable
9
WASHER, LOCK, S.S.(10)
7552610
Unavailable
10
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
11
Bolt
7515389
Unavailable
12
NOZZLE ASM,1 TUBE
1350021
Unavailable
13
WEDGE,PUMP,(SLX)
5630564
Unavailable
14
SCREW(10)
7512064
Unavailable
15
Cone, Pump
5431519
Unavailable
16
O-RING(10)
5410819
Unavailable
17
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
18
O-RING(10)
5410818
Unavailable
19
O-RING,(10)
5410817
Unavailable
20
Bearing
3514008
Unavailable
20
Bearing
3514008
Unavailable
21
STATOR,PUMP (Mach.)
5130983
Unavailable
22
PIPE,WATER,ENG.(MACH) (Mach.)
5131166
Unavailable
23
O RING,(10)
5410735
Unavailable
23
O RING,(10)
5410735
Unavailable
24
EXTENSION,PUMP
5131196
Unavailable
25
Spacer
5010294
Unavailable
26
SEAL,BRG,STATOR
3610043
Unavailable
27
Spacer, Impeller
5010295
Unavailable
28
IMPELLER,(15-20CUT,)3BLADE
5131371
Unavailable
29
HSG,PUMP,(148MM) Substituted by 5131815 (Mach.)
5131311
Unavailable
30
NUT,HEX,S.S.(10)
7542455
Unavailable
30
NUT,HEX,S.S.(10)
7542455
Unavailable
30
NUT,HEX,S.S.(10)
7542455
Unavailable
30
NUT,HEX,S.S.(10)
7542455
Unavailable
30
NUT,HEX,S.S.(10)
7542455
Unavailable
30
NUT,HEX,S.S.(10)
7542455
Unavailable
31
Washer
7555966
$2.63
31
Washer
7555966
$2.63
31
Washer
7555966
$2.63
32
STUD,MTG.PUMP Substituted by 5020880
5020804
Unavailable
32
STUD,MTG.PUMP Substituted by 5020880
5020804
Unavailable
32
STUD,MTG.PUMP Substituted by 5020880
5020804
Unavailable
33
WASHER, FLAT(10)
7555841
Unavailable
33
WASHER, FLAT(10)
7555841
Unavailable
34
BRKT,STRG.CABLE
5241741
Unavailable
35
PIPE,WATER BILGE (Flanged), SS
5020835
Unavailable
36
SEAL,SIPHON TUBE
5411016
Unavailable
37
SEAL,WATER PIPE
5411107
Unavailable
38
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
39
SCREW(10)
7522019
Unavailable
