FRONT STORAGE COMPARTMENT SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A008)

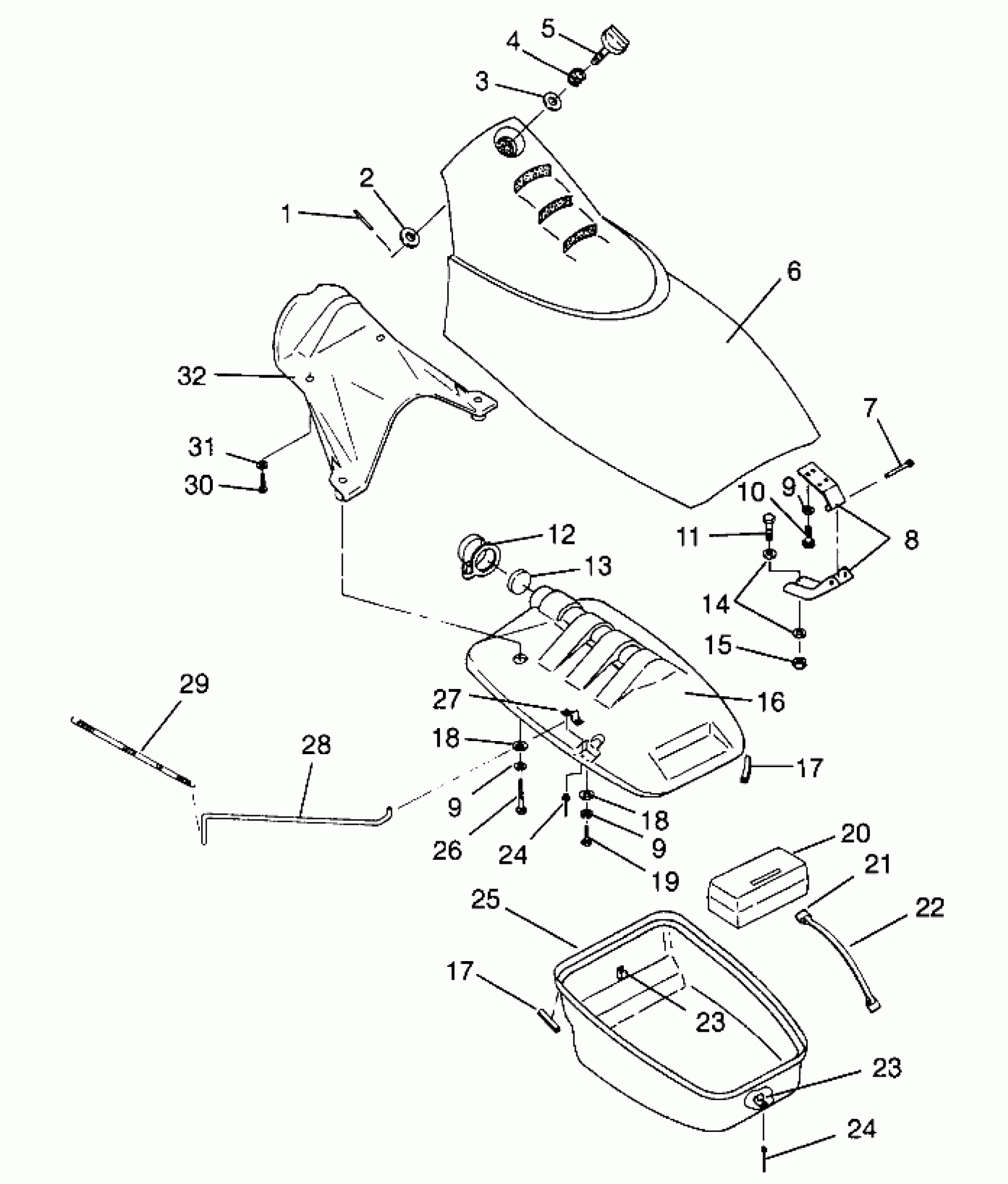

Polaris SLX 780 - B964287 FRONT STORAGE COMPARTMENT SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744A008) Diagram
#
1
PIN, GROOVED, S.S.(10)
7661630
Unavailable
2
CUSHION, VIBRATION
5810570
Unavailable
3
WASHER, WEAR
5431426
Unavailable
4
SPRING,COMPRESSION
7041275
Unavailable
5
KNOB,DOOR,COMP.
5431383-070
Unavailable
6
DOOR,COMP.,BLK. Substituted by 2201145
5431324-177
Unavailable
7
PIN, HINGE Substituted by 2635012
7661629
Unavailable
8
HINGE ASM,COMPARTMENT
2635012
Unavailable
9
WASHER, LOCK, S.S.(10)
7555838
Unavailable
9
WASHER, LOCK, S.S.(10)
7555838
Unavailable
9
WASHER, LOCK, S.S.(10)
7555838
Unavailable
10
BOLT, S.S.(10)
7515121
Unavailable
11
BOLT, S.S.
7515365
Unavailable
12
CAP,FIRE EXT.,YELLOW
5431398-053
Unavailable
13
PAD,FOAM,FIRE EXT.
5810799
Unavailable
14
WASHER, FLAT, S.S.(10)
7555831
Unavailable
15
NUT, HEX, S.S.(10)
7542335
Unavailable
16
LID,BCKT,FR.STORAGE Substituted by 5432579
5431489
Unavailable
17
SEAL,FR.STORAGE BKT.
5521252
Unavailable
17
SEAL,FR.STORAGE BKT.
5521252
Unavailable
18
WASHER, FLAT, S.S.(10)
7555839
Unavailable
18
WASHER, FLAT, S.S.(10)
7555839
Unavailable
19
BOLT(10)
7515127
Unavailable
20
BOX, TOOL
5431508
Unavailable
21
HOOK,'D',SST/SS,(10)
5224472
$2.19
22
STRAP-BATTERY
5430621
$20.22
23
Clip
5240187
Unavailable
23
Clip
5240187
Unavailable
24
RIVET
7621478
Unavailable
24
RIVET
7621478
Unavailable
25
BUCKET,FR.STORAGE Substituted by 5432526
5431394
Unavailable
26
BOLT(10)
7515130
Unavailable
27
RETAINER,DOOR SUPPORT
5222782
Unavailable
28
SUPPORT,DOOR,COMPART.
5224471
Unavailable
29
SPRING,DOOR SUPPORT
7042038
Unavailable
30
SCREW(10)
7512049
Unavailable
31
WASHER, FLAT, S.S.(10)
7555837
Unavailable
32
BAFFLE,AIR INTAKE
5431546
Unavailable
