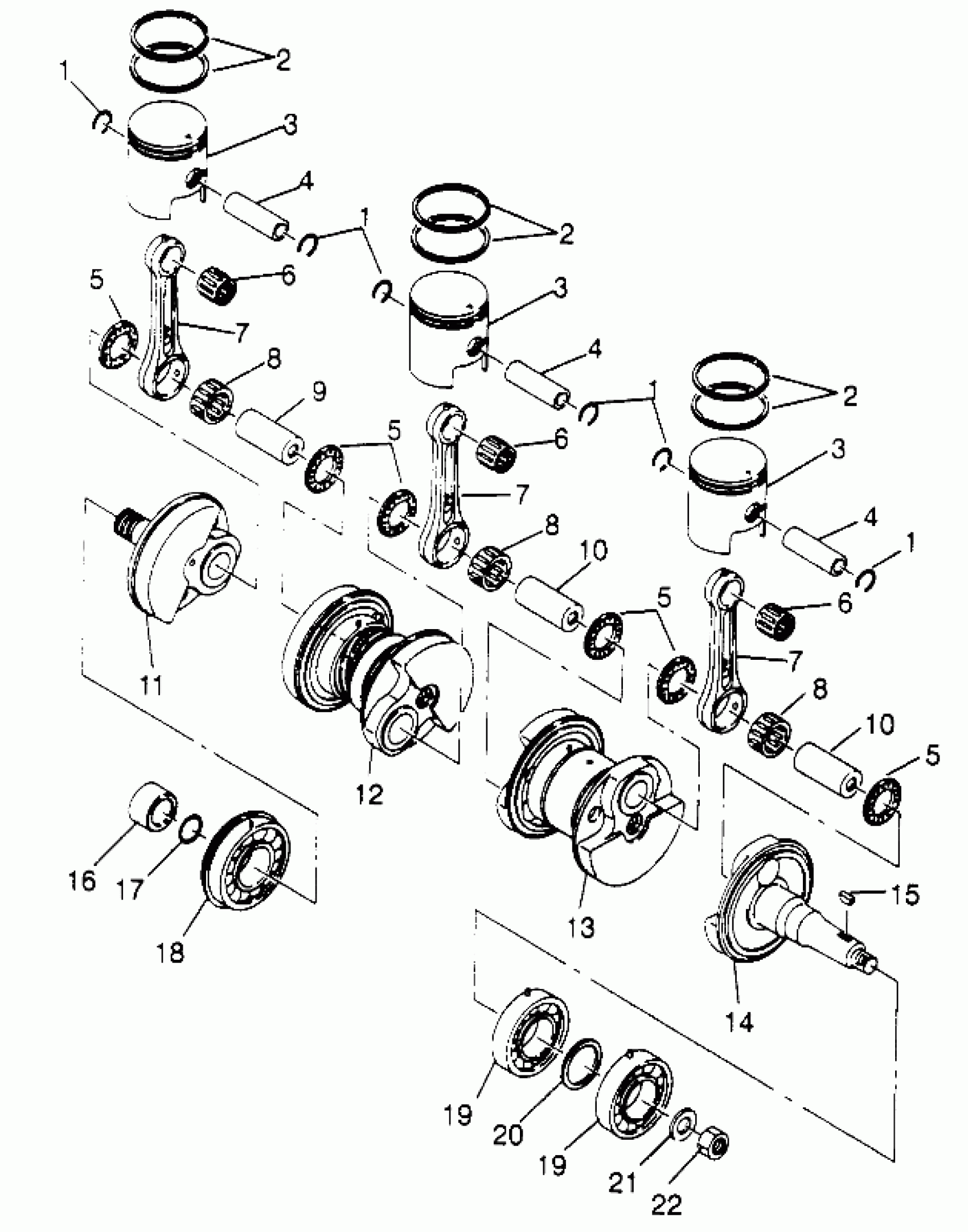

Polaris SLX 780 - B964287 CRANKSHAFT & PISTON SLX 780 B964287 and Intl. SLX 780 I964287 (4937443744C003) Diagram

#

Description
Price

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

2

RING,PISTON,(.25MM O/S)

3240264

Unavailable

2

RING,PISTON,(.50MM O/S)

3240265

Unavailable

2

RING,PISTON,STD.

3240263

Unavailable

2

RING,PISTON,(.25MM O/S)

3240264

Unavailable

2

RING,PISTON,(.50MM O/S)

3240265

Unavailable

2

RING,PISTON,STD.

3240263

Unavailable

2

RING,PISTON,(.25MM O/S)

3240264

Unavailable

2

RING,PISTON,(.50MM O/S)

3240265

Unavailable

2

RING,PISTON,STD.

3240263

Unavailable

3

PISTON,(0.50MM O/S)

3240262

Unavailable

3

PISTON,(0.25MM O/S)

3240261

Unavailable

3

PISTON, STD.

3240260

Unavailable

3

PISTON,(0.50MM O/S)

3240262

Unavailable

3

PISTON,(0.25MM O/S)

3240261

Unavailable

3

PISTON, STD.

3240260

Unavailable

3

PISTON,(0.50MM O/S)

3240262

Unavailable

3

PISTON,(0.25MM O/S)

3240261

Unavailable

3

PISTON, STD.

3240260

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

6

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

6

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

7

ROD, CONNECTING

3240083

$1,634.99

7

ROD, CONNECTING

3240083

$1,634.99

7

ROD, CONNECTING

3240083

$1,634.99

8

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

9

PIN, CRANK

3240085

Unavailable

10

PIN-CRANK 2

3083254

Unavailable

10

PIN-CRANK 2

3083254

Unavailable

11

CRANKSHAFT 3

3240082

Unavailable

12

CRANKSHAFT 2 Substituted by 3240184 (Incl. 9)

3240081

Unavailable

13

CRANKSHAFT, CTR. (Incl. 5, 7-10, 12)

3240079

Unavailable

13

CRANKSHAFT,MAG SIDE (Incl. 10)

3240080

Unavailable

14

CRANKSHAFT 1

3240167

Unavailable

14

CRANKSHAFT,(SL750&650) (Incl. 5, 7-14, 18-20)

3240184

Unavailable

15

KEY, WOODRUFF,(10)

3240168

$19.99

16

RING, WEAR

3240089

Unavailable

17

O-RING

3240090

Unavailable

18

BEARING, BALL

3084545

Unavailable

19

BEARING, BALL

3084544

Unavailable

19

BEARING, BALL

3084544

Unavailable

20

SPACER

3240088

$10.39

21

Washer

3084457

Unavailable

22

NUT

3083093

$19.99
