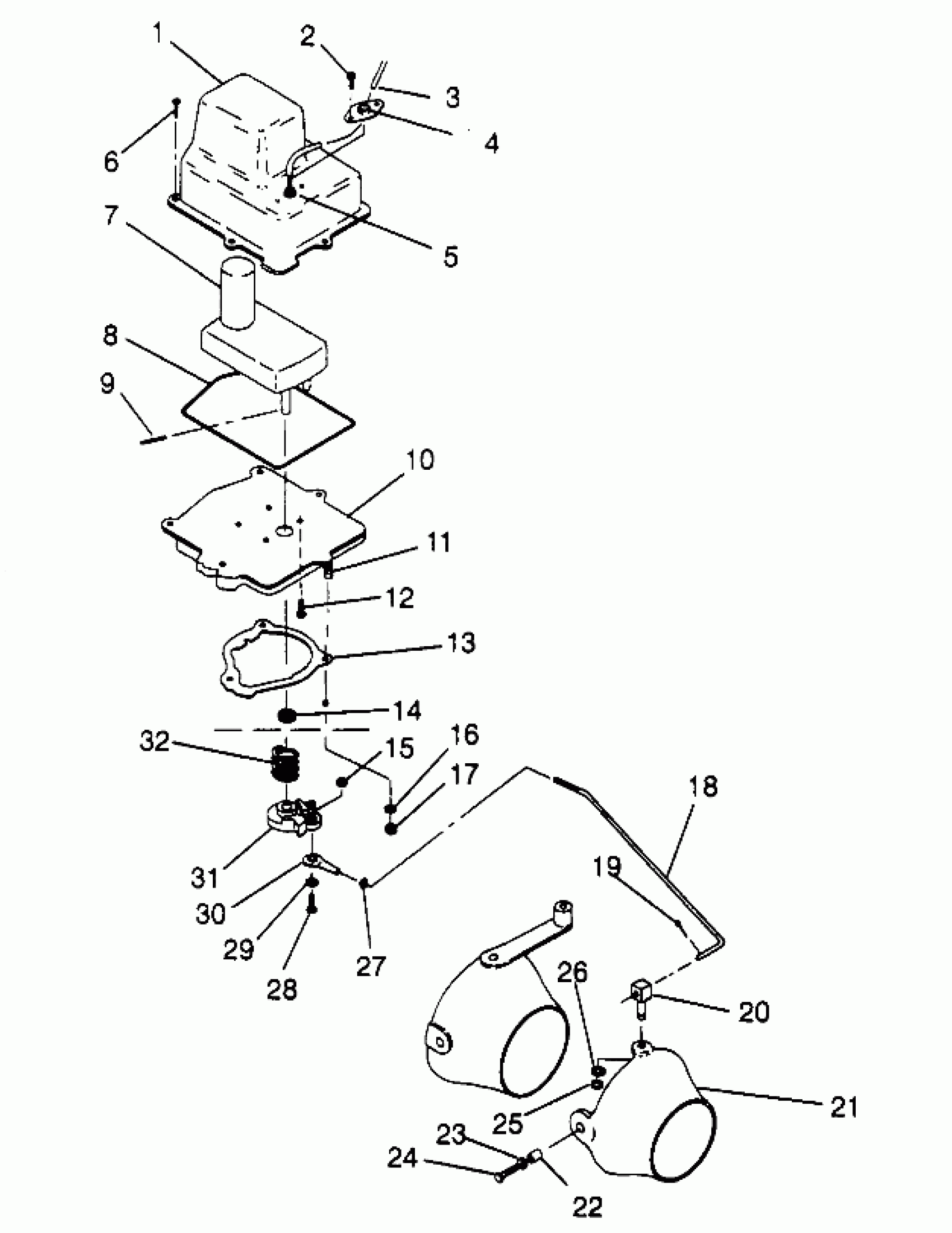

Polaris SLX 780 - B954287 TRIM PACKAGE SLX 780 B954287 (4933953395B004) Diagram

#

Description
Price

1

COVER,TRIM MTR.

5431551

$77.99

2

SCREW(10)

7511873

Unavailable

3

HARNESS,TRIM

2460481

Unavailable

4

GROMMET,TRIM MOTOR

5410771

Unavailable

5

GROMMET,TRIM INDIC.

5410778

$1.19

6

SCREW(10)

7512052

Unavailable

7

GEAR ASM, MOTOR

4170004

Unavailable

8

O RING,MTR.COVER

5410756

Unavailable

9

PIN, DRIVE Substituted by 7661418

7661417

Unavailable

10

BASE, MOTOR Substituted by 5630798

5630543

$54.99

11

STUD,S.S.(10)

5131050

$6.99

12

SCREW(10)

7511872

$2.54

13

GASKET, MOTOR BASE

5810818

Unavailable

14

SEAL, OIL

3610042

Unavailable

15

NUT, HEX, S.S.(10)

7541931

$5.99

16

WASHER, FLAT, S.S.(10)

7555839

Unavailable

17

NUT,NYLOK,S.S.(10)

7542133

Unavailable

18

LINKAGE,THREADED

5224670

Unavailable

19

PIN, COTTER(10)

7661010

$1.19

20

SWIVEL, ROD END Substituted by 5131463

5130939

Unavailable

21

NOZZLE,TRIM

5431765

Unavailable

22

Collar

5130938

Unavailable

23

WASHER,FLAT,S.S.(10)

7555874

$2.38

24

BOLT, S.S.(10)

7515361

$2.19

25

RING-E,RET.(10)

7710427

Unavailable

26

WASHER(10)

7555866

Unavailable

27

NUT (10)

1860102

Unavailable

28

BOLT, S.S.(10)

7512041

$2.54

29

WASHER, FLAT, S.S.(10)

7555837

$1.59

30

ROD END, S.S.

7060154

Unavailable

31

LEVER, TRIM

5431550

$10.63

32

SPRING,TRIM,HVY.

7041469

Unavailable
