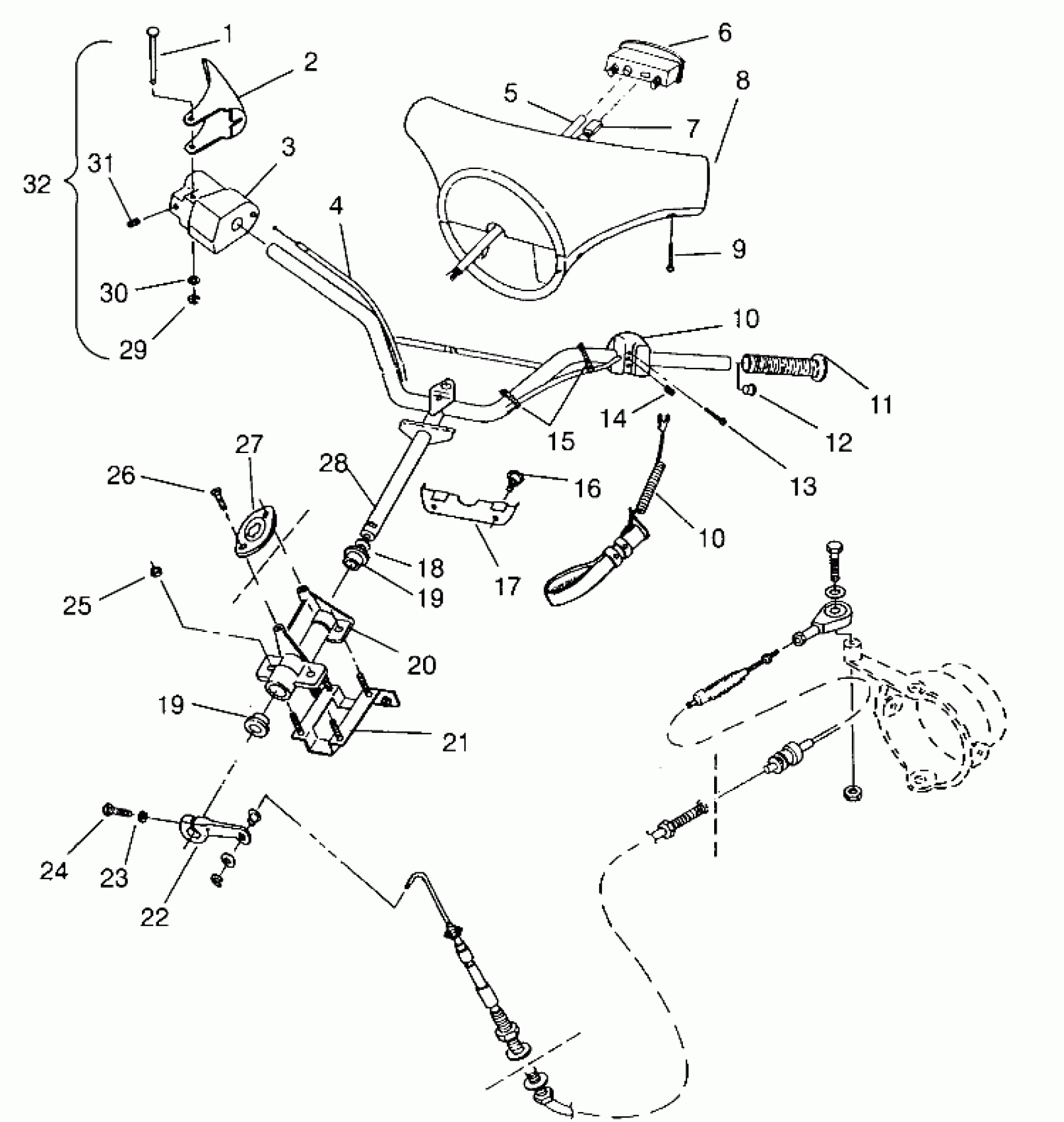

Polaris SLX 780 - B954287 STEERING ASSEMBLY SLX 780 B954287 (4933953395A013) Diagram

#

Description
Price

1

Pin, Retaining

7661628

Unavailable

2

LEVER,THROTTLE CONTROL

5431397

Unavailable

3

BLOCK,THROTTLE CONTROL

5431396

Unavailable

4

CABLE,THROTTLE

7080504

$102.99

5

LINE,FUEL Substituted by 8450058-277

8450058-235

Unavailable

6

GAUGE,MULTI-FUNCTION Substituted by 3280252

3280202

Unavailable

7

HARNESS,WIRE,MFD(SL)

2460518

Unavailable

8

PAD,H'BAR,P.RED

5431957-136

Unavailable

9

SCREW, SS.(10)

7512047

$1.99

10

SWITCH,STOP/TRIM/TETHER

4110162

Unavailable

10

SWITCH,STOP/TRIM/TETHER

4110162

Unavailable

11

GRIP,H'BAR,PURP.VELVET Substituted by 5410638-214

5410638-194

Unavailable

12

CAPLUG(10)

7080467

Unavailable

13

SCREW(10)

7516602

$3.33

14

SCREW, S.S.(10)

7516601

$3.17

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

BOLT,SHOULDER(10)

7515387

Unavailable

17

STOP, STEERING

5222677

Unavailable

18

BUSH.(10)

7555875

$7.94

19

BUSHING,STRG.SUPPORT

5431382

Unavailable

19

BUSHING,STRG.SUPPORT

5431382

Unavailable

20

SUPPORT,STRG.HUB,BLK. Substituted by 5131509

5130974-067

Unavailable

21

PLATE, BOLT

1060101

Unavailable

22

ARM, STRG.

5131127

Unavailable

23

WASHER, LOCK, S.S.(10)

7552610

Unavailable

24

BOLT, S.S.(10)

7515375

$3.81

25

NUT, HEX, S.S.(10)

7542335

Unavailable

26

SCREW,S.S.(10)

7512074

$0.89

27

BRKT, RECEIVER

5431427

Unavailable

28

POST,STEERING,W/H'BAR

1823175

Unavailable

29

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

30

WASHER, FLAT, S.S.(10)

7555840

$3.33

31

SCREW, SET, S.S.(10)

7515115

Unavailable

32

THROTTLE CONTROL ASM. (Incl. 1-3, 29-31)

2010122

Unavailable
