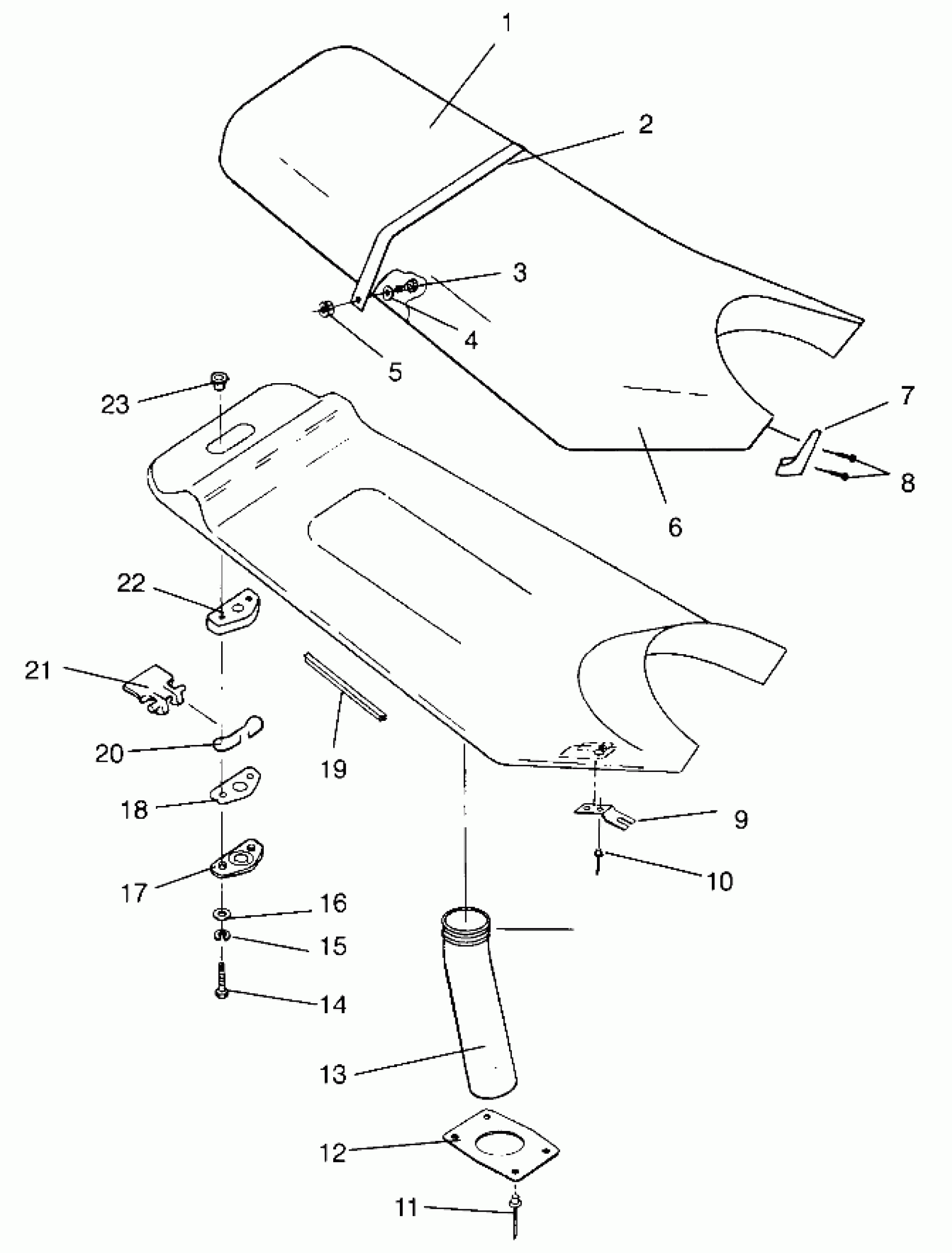

Polaris SLX 780 - B954287 SEAT ASSEMBLY SLX 780 B954287 (4933953395A011) Diagram

#

Description

Price

1

SEAT ASM,P.RED (Incl. 6, 14-23)

2681725-136

Unavailable

2

STRAP,SEAT,P.RED

2690095-136

Unavailable

3

SCREW(10) Substituted by 7512052

7512055

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

NUT, WELD

7541935

Unavailable

6

COVER,SEAT,P.RED

2681726-136

Unavailable

7

SHIELD,LH SEAT,P.RED

5432124-136

Unavailable

7

SHIELD,RH SEAT,P.RED

5432125-136

Unavailable

8

SCREW(10)

7512089

Unavailable

9

CLIP,SEAT RETAINER

5222694

Unavailable

10

RIVET(50)

7661834

$5.99

11

RIVET(50)

7621479

$1.99

12

PLATE, RETAINER

5211347

Unavailable

13

DUCT, AIR OUTLET

5431369

Unavailable

14

BOLT, SS.(10)

7515123

Unavailable

15

WASHER, LOCK, S.S.(10)

7555838

Unavailable

16

WASHER, FLAT, S.S.(10)

7555839

Unavailable

17

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

18

PLATE,SEATBASE LATCH

5211314

Unavailable

19

SEAL, SEAT

5521348

Unavailable

20

SPRING,SEATBASE LATCH

7042036

Unavailable

21

HANDLE, SEAT

5431358

Unavailable

22

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

23

NUT, TEE(10)

7542137

Unavailable
