Description

Price

1

HOSE,WATER

8450054-100

Unavailable

2

O-RING(10)

5410819

$0.79

2

O-RING(10)

5410819

$0.79

3

EXTENSION,TAILCONE,3/4"

5131245

Unavailable

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

TUBE,SIPHON,BILGE

5010293

$29.52

6

SCREEN,ENG.INLET

5431523

Unavailable

7

BOLT, S.S.(10)

7515366

Unavailable

8

Collar

5130938

Unavailable

9

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

10

NOZZLE,STRG.REVERSE

5130960

Unavailable

11

WASHER, LOCK, S.S.(10)

7552610

Unavailable

12

WASHER, FLAT, S.S.,(10)

7555835

$0.69

13

Bolt

7515389

Unavailable

14

NOZZLE ASM,PUMP,(SLX)

1350013

Unavailable

15

WEDGE,PUMP,(SLX)

5630564

Unavailable

16

WASHER, LOCK(10)

7552615

Unavailable

16

SCREW,S.S.,ALLEN(10)

7512090

$1.75

16

WASHER, FLAT(10)

7555861

$1.27

17

Cone, Pump

5431519

Unavailable

18

SHAFT, STUB Substituted by 5132674

5020697

$47.62

19

O-RING(10)

5410818

$0.79

20

O-RING,(10)

5410817

Unavailable

21

Bearing

3514008

Unavailable

21

Bearing

3514008

Unavailable

22

STATOR,PUMP (Mach.)

5130983

Unavailable

23

O RING,(10)

5410735

$0.79

23

O RING,(10)

5410735

$0.79

24

PIPE,WATER,ENG.(MACH) (Mach.)

5131166

$61.99

25

EXTENSION,PUMP

5131196

$204.99

26

Spacer

5010294

Unavailable

27

SEAL,BRG,STATOR

3610043

Unavailable

28

Spacer, Impeller

5010295

Unavailable

29

IMPELLER,SL750

5131079

Unavailable

30

HOUSING,PUMP,(SLX) (Mach.)

5131170

$93.65

31

NUT,HEX,S.S.(10)

7542455

Unavailable

31

NUT,HEX,S.S.(10)

7542455

Unavailable

32

WASHER, FLAT(10)

7555841

Unavailable

33

STUD,MTG.PUMP Substituted by 5020880

5020804

Unavailable

34

WASHER,FLAT, S.S.(10)

7555853

$2.62

35

SEAL,SIPHON TUBE

5411016

Unavailable

36

PIPE,WATER BILGE (Flanged), SS

5020835

$49.59

37

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

38

SCREW(10)

7522019

$0.95

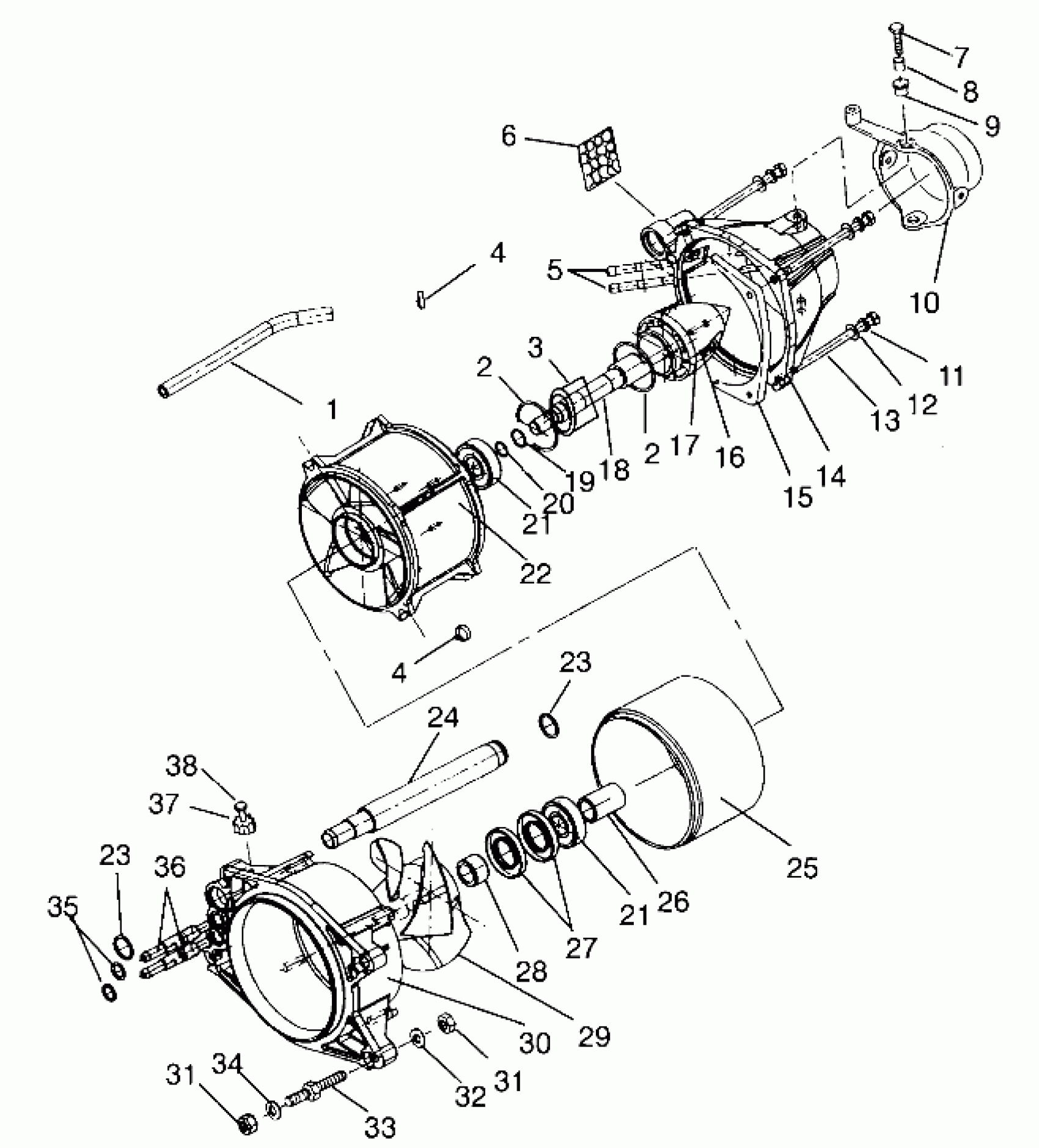

Polaris SLX 780 - B954287 PROPULSION SLX 780 B954287 (4933953395B003) Diagram

HOSE,WATER

O-RING(10)

O-RING(10)

EXTENSION,TAILCONE,3/4"

CABLE-TIE,DIA12-50MM,WTHR-RES.

CABLE-TIE,DIA12-50MM,WTHR-RES.

TUBE,SIPHON,BILGE

SCREEN,ENG.INLET

BOLT, S.S.(10)

Collar

BRG,STRG.NOZZLE,(10)

NOZZLE,STRG.REVERSE

WASHER, LOCK, S.S.(10)

WASHER, FLAT, S.S.,(10)

Bolt

NOZZLE ASM,PUMP,(SLX)

WEDGE,PUMP,(SLX)

WASHER, LOCK(10)

SCREW,S.S.,ALLEN(10)

WASHER, FLAT(10)

Cone, Pump

SHAFT, STUB Substituted by 5132674

O-RING(10)

O-RING,(10)

Bearing

Bearing

STATOR,PUMP (Mach.)

O RING,(10)

O RING,(10)

PIPE,WATER,ENG.(MACH) (Mach.)

EXTENSION,PUMP

Spacer

SEAL,BRG,STATOR

Spacer, Impeller

IMPELLER,SL750

HOUSING,PUMP,(SLX) (Mach.)

NUT,HEX,S.S.(10)

NUT,HEX,S.S.(10)

WASHER, FLAT(10)

STUD,MTG.PUMP Substituted by 5020880

WASHER,FLAT, S.S.(10)

SEAL,SIPHON TUBE

PIPE,WATER BILGE (Flanged), SS

ANODE-ZINC Substituted by 2200745

SCREW(10)
