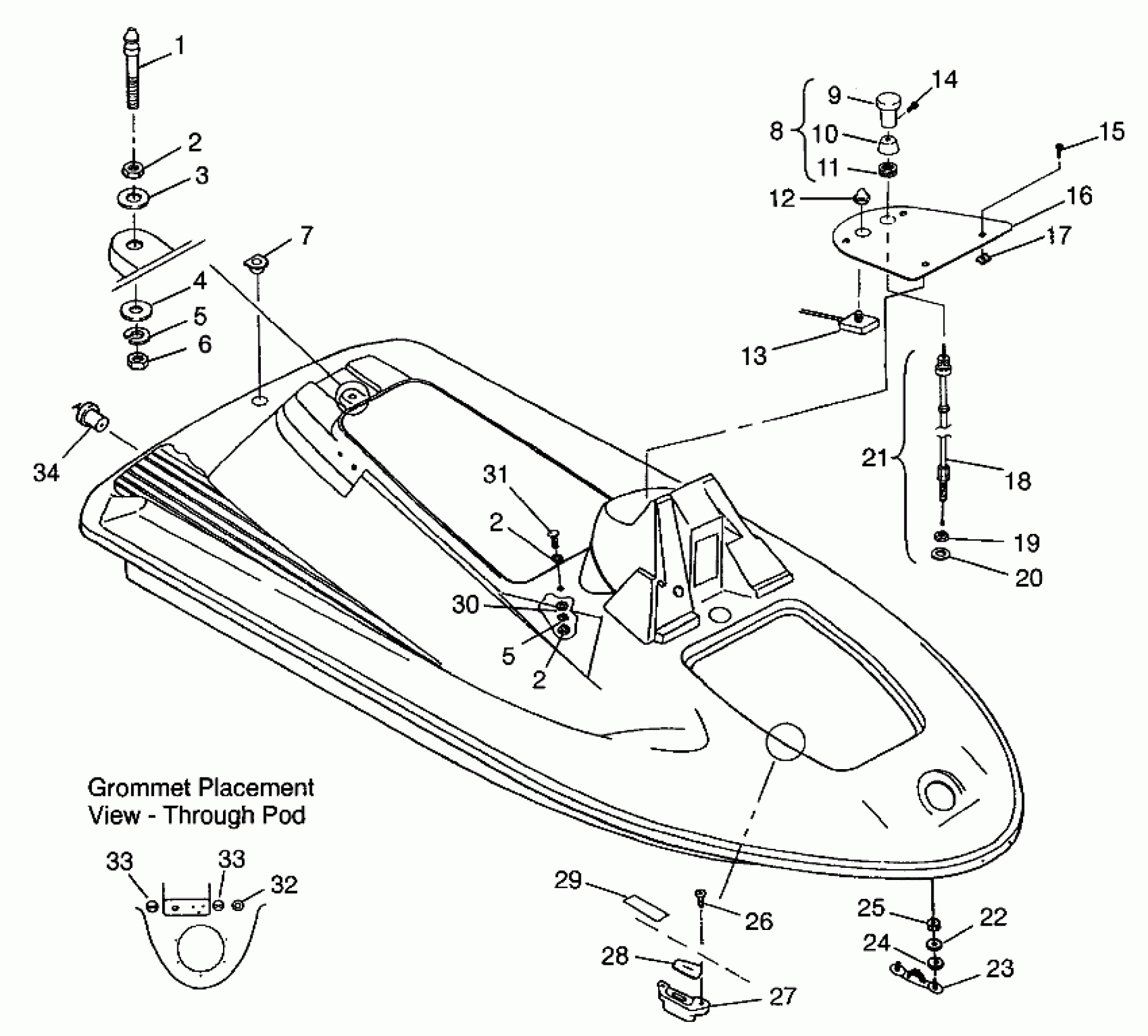

Polaris SLX 780 - B954287 HULL and BODY SLX 780 B954287 (4933953395A006) Diagram

#

Description
Price

1

PLUNGER,LATCH

5020753

Unavailable

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

2

NUT, HEX, S.S.,(10)

7542454

Unavailable

3

WASHER, FLAT(10)

7555845

Unavailable

4

WASHER, FLAT(10)

7555846

$5.56

5

WASHER, LOCK, S.S.(10)

7552607

$1.39

5

WASHER, LOCK, S.S.(10)

7552607

$1.39

6

NUT,HEX,S.S.(10)

7542455

Unavailable

7

EYELET,R.PURP.VELVET

5431404-194

$9.90

8

KIT, CHOKE, (PWC) (Incl. 9-11, 14)

2200428

Unavailable

9

KNOB,CHOKE

2080004

$9.05

10

COVER

2080003

Unavailable

11

NUT

2080002

$2.06

12

NUT,WATERPROOF,STARTER SWITCH

7080513

Unavailable

13

SWITCH,STARTER

4110163

$75.40

14

Screw

2080005

$0.69

15

SCREW, SS.(10)

7512047

$1.99

16

PANEL,INST,BLK.

5431783-070

Unavailable

17

CLIP,'U',S.S.(10)

7670077

$1.27

18

CABLE,CHOKE

7080505

$53.17

19

NUT

2010125

$0.71

20

WASHER

2010126

Unavailable

21

CONTROL ASM,CHOKE (Incl. 9-11, 14, 18)

2080011

Unavailable

22

WASHER, FLAT, S.S.(10)

7555839

Unavailable

23

STRAP, BOW

2670150

$49.21

24

WASHER,RUBBER(10)

7555870

$0.40

25

NUT,NYLOK,S.S.(10)

7542133

Unavailable

26

SCREW(10)

7512049

Unavailable

27

STOP,DOOR SUPPORT

5431960

Unavailable

28

SEAL,DOOR SUPPORT

5810571

Unavailable

29

DECAL,DOOR,COMPARTMENT

7073717

Unavailable

30

WASHER, FLAT(10)

7555841

Unavailable

31

BOLT,SPECIAL,SS.(10)

7515518

$31.99

32

GROMMET,BOOT

5410990

$2.62

33

GROMMET,BOOT

5410989

$2.62

33

GROMMET,BOOT

5410989

$2.62

34

PLUG, BAIL

7010046

Unavailable
