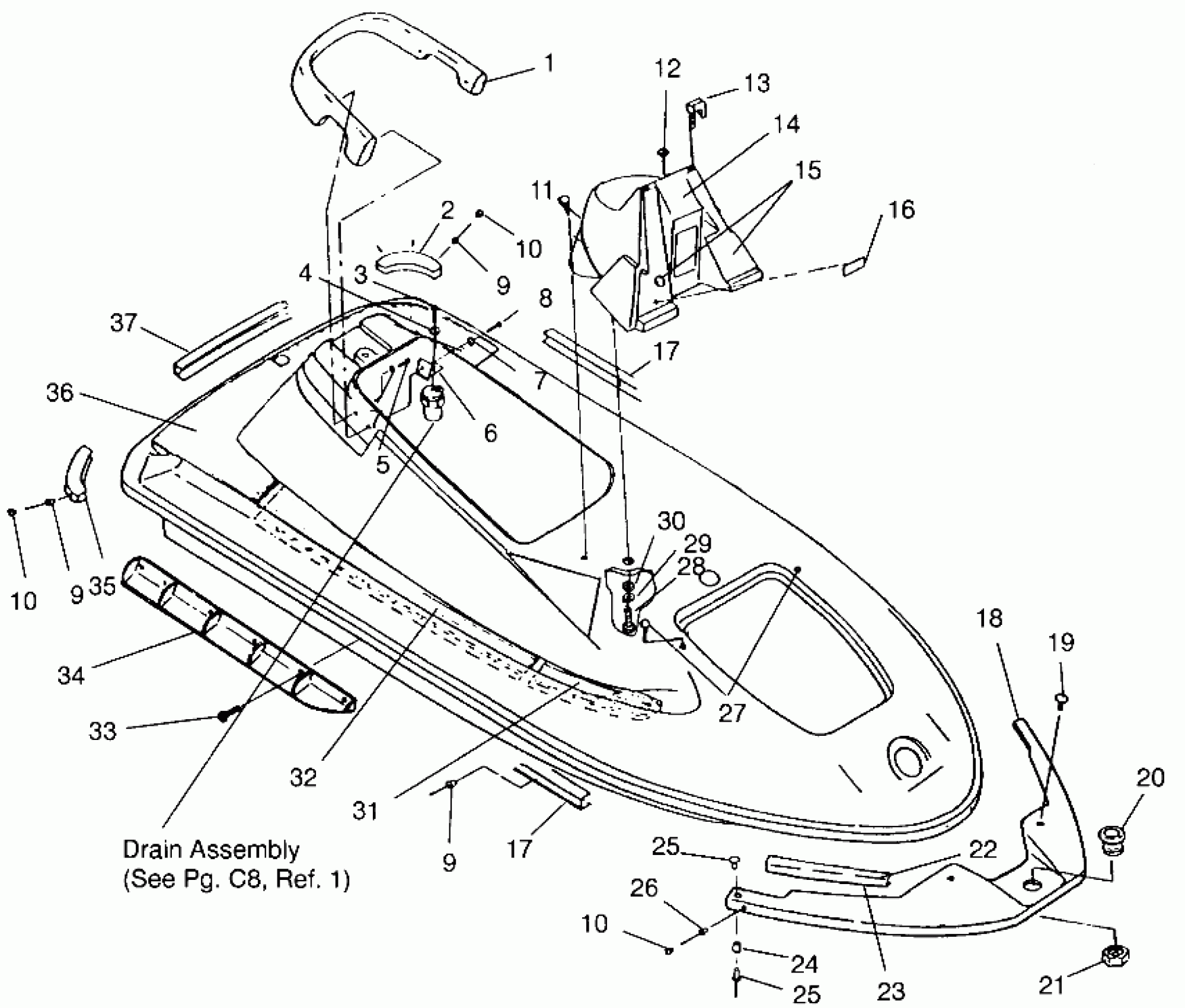

Polaris SLX 780 - B954287 HULL and BODY ASSEMBLY SLX 780 B954287 (4933953395A005) Diagram

#

Description
Price

1

HANDLE,GRAB,P.RED Substituted by 2200783-136

5431729-136

$123.99

2

BUMPER,LH,R.,PUR.VEL. Substituted by 2201026-194

5431561-194

Unavailable

3

SCREW, S.S.(10)

7516805

$0.71

4

WASHER, LOCK(10)

7552613

Unavailable

5

SCREW, S.S.(10)

7515141

$1.37

6

BRKT,SEPARATOR,WATER

5431825

Unavailable

7

WASHER, FLAT, S.S.(10)

7555839

Unavailable

8

SCREW(10)

7517103

$2.60

9

RIVET(50)

7621480

Unavailable

9

RIVET(50)

7621480

Unavailable

9

RIVET(50)

7621480

Unavailable

10

PLUG,R.BUMP,PUR.VEL.

5431994-194

$3.97

10

PLUG,R.BUMP,PUR.VEL.

5431994-194

$3.97

10

PLUG,R.BUMP,PUR.VEL.

5431994-194

$3.97

11

CLIP, XMASTREE(10)

7080514

$1.19

12

GROMMET

5410720

$5.71

13

BUMPER,CORNER

5431740

$11.39

14

POD,STRG,NOTCH,BLK.MET. Substituted by 5433124-177

5432146-177

Unavailable

15

Grommet, Vent (See Pg., Ref. , Pg. , Ref. )

----

Unavailable

16

DECAL,RECOMMENDED OIL

7074959

Unavailable

17

RAIL,RUB,SIDE,PURP.VELVET

5521309-194

Unavailable

17

RAIL,RUB,SIDE,PURP.VELVET

5521309-194

Unavailable

18

BUMPER,FR,PURP.VEL. Substituted by 5410945-214

5410945-194

Unavailable

19

CLIP-DART,PURP.VELVET(10) Substituted by 7670084-214

7670084-194

$3.79

20

GROMMET,BOW EYE,PURP.VIOLET

5431950-194

Unavailable

21

NUT,BOW EYE,PURP.VIOLET

5431951-194

Unavailable

22

DESC NOT_AVAILABLE

9810348

Unavailable

23

CHANNEL,'U'

5432154

$5.71

24

SPACER,FR.BUMPER

5431474

$2.38

25

FASTENER,2PC,(10)

7621506

Unavailable

25

FASTENER,2PC,(10)

7621506

Unavailable

26

RIVET(50)

7621511

Unavailable

27

BUMPER,DECK

5431741

Unavailable

28

BOLT(10)

7515127

Unavailable

29

WASHER, LOCK, S.S.(10)

7555838

Unavailable

30

WASHER,S.S.(10)

7555891

$1.50

31

PAD,FRT,PURP.VEL.

5811089-194

Unavailable

32

PAD,CTR,PURP.VEL. Substituted by 5811315-194

5811088-194

Unavailable

33

BOLT(10)

7515392

Unavailable

34

SPONSON,LH,PUR,VEL.

5432066-194

Unavailable

34

SPONSON,RH,PUR,VEL.

5432067-194

$38.41

35

BUMPER,RH,R.,PUR.VEL. Substituted by 2201026-194

5431562-194

Unavailable

36

PAD,R.FOOTWELL,PURP.VELVET

5810549-194

Unavailable

37

RAIL,RUB,REAR,PURP.VELVET

5521310-194

Unavailable
