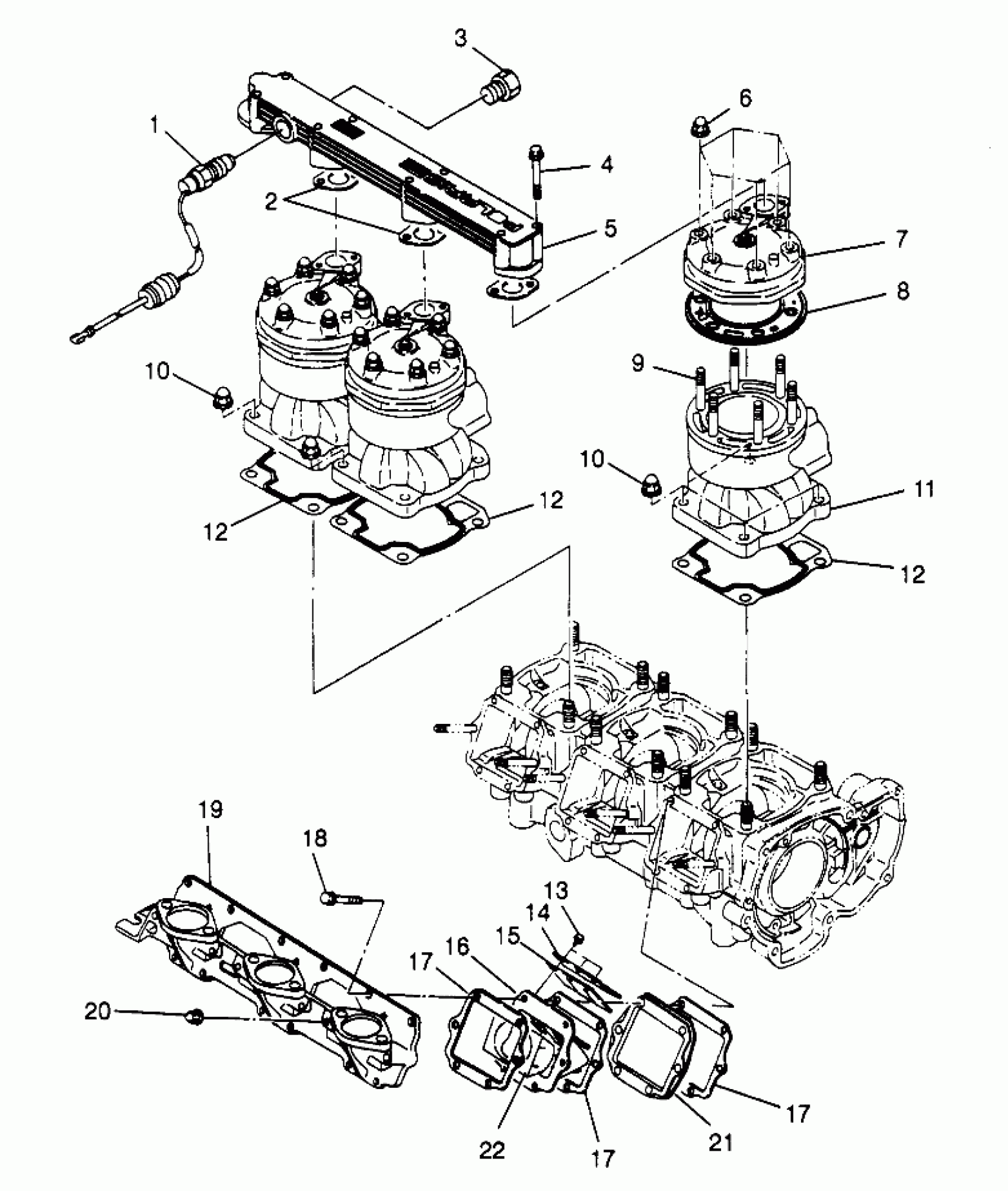

Polaris SLX 780 - B954287 CYLINDER & MANIFOLD SLX 780 B954287 (4933953395B014) Diagram

#

Description
Price

1

SWITCH,THERMO

3240223

Unavailable

2

GASKET(10)

3082937

Unavailable

3

PLUG

3240219

$12.21

4

BOLT Substituted by 3240075

3240259

Unavailable

5

MANIFOLD,WATER OUTLET

3240258

$247.99

6

NUT,FLANGE CAP

3240252

Unavailable

7

HEAD, CYL.

3240250

Unavailable

8

GASKET, HEAD (Head)

3240251

$41.27

9

STUD

3240211

Unavailable

10

NUT,FLANGE CAP

3240253

$6.35

10

NUT,FLANGE CAP

3240253

$6.35

11

CYLINDER (Incl. 9)

3240248

Unavailable

12

GASKET, CYL.

3240249

Unavailable

12

GASKET, CYL.

3240249

Unavailable

12

GASKET, CYL.

3240249

Unavailable

13

SCREW&WASHER Substituted by 3084565

3240066

Unavailable

14

Stopper

3240065

Unavailable

15

VALVE, REED(10)

3240064

Unavailable

16

VALVE ASM., REED (Incl. 13-15)

3084147

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

17

GASKET, REED VALVE,(10)

3084148

Unavailable

18

BOLT

3240255

$3.33

20

NUT,FLANGE CAP

3240256

$3.97

21

SPACER,REED VALVE

3240257

$26.19

22

STUFFER,(REED VALVE ASM.)

3240164

$12.39
