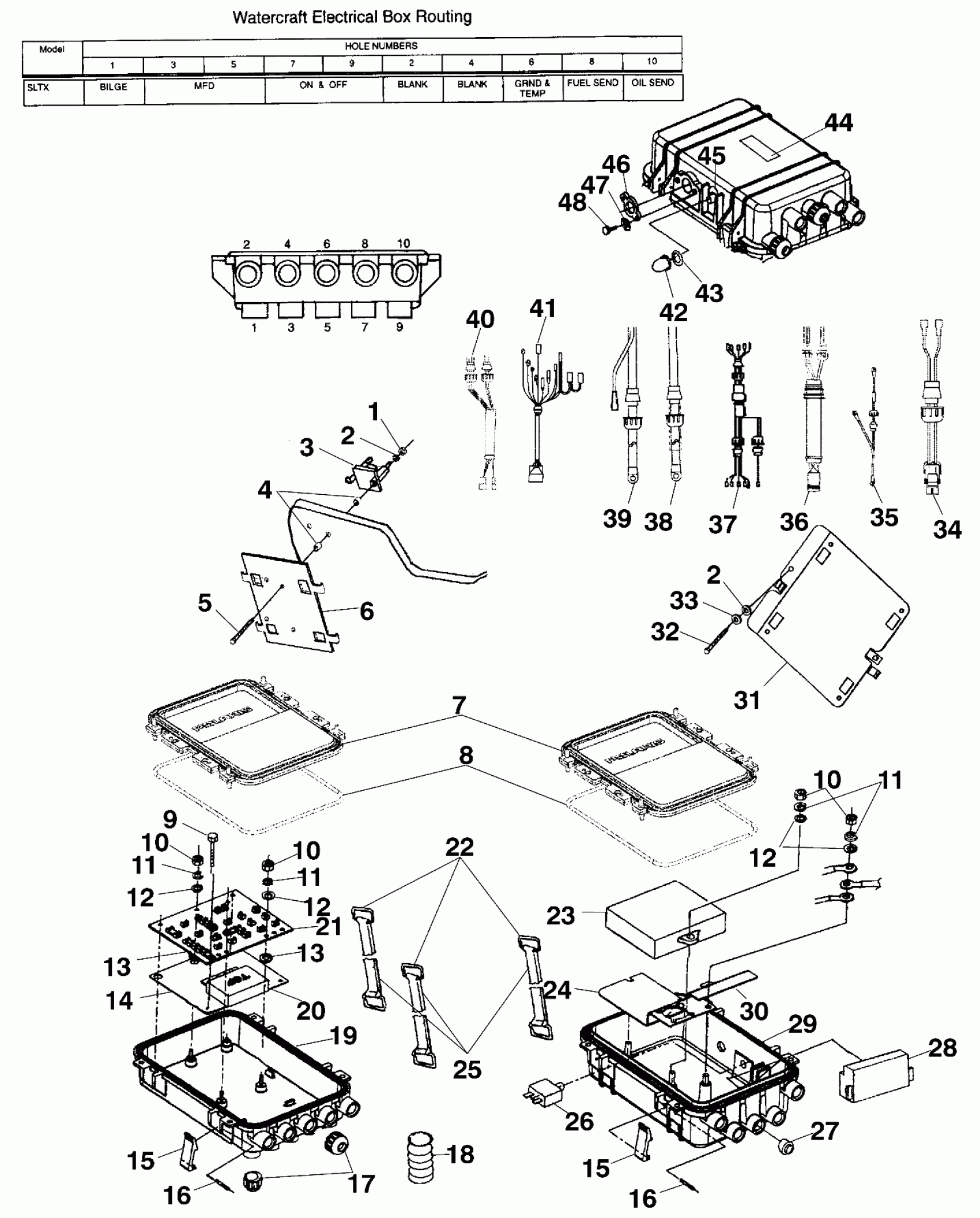

Polaris SLTX - B994590 ELECTRICAL BOX - I994590 (4951425142b011) Diagram

#

Description
Price

1

NUT, HEX, S.S.(10)

7541931

$5.99

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

3

Solenoid, Starter (See Magneto Pg. C5, Ref. 15)

----

Unavailable

4

SPACER

7556087

Unavailable

5

SCREW [No Longer Available]

7517635

Unavailable

6

BRACKET-IGN.BOX BULK.MOUNT

5243107

Unavailable

7

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

8

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

9

BOLT, S.S.(10)

7512042

Unavailable

10

NUT, SS.(10)

7547036

$1.59

10

NUT, SS.(10)

7547036

$1.59

10

NUT, SS.(10)

7547036

$1.59

11

WASHER, LOCK(10)

7552615

Unavailable

11

WASHER, LOCK(10)

7552615

Unavailable

11

WASHER, LOCK(10)

7552615

Unavailable

12

WASHER, FLAT, S.S.(10)

7555837

$1.59

12

WASHER, FLAT, S.S.(10)

7555837

$1.59

12

WASHER, FLAT, S.S.(10)

7555837

$1.59

13

WASHER,RUBBER(10)

7555870

$0.40

13

WASHER,RUBBER(10)

7555870

$0.40

14

PLATE,BTM,E-BOX

5211761

$9.05

15

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

15

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

16

PIN,LATCH,ELEC.BOX

5333544

$10.46

16

PIN,LATCH,ELEC.BOX

5333544

$10.46

17

CAP,GROMMET,ELEC.BOX

5432502

$2.62

18

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

19

ELECTRICAL BOX ACCESSORY (Incl. 7,8,15,16)

2631997

$56.99

20

REG./RECT/CUTOFF,LR23 Substituted by 4060192

4060171

Unavailable

21

TERM.BOARD ASM,MFD

2434014

Unavailable

22

HOOK,'D',SST/SS,(10)

5224472

Unavailable

23

Controller (See Magneto Pg. C5, Ref. 13)

----

Unavailable

24

PLATE,TOP,E-BOX

5211760

$8.17

25

STRAP,BATT.HOLD-DOWN

5411456

Unavailable

26

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

27

Grommet

5411235

Unavailable

28

Coil, Ignition, Triple (See Magneto Pg. C5, Ref. 14)

----

Unavailable

29

ELECTRICAL BOX IGNITION Substituted by 2632137 (Incl. 7,8,15,16)

2631999

Unavailable

30

BRKT,COIL/SOLENOID,.078 THK

5243538

Unavailable

31

BRKT,ACCS. E-BOX MOUNT

5243235

Unavailable

32

BOLT(10)

7515127

Unavailable

33

WASHER, LOCK, S.S.(10)

7555838

Unavailable

34

HARNESS-BILGE PUMP,CONNECTOR

2460753

$20.48

35

HARNESS-WIRE GROUND

2460769

Unavailable

36

HARNESS-WIRE,MFD 6W,8P 80IN

2460767

Unavailable

37

HARNESS-CROSS TALK

2460742

Unavailable

38

CABLE-SOLENOID/STARTER

4010237

Unavailable

39

CABLE-BATTERY/SOLENOID

4010238

Unavailable

40

HARNESS-33 INCH,6 WIRE

2460744

Unavailable

41

HARNESS-9 WIRE STATOR,3CYL

2460768

Unavailable

42

BOOT,THREADED,RED

7080461

$13.99

43

O-Ring

5411491

$1.03

44

DECAL,WARN,HI.VOLT.

7073713

Unavailable

45

DECAL,ELECT.BOX RESET

7073734

Unavailable

46

PLATE,STATOR,1 HOLE

5432574

$6.59

47

WASHER(10)

7555836

$3.99

48

BOLT,SS,(10)

7515113

Unavailable
