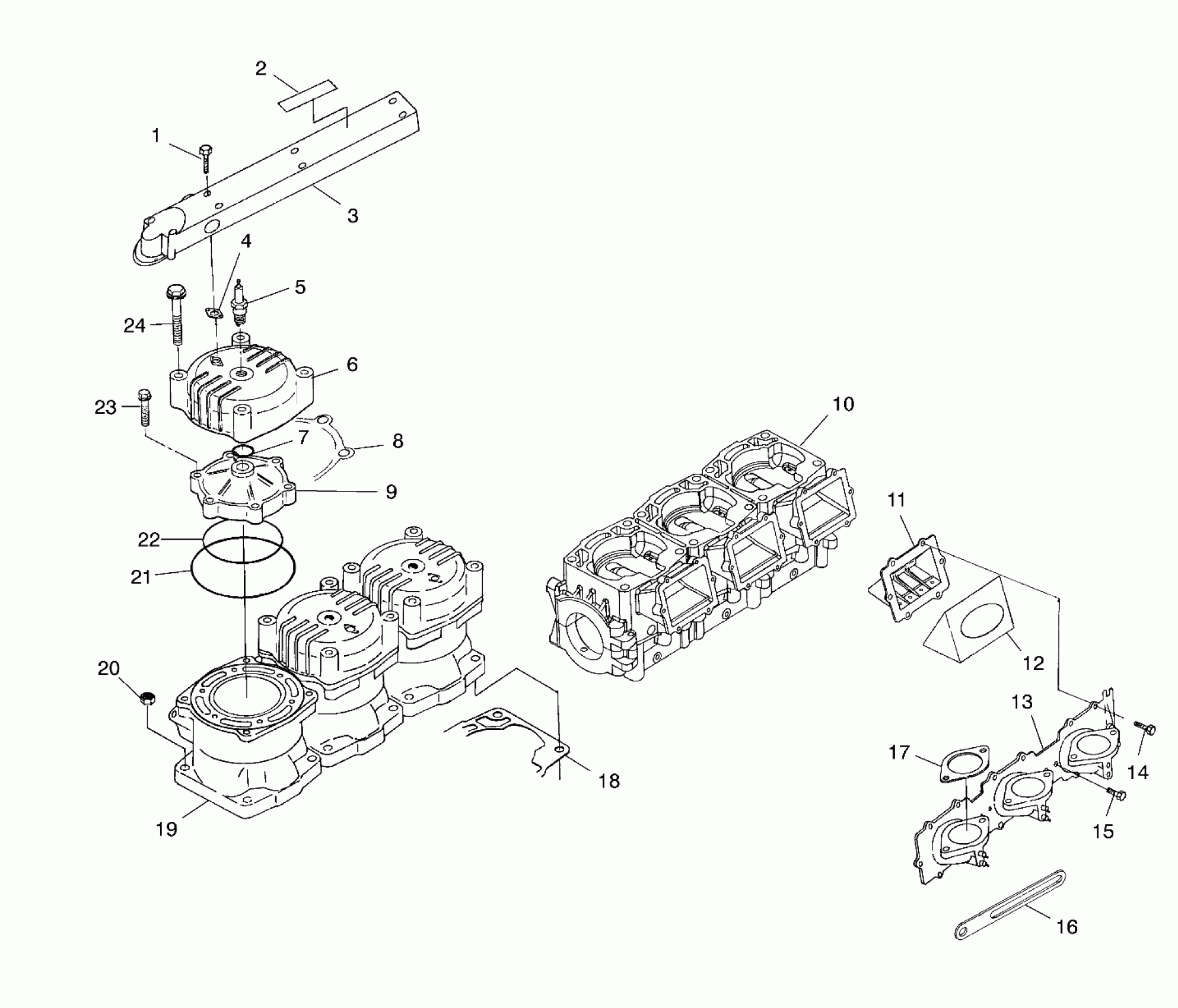

Polaris SLTX - B994590 CYLINDER and MANIFOLD - I994590 (4951425142b014) Diagram

#

Description
Price

-

KIT,GASKET,TOP END,1050 TRIPLE (Incl. 4,7,18,21,22)

2200825

Unavailable

-

KIT,GASKETSET,(1050 TRPL) [Cannot Purchase as Assembly] (Incl. 4,7,17,18,21,22)

2200814

Unavailable

1

BOLT(10)

7516806

Unavailable

2

Decal, Warning

7075383

Unavailable

3

MANIFOLD,WATER-OUT,3CYL,RED

5630789-093

Unavailable

4

GASKET,WATER MANIF.

5830061

Unavailable

5

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

6

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

7

O-RING(10)

5410917

$1.49

8

RING,HEAD,81MM-SS

5241944

Unavailable

9

HEAD,CYL,81MM DIA

3022025

Unavailable

10

Kit - Asm., Triple Crankcase (See Crankcase Pg. B13, Ref.1)

-------

Unavailable

11

REED BLOCK ASM,TRIPLE

1201595

Unavailable

12

STUFFER-REED BLOCK

5432162

Unavailable

13

ADAPTOR,CARB,3 CYL.

5630582

Unavailable

14

BOLT(10)

7516807

Unavailable

15

BOLT(10)

7516814

Unavailable

16

RETAINER,SS.

7080654

$18.32

17

GASKET,CARB.

5830043

Unavailable

18

GASKET,CYL.BASE

5830123

Unavailable

19

CYLINDER,81MM,PWC,KONIG

3021019

Unavailable

20

NUT

7547021

$6.99

21

O-Ring

5410931

Unavailable

22

O-RING

5410932

$20.22

23

SCREW,(10) Substituted by 7517352

7517251

Unavailable

24

BOLT(10)

7516722

Unavailable
