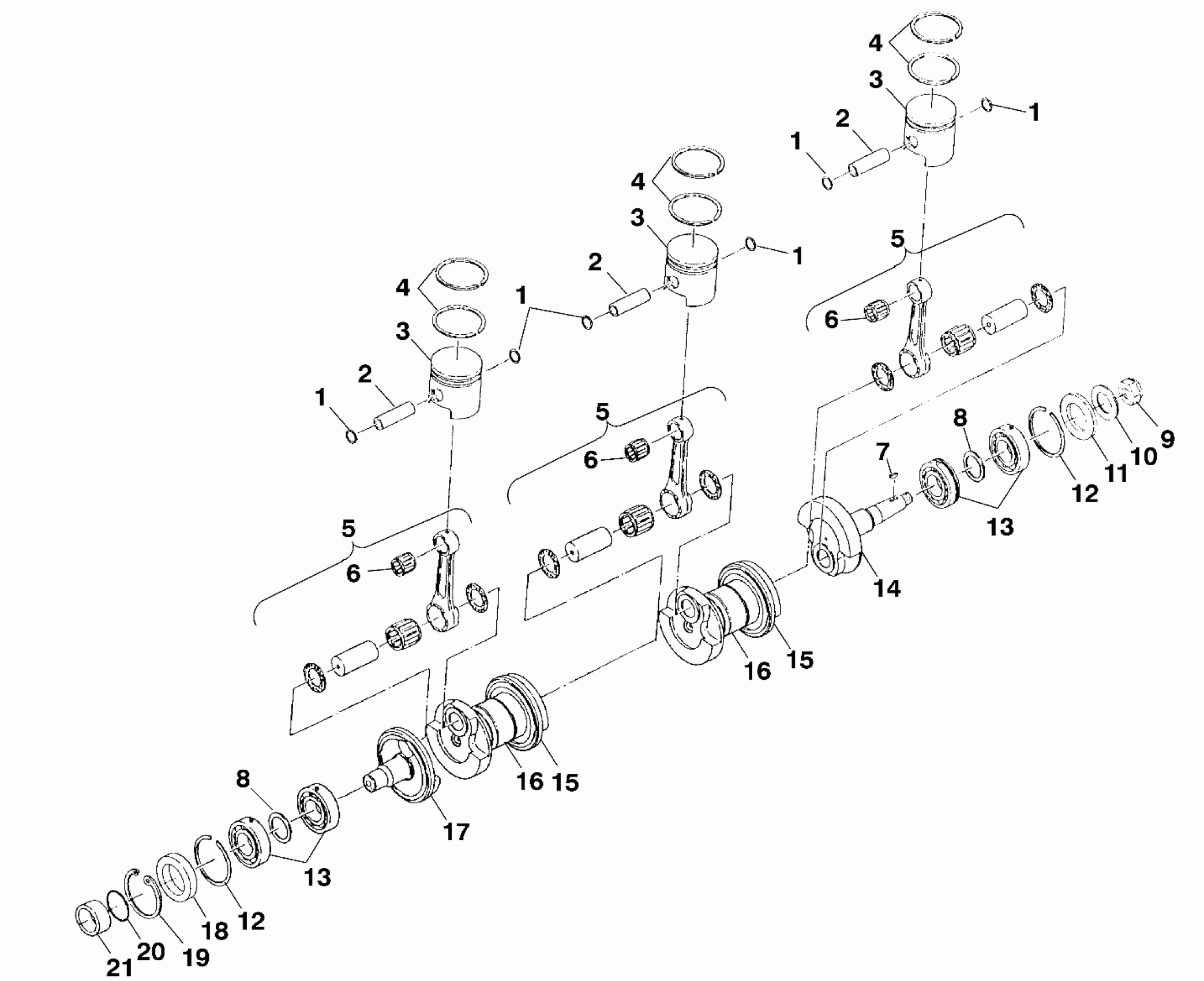

Polaris SLTX - B994590 CRANKSHAFT and PISTON - I994590 (4951425142c003) Diagram

#

Description
Price

-

CRANKSHAFT,KIT,3CYL,PWC,MAPE18 (Incl. 8,13-17)

2201431

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

PIN,PISTON

3022953

Unavailable

2

PIN,PISTON

3022953

Unavailable

2

PIN,PISTON

3022953

Unavailable

3

KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.)(Incl.1,2,4)

2200921

Unavailable

3

KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl. 1,2,4)

2200919

$226.99

3

KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)

2200920

Unavailable

3

KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.)(Incl.1,2,4)

2200921

Unavailable

3

KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl. 1,2,4)

2200919

$226.99

3

KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)

2200920

Unavailable

3

KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.)(Incl.1,2,4)

2200921

Unavailable

3

KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl. 1,2,4)

2200919

$226.99

3

KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)

2200920

Unavailable

4

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)

2200917

Unavailable

4

KIT,PISTONRING,81MM,STD,CKS (Standard)

2200918

Unavailable

4

KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)

2200916

$76.81

4

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)

2200917

Unavailable

4

KIT,PISTONRING,81MM,STD,CKS (Standard)

2200918

Unavailable

4

KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)

2200916

$76.81

4

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)

2200917

Unavailable

4

KIT,PISTONRING,81MM,STD,CKS (Standard)

2200918

Unavailable

4

KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)

2200916

$76.81

5

KIT,CONN.ROD,MAPE

2201022

$305.56

5

KIT,CONN.ROD,MAPE

2201022

$305.56

5

KIT,CONN.ROD,MAPE

2201022

$305.56

6

BEARING,CONNECT.ROD

3584001

Unavailable

6

BEARING,CONNECT.ROD

3584001

Unavailable

6

BEARING,CONNECT.ROD

3584001

Unavailable

7

KEY,WOODRUFF(10)

7721117

$29.99

8

BUSHING(10)

7555905

$3.99

8

BUSHING(10)

7555905

$3.99

9

Nut (See Magneto Pg. C5, Ref. 11)

----

Unavailable

10

Washer (See Magneto Pg. C5, Ref. 10)

----

Unavailable

11

Seal

3610044

$24.27

12

RING,RETAINING,(10)

7710441

Unavailable

12

RING,RETAINING,(10)

7710441

Unavailable

13

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

13

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

14

CRANKWEB,MAG.

5131085

Unavailable

15

CRANKWEB,CTR,BIGBORE

5131084

$154.99

15

CRANKWEB,CTR,BIGBORE

5131084

$154.99

16

Labyrinth

5131086

Unavailable

16

Labyrinth

5131086

Unavailable

17

CRANKWEB,PTO,BIGBORE

5131083

$135.30

18

SEAL,TYPE BA SL

5411524

Unavailable

19

RING,RETAINING(10)

7710435

Unavailable

20

O RING,(10)

5410613

$1.98

21

COLLAR,CRANKSHAFT

5131195

Unavailable
