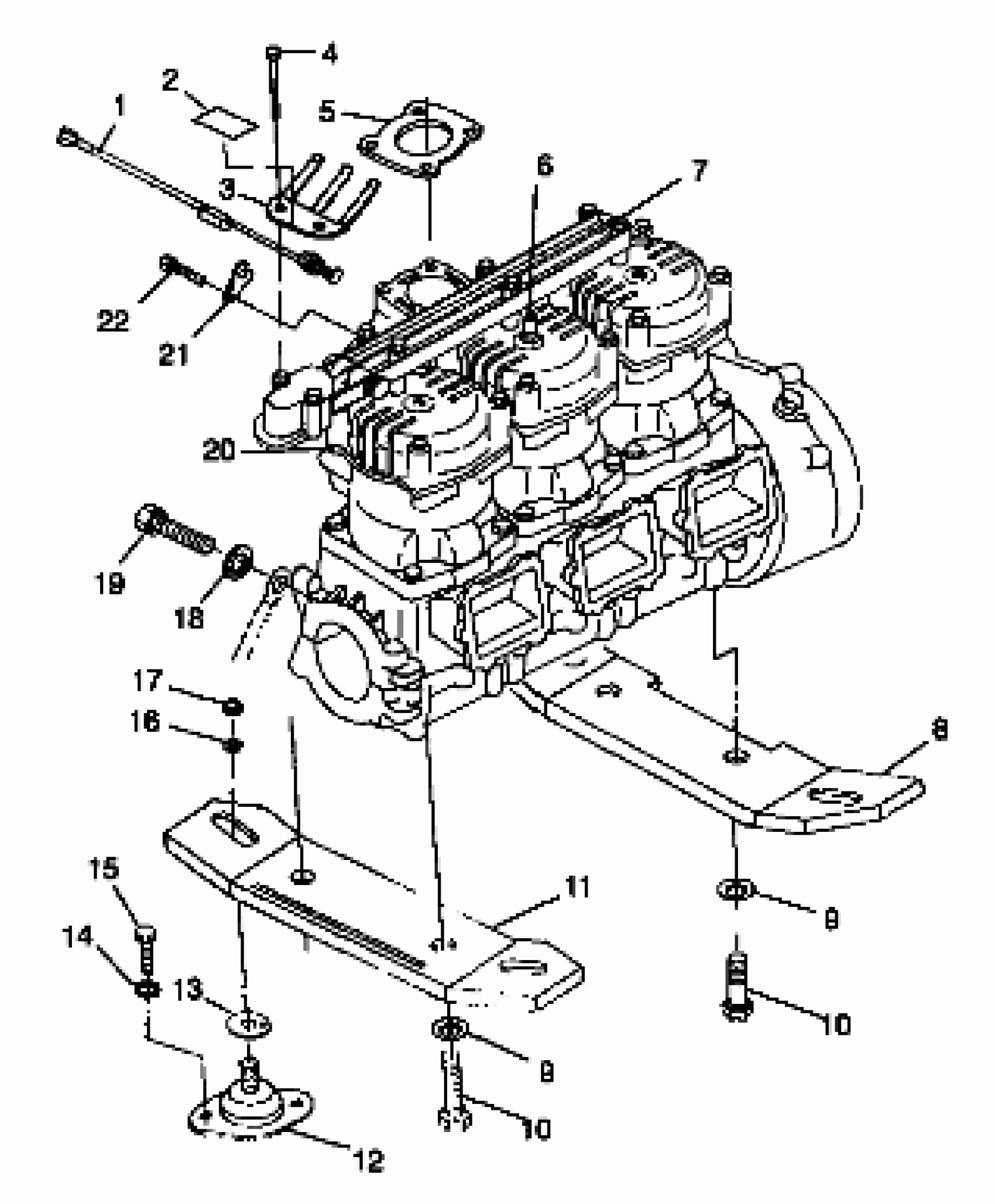

Polaris SLTX - B984590 ENGINE MOUNTING - B984590 (4946314631b001) Diagram

#

Description
Price

1

SWITCH ASM,TEMP(NO GROMMET)

2410075

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.94

3

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

4

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

5

GASKET,EXH.PIPE

5830051

Unavailable

6

Spark Plug, NGK BPR8ES (See Footnote) (See Cyl. and Manifold Pg. B14, Ref. 5)

----

Unavailable

7

Decal - Warning (See Footnote) (See Cylinder and Manifold Pg. B14, Ref. 2)

----

Unavailable

8

PLATE,F.MOUNT Substituted by 5631128

5630585

$102.38

9

WASHER,LOCK,S.S.

7552609

$1.75

9

WASHER,LOCK,S.S.

7552609

$1.75

10

SCREW, SS.

7517330

Unavailable

10

SCREW, SS.

7517330

Unavailable

11

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

12

MT,ENG,ANTI-ROTATION Substituted by 3021103

3110055

$73.81

13

SHIM,ENG.MT.(PWC)

5211727

Unavailable

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

BOLT, S.S.(10)

7515361

$2.19

16

WASHER, FLAT, S.S.(10)

7555848

Unavailable

17

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

18

WASHER,LOCK,SS.

7556055

Unavailable

19

BOLT,SS.

7517497

$3.97

20

KIT,S.B.UPDATE(1050TRIPLE) [Cannot Purchase as Assembly] (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft as

2201212

Unavailable

21

CLIP,RETAIN,TEMP.SW.

5240876

$4.99

22

BOLT,(1)

7516603

$10.32
