CRANKSHAFT & PISTON - B984590 (4946314631c003)

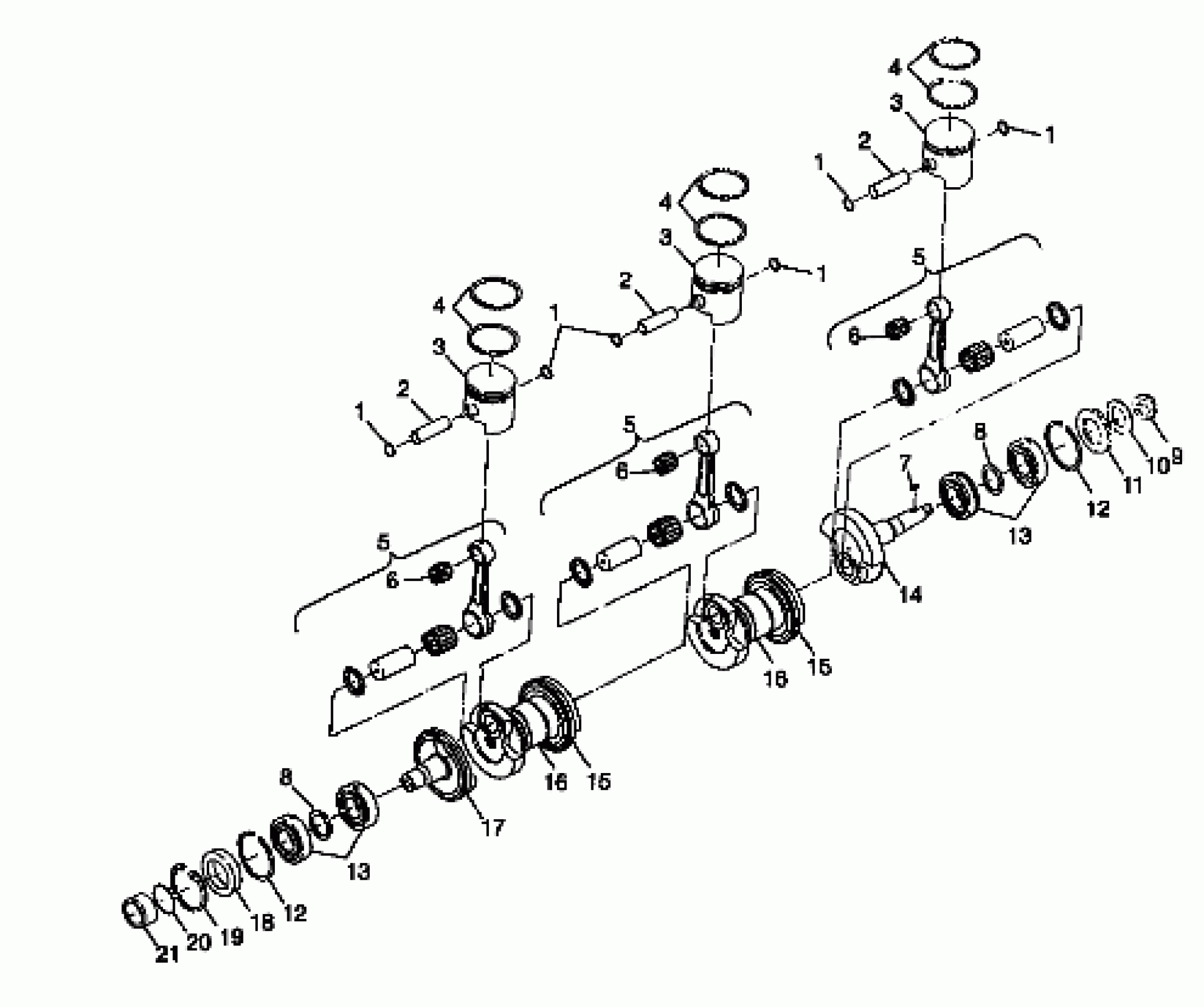

Polaris SLTX - B984590 CRANKSHAFT & PISTON - B984590 (4946314631c003) Diagram
#
-
KIT,CRANKSHAFT,3CYL,PWC,MAPE Substituted by 2201431 (Incl. 8,13-17)
2201238
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
3
KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.) (Incl.1,2,4)
2200921
Unavailable
3
KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl. 1,2,4)
2200919
Unavailable
3
KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)
2200920
Unavailable
3
KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.) (Incl.1,2,4)
2200921
Unavailable
3
KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl. 1,2,4)
2200919
Unavailable
3
KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)
2200920
Unavailable
3
KIT,PISTON,81MM,STD. Substituted by 2201626 (Std.) (Incl.1,2,4)
2200921
Unavailable
3
KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (.50mm O/S) (Incl. 1,2,4)
2200919
Unavailable
3
KIT,PISTON,81MM.25 O/S Substituted by 2201627 (.25mm O/S) (Incl.1,2,4)
2200920
Unavailable
4
KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)
2200917
Unavailable
4
KIT,PISTONRING,81MM,STD,CKS (Standard)
2200918
Unavailable
4
KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)
2200916
Unavailable
4
KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)
2200917
Unavailable
4
KIT,PISTONRING,81MM,STD,CKS (Standard)
2200918
Unavailable
4
KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)
2200916
Unavailable
4
KIT,PISTONRING,81MM.25 O/S,CKS (.25mm O/S)
2200917
Unavailable
4
KIT,PISTONRING,81MM,STD,CKS (Standard)
2200918
Unavailable
4
KIT,PISTONRING,81MM.50 O/S,CKS (.50mm O/S)
2200916
Unavailable
5
KIT,CONN.ROD,MAPE
2201022
$305.56
5
KIT,CONN.ROD,MAPE
2201022
$305.56
5
KIT,CONN.ROD,MAPE
2201022
$305.56
6
BEARING,CONNECT.ROD
3584001
Unavailable
6
BEARING,CONNECT.ROD
3584001
Unavailable
6
BEARING,CONNECT.ROD
3584001
Unavailable
7
KEY,WOODRUFF(10)
7721117
$24.99
8
BUSHING(10)
7555905
$3.99
8
BUSHING(10)
7555905
$3.99
9
Nut, Pump Drive (See Magneto Pg. C5, Ref. 10)
-------
Unavailable
10
Washer (See Magneto Pg. C5, Ref. 9)
-------
Unavailable
11
Seal
3610044
$24.27
12
RING,RETAINING,(10)
7710441
Unavailable
12
RING,RETAINING,(10)
7710441
Unavailable
13
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
13
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
14
CRANKWEB,MAG.
5131085
Unavailable
15
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
15
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
16
Labyrinth
5131086
Unavailable
16
Labyrinth
5131086
Unavailable
17
CRANKWEB,PTO,BIGBORE
5131083
Unavailable
18
SEAL,TYPE BA SL
5411524
Unavailable
19
RING,RETAINING(10)
7710435
Unavailable
20
O RING,(10)
5410613
$1.99
21
COLLAR,CRANKSHAFT
5131195
Unavailable
