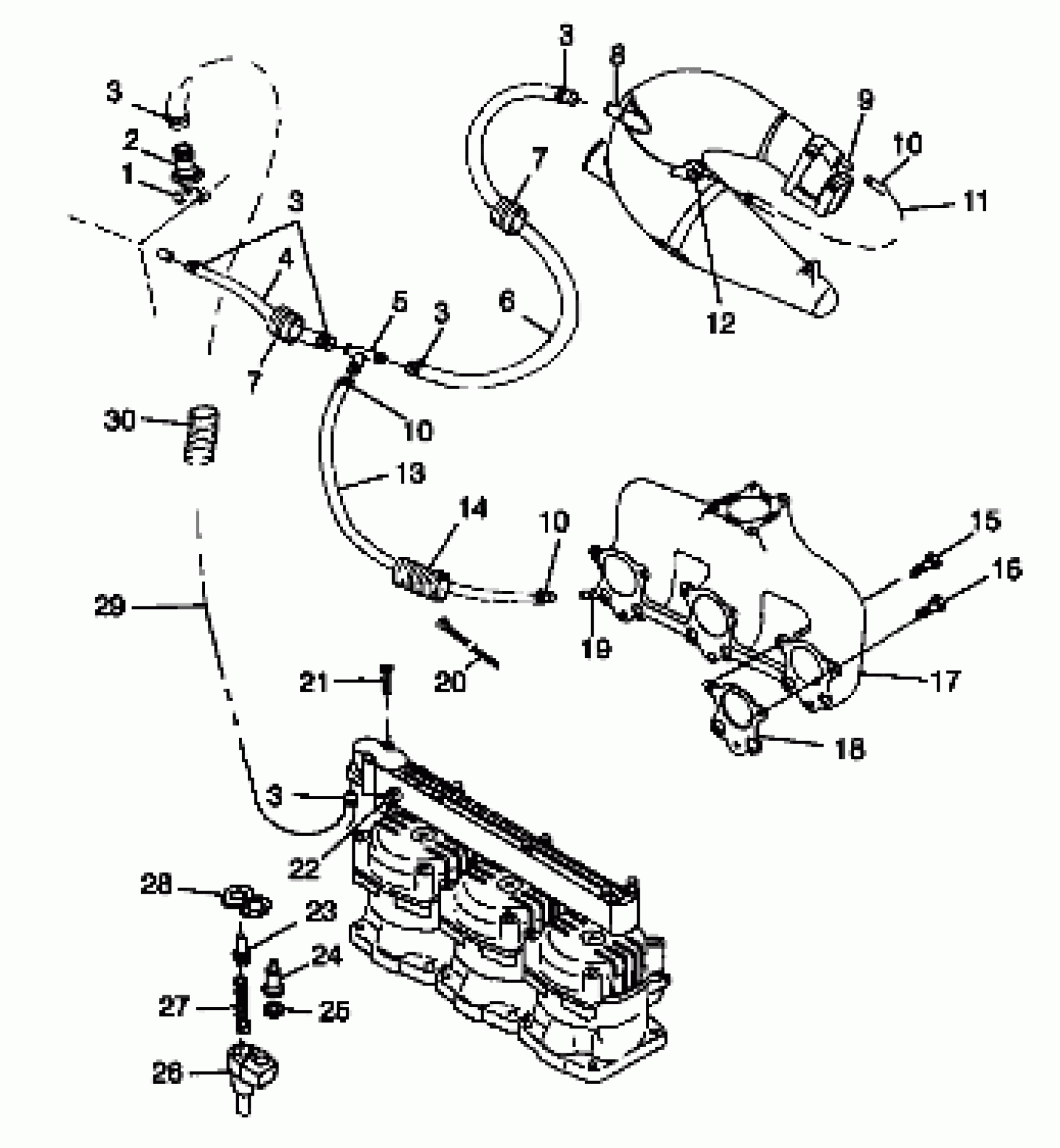

Polaris SLTX - B984590 COOLING SYSTEM - B984590 (4946314631b008) Diagram

#

Description
Price

1

Gasket

5811317

$0.87

2

FITTING,THRU HULL,WATER Substituted by 5431444-133

5431444

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

4

HOSE,WATER INLET

5411335

Unavailable

5

FITTING,TEE

5431784

Unavailable

6

HOSE,WATER-IN,EXH.PIPE

5411476

Unavailable

7

CONDUIT,FLEX,1.250ID Substituted by 5521287-20

5521287-18

$5.71

7

CONDUIT,FLEX,1.250ID Substituted by 5521287-20

5521287-18

$5.71

8

Fitting, Inlet, Water (See Footnote) (See Exhaust System Pg. B5, Ref. 1)

----

Unavailable

9

Fitting, Screen, Exhaust (See Footnote) (See Exhaust System Pg. B5, Ref. 8)

----

Unavailable

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

HOSE,STINGER

5411153

$21.27

12

Fitting, Injector, Exhaust (See Footnote) (See Exhaust System Pg. B5, Ref.11)

----

Unavailable

13

HOSE,WATER,50CM Substituted by 8450054-100

8450054-50

Unavailable

14

CONDUIT,FLEX(.75"ID) Substituted by 5521398-96

5521398-42

$5.71

15

Bolt

7516727

Unavailable

16

BOLT, S.S,(10)

7516725

Unavailable

17

KIT,EXH.MANIFOLD ASM. (Incl. 19)

2200948

Unavailable

18

GASKET,EXH.FLNG

5811045

Unavailable

19

FITTING,DRAIN,EXH.MANIFOLD

5020746

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

Screw (See Footnote) (See Engine Mntng. Pg. B1, Ref. 4)

----

Unavailable

22

PLUG,PIPE(10)

7051527

$6.59

23

VALVE,POP-OFF

5432799

$4.92

24

THERMOSTAT, (143 F.)

7051008

Unavailable

25

GASKET, THERMOSTAT Substituted by 5412014

5410781

Unavailable

26

COVER,THERMOSTAT Substituted by 5631098

5131008

Unavailable

27

Spring, Compression

7041310

$1.83

28

SEAL,O-RING/THERMO/FITTING

5410860

Unavailable

29

HOSE,WATER OUT,3/4 ID

5411310

Unavailable

30

CONDUIT,FLEX,1.250ID

5521287-45

$7.38
