Description

Price

1

HANDLE,UP.GRAB,VLT.MET

5431756-242

Unavailable

2

COVER,SEAT,VM,SLT TOUR

2682142-242

Unavailable

2

SEAT ASM,3PASS,PVM. (Incl. 2-20)

2682193-242

Unavailable

3

NUT, WELD

7541935

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

Unavailable

5

SCREW(10) Substituted by 7512052

7512055

Unavailable

6

SHIELD,RH,SEAT,VLT.MET.

5432463-242

Unavailable

6

SHIELD,LH,SEAT,VLT.MET.

5432462-242

Unavailable

7

FASTENER,PANEL,NYLON,(10)

7670076

$7.99

8

Base, Seat

-------

Unavailable

9

CLIP,RETAINER,SEAT

5240136

Unavailable

10

RIVET(50)

7661834

$5.99

11

BOLT, SS.(10)

7515123

Unavailable

12

WASHER, LOCK, S.S.(10)

7555838

Unavailable

12

WASHER, LOCK, S.S.(10)

7555838

Unavailable

13

WASHER, FLAT, S.S.(10)

7555839

Unavailable

13

WASHER, FLAT, S.S.(10)

7555839

Unavailable

14

PLATE,LATCH,BOT.SEAT BASE

5431357

Unavailable

15

PLATE,SEATBASE LATCH

5211314

Unavailable

16

SPRING,SEATBASE LATCH

7042036

Unavailable

17

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

18

HANDLE, SEAT

5431358

Unavailable

19

BOLT(10)

7515127

Unavailable

20

NUT, TEE(10)

7542137

Unavailable

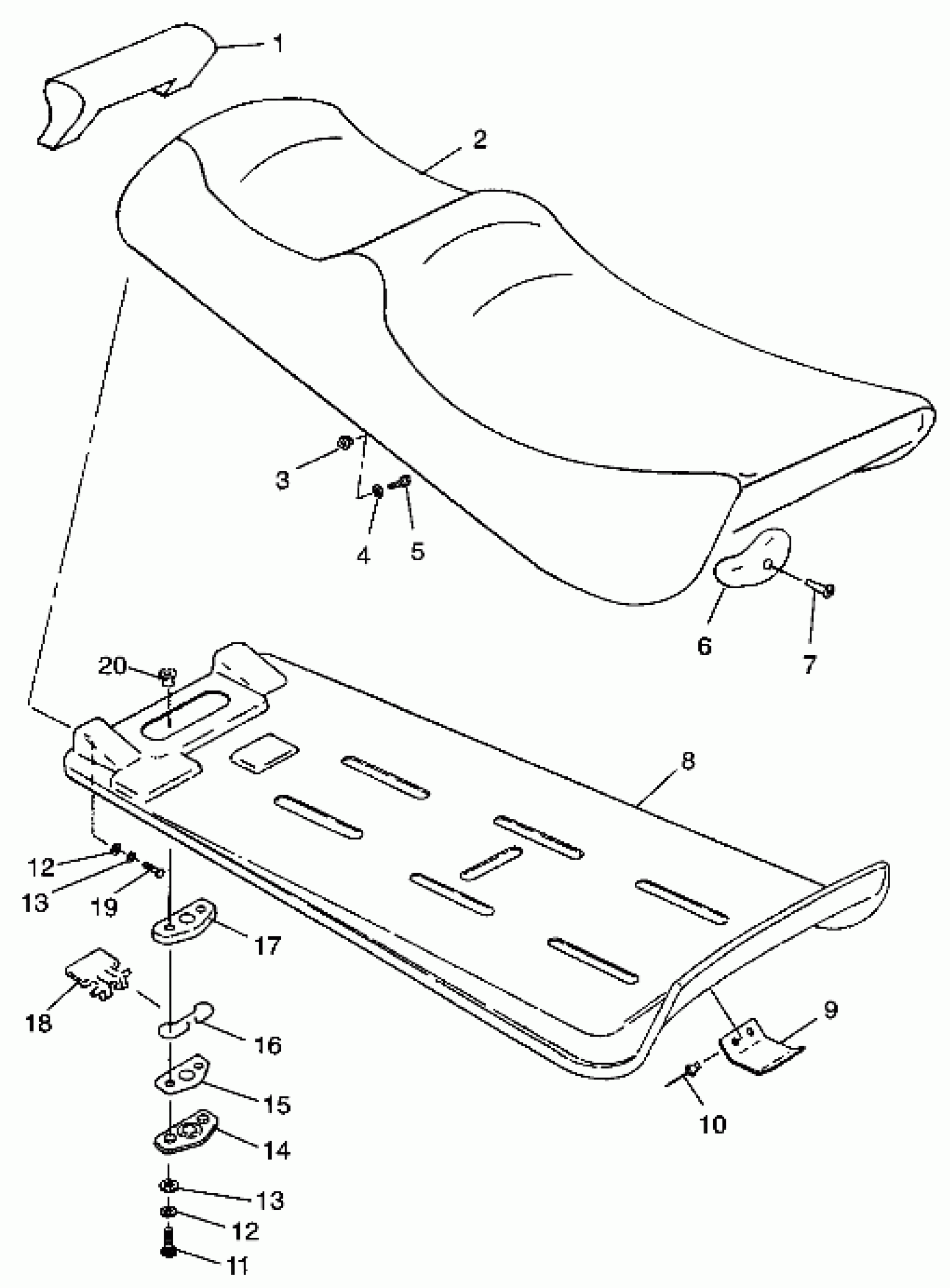

Polaris SLTX - B974590 SEAT SLTX B974590 and INTL. SLTX I974590 (4941214121A010) Diagram

HANDLE,UP.GRAB,VLT.MET

COVER,SEAT,VM,SLT TOUR

SEAT ASM,3PASS,PVM. (Incl. 2-20)

NUT, WELD

WASHER, FLAT, S.S.(10)

SCREW(10) Substituted by 7512052

SHIELD,RH,SEAT,VLT.MET.

SHIELD,LH,SEAT,VLT.MET.

FASTENER,PANEL,NYLON,(10)

Base, Seat

CLIP,RETAINER,SEAT

RIVET(50)

BOLT, SS.(10)

WASHER, LOCK, S.S.(10)

WASHER, LOCK, S.S.(10)

WASHER, FLAT, S.S.(10)

WASHER, FLAT, S.S.(10)

PLATE,LATCH,BOT.SEAT BASE

PLATE,SEATBASE LATCH

SPRING,SEATBASE LATCH

PLATE,TOP,SEATBASE LATCH

HANDLE, SEAT

BOLT(10)

NUT, TEE(10)
