PROPULSION SLTX B974590 and INTL. SLTX I974590 (4941214121B003)

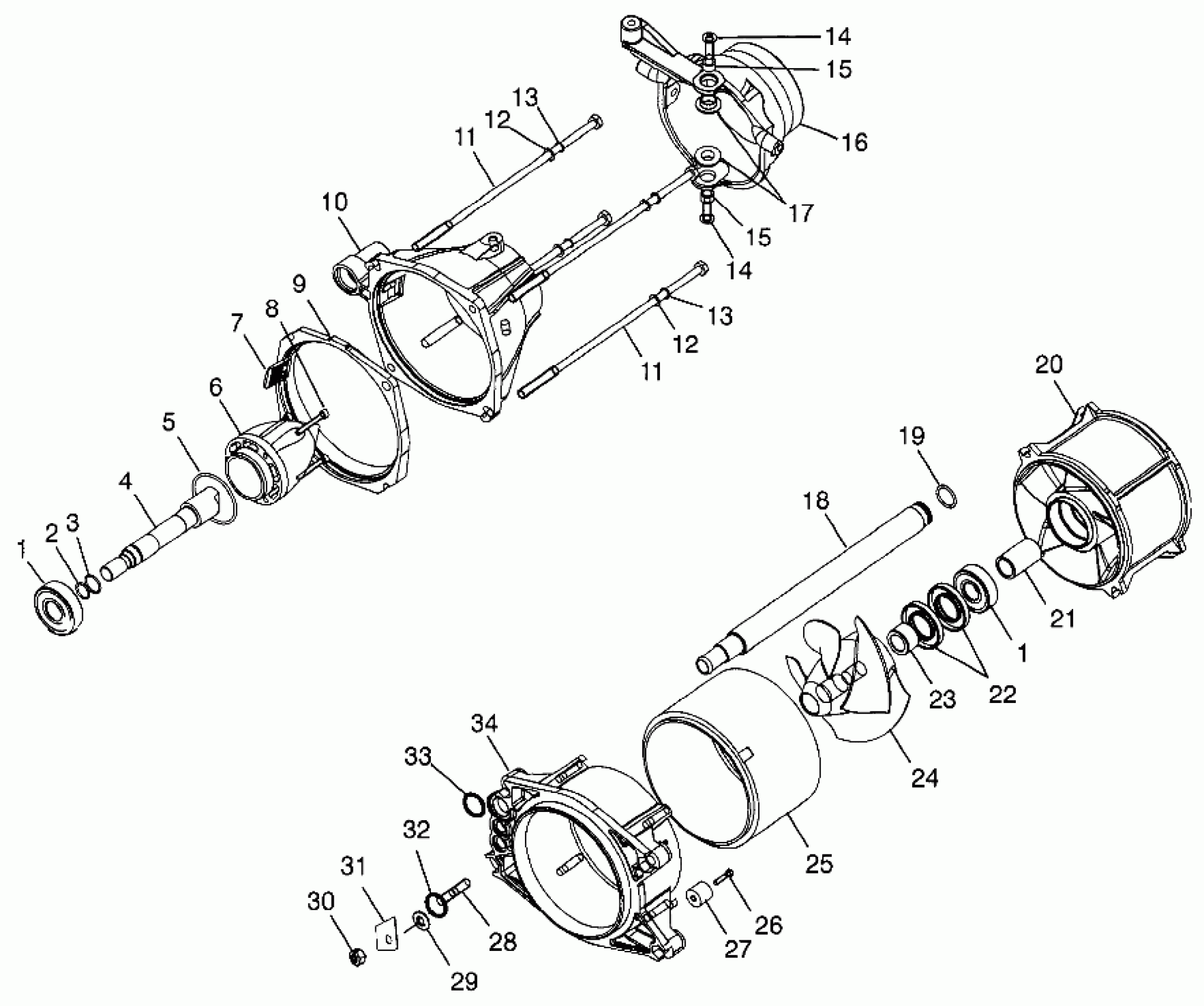

Polaris SLTX - B974590 PROPULSION SLTX B974590 and INTL. SLTX I974590 (4941214121B003) Diagram
#
1
Bearing
3514008
Unavailable
1
Bearing
3514008
Unavailable
2
O-RING,(10)
5410817
Unavailable
3
O-RING(10)
5410818
Unavailable
4
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
5
O-RING(10)
5410819
Unavailable
6
Cone, Pump
5431519
Unavailable
7
SCREEN,ENG.INLET
5431523
Unavailable
8
SCREW(10)
7512064
Unavailable
9
WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841
5630662
Unavailable
10
NOZZLE,STAT.,0X4 WEDGE
5131569
Unavailable
11
Bolt
7515389
Unavailable
11
Bolt
7515389
Unavailable
12
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
12
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
13
WASHER, LOCK, S.S.(10)
7552610
Unavailable
13
WASHER, LOCK, S.S.(10)
7552610
Unavailable
14
BOLT, S.S.(10)
7515366
Unavailable
14
BOLT, S.S.(10)
7515366
Unavailable
15
Collar
5130938
Unavailable
15
Collar
5130938
Unavailable
16
NOZZLE,STRG,SLT
5130999
Unavailable
17
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
18
PIPE,WATER,ENG.,RESTRICTED Substituted by 5432269
5131545
Unavailable
19
O RING,(10)
5410735
Unavailable
20
STATOR,PUMP,HI-PERF. Substituted by 5130983 (Mach)
5131726
Unavailable
21
Spacer
5010294
Unavailable
22
SEAL,BRG,STATOR
3610043
Unavailable
23
Spacer, Impeller
5010295
Unavailable
24
IMPELLER,17-25,3BLADE,SS
5131554
Unavailable
25
EXTENSION,PUMP
5131196
Unavailable
26
SCREW(10)
7522019
Unavailable
27
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
28
STUD,PUMP MTG.
5020842
Unavailable
29
Washer
7555966
$2.63
30
NUT,HEX,S.S.(10)
7542455
Unavailable
31
BRKT,STRG.CABLE
5241741
Unavailable
32
WASHER,PUMPSTUD,SEAL
7555941
Unavailable
33
SEAL,WATER PIPE
5411107
Unavailable
34
HSG,PUMP,W/O RING,INT STUD
5131573
Unavailable
