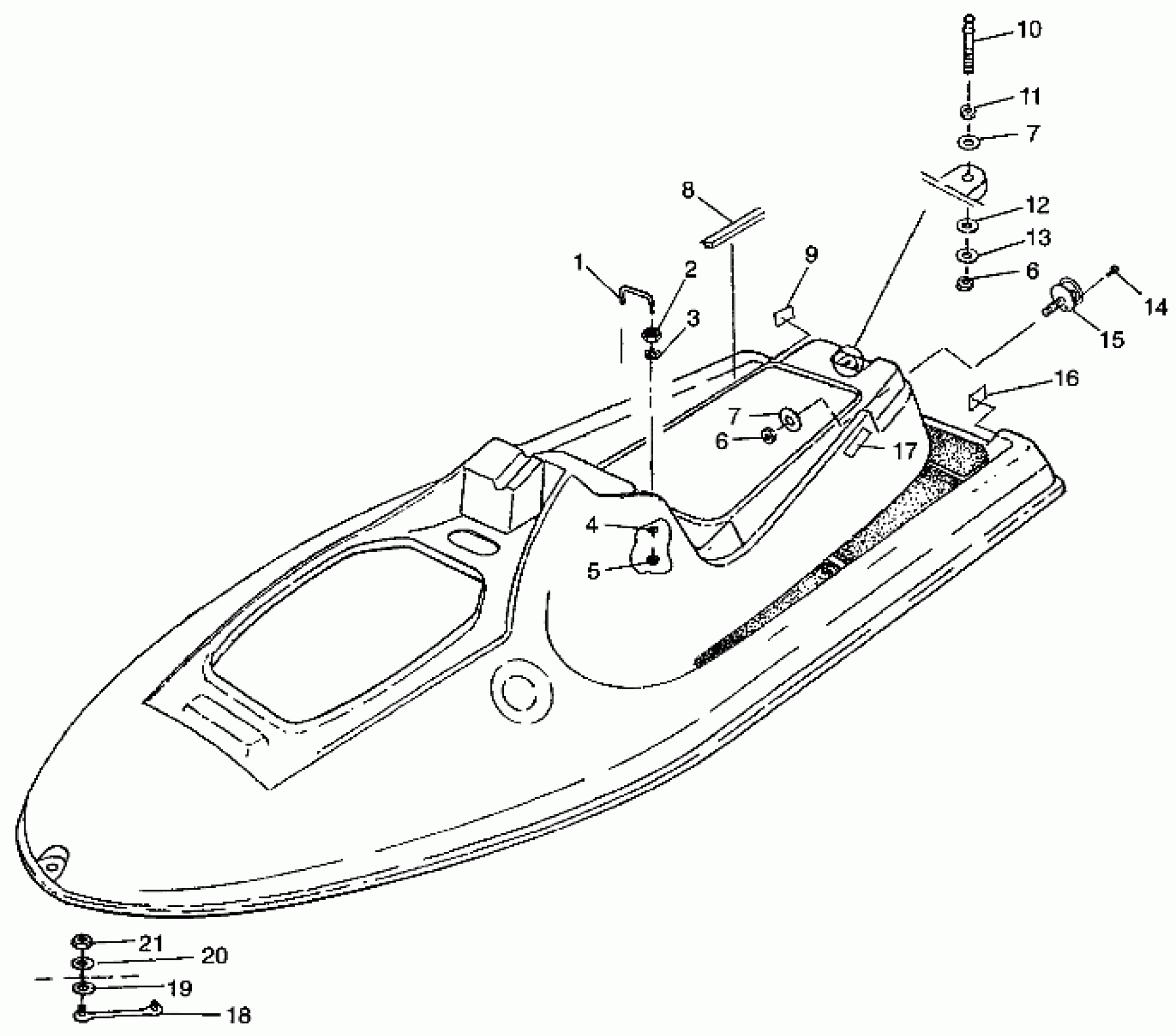

Polaris SLTX - B974590 HULL and BODY SLTX B974590 and INTL. SLTX I974590 (4941214121A006) Diagram

#

Description

Price

1

U-BOLT,SEAT RETAINER

5224750

Unavailable

2

NUT

7542334

$1.49

3

WASHER,RUBBER

7555950

Unavailable

4

WASHER, FLAT, S.S.,(10)

7555835

Unavailable

5

NUT, HEX, S.S.(10)

7542335

Unavailable

6

NUT,HEX,S.S.(10)

7542455

Unavailable

6

NUT,HEX,S.S.(10)

7542455

Unavailable

7

WASHER, FLAT(10)

7555845

Unavailable

7

WASHER, FLAT(10)

7555845

Unavailable

8

SEAL, SEAT

5521382

Unavailable

9

PAD,RH,HEEL

5830034

Unavailable

10

PLUNGER,LATCH

5020753

Unavailable

11

NUT, HEX, S.S.,(10)

7542454

Unavailable

12

WASHER, FLAT(10)

7555841

Unavailable

13

WASHER, LOCK, S.S.(10)

7552607

Unavailable

14

SCREW(10)

7515388

Unavailable

15

HOOK,SKI-TOW

7061002

Unavailable

16

PAD,LH,HEEL

5830033

Unavailable

17

DECAL,WARN.SEAT/ENG. Substituted by 7078311

7077196

Unavailable

18

STRAP, BOW

2670150

Unavailable

19

WASHER,RUBBER(10)

7555870

Unavailable

20

WASHER, FLAT, S.S.(10)

7555839

Unavailable

21

NUT,NYLOK,S.S.(10)

7542133

Unavailable
