FRONT STORAGE COMPARTMENT SLTX B974590 and INTL. SLTX I974590 (4941214121A008)

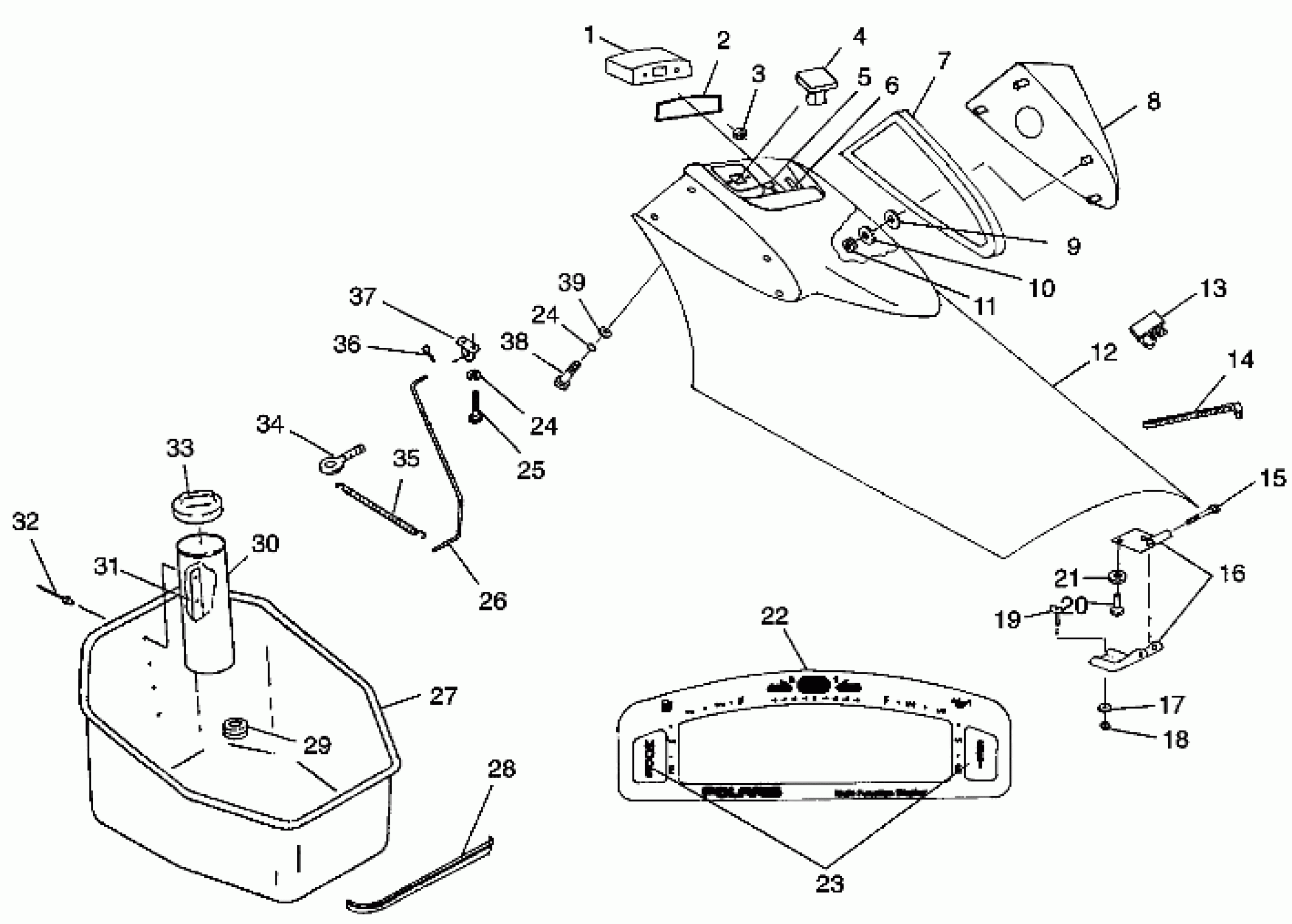

Polaris SLTX - B974590 FRONT STORAGE COMPARTMENT SLTX B974590 and INTL. SLTX I974590 (4941214121A008) Diagram
#
1
GAUGE,MFD,8PIN,SLT
3280269
Unavailable
2
SEAL,MFD
5411245
Unavailable
3
NUT,LOCK,NYLON,(10)
7542142
Unavailable
4
LATCH ASM,COMP./DOOR
2653008
Unavailable
5
HARNESS,MFD,8PIN,6WIRE
2460631
Unavailable
6
PITOT LINE,90DEG.FORMED,345CM.
8450070-345
Unavailable
7
SEAL,PORT MIRROR
5411246
Unavailable
7
SEAL,STBD.MIRROR
5411247
Unavailable
8
MIRROR ASM,PORT,VLT.MET. (Incl. 7)
2652191-242
Unavailable
8
MIRROR ASM,STBD,VLT.MET.
2652192-242
Unavailable
9
WASHER,(10)
5811440
$2.07
10
WASHER, FLAT, S.S.(10)
7555839
Unavailable
11
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
12
DOOR,COMPART,PVM. Substituted by 5433030-242
5432491-242
Unavailable
13
CLIP,WIRE HARNESS,(10)
7080703
Unavailable
14
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
PIN, HINGE Substituted by 2635012
7661629
Unavailable
16
HINGE ASM,LID,SLT
2635016
Unavailable
17
WASHER, FLAT, S.S.(10)
7555831
Unavailable
18
NUT, HEX, S.S.(10)
7542335
Unavailable
19
PLATE,SCREW,HINGE
1060111
Unavailable
20
BOLT, S.S.(10)
7515121
Unavailable
21
WASHER, LOCK, S.S.(10)
7555838
Unavailable
22
BEZEL,MFD,W/OVERLAY
3280266
Unavailable
23
KIT,MFD.BUTTON Substituted by 2201263
2200826
Unavailable
24
WASHER, LOCK(10)
7552615
$4.99
24
WASHER, LOCK(10)
7552615
$4.99
25
SCREW,SS
7517401
Unavailable
26
SUPPORT,DOOR,SLT
5224524
Unavailable
27
BUCKET,FR.STORAGE
5432534
Unavailable
28
SEAL,BUCKET
5521409
Unavailable
29
GROMMET,DRAIN
5411145
Unavailable
30
CONTAINER,FIRE EXTINGUISHER (Incl. 33 & Container)
1060114
Unavailable
30
CONTAINER,FIRE EXT. Substituted by 1060114
5431841
Unavailable
31
PLATE,FIRE EXT.SS Substituted by 5244773
5211740
Unavailable
32
RIVET,(50)
7621491
Unavailable
33
COVER,FIRE EXT. Substituted by 1060114
5431842
Unavailable
34
EYEBOLT, SS
7080651
Unavailable
35
SPRING,DOOR SUPPORT
7042038
Unavailable
36
PIN, COTTER(10)
7661010
$1.49
37
RETAINER,DOOR SUPPORT
5240340
Unavailable
38
BOLT, SS.(10)
7512045
$4.99
39
WASHER, FLAT, S.S.(10)
7555837
Unavailable
