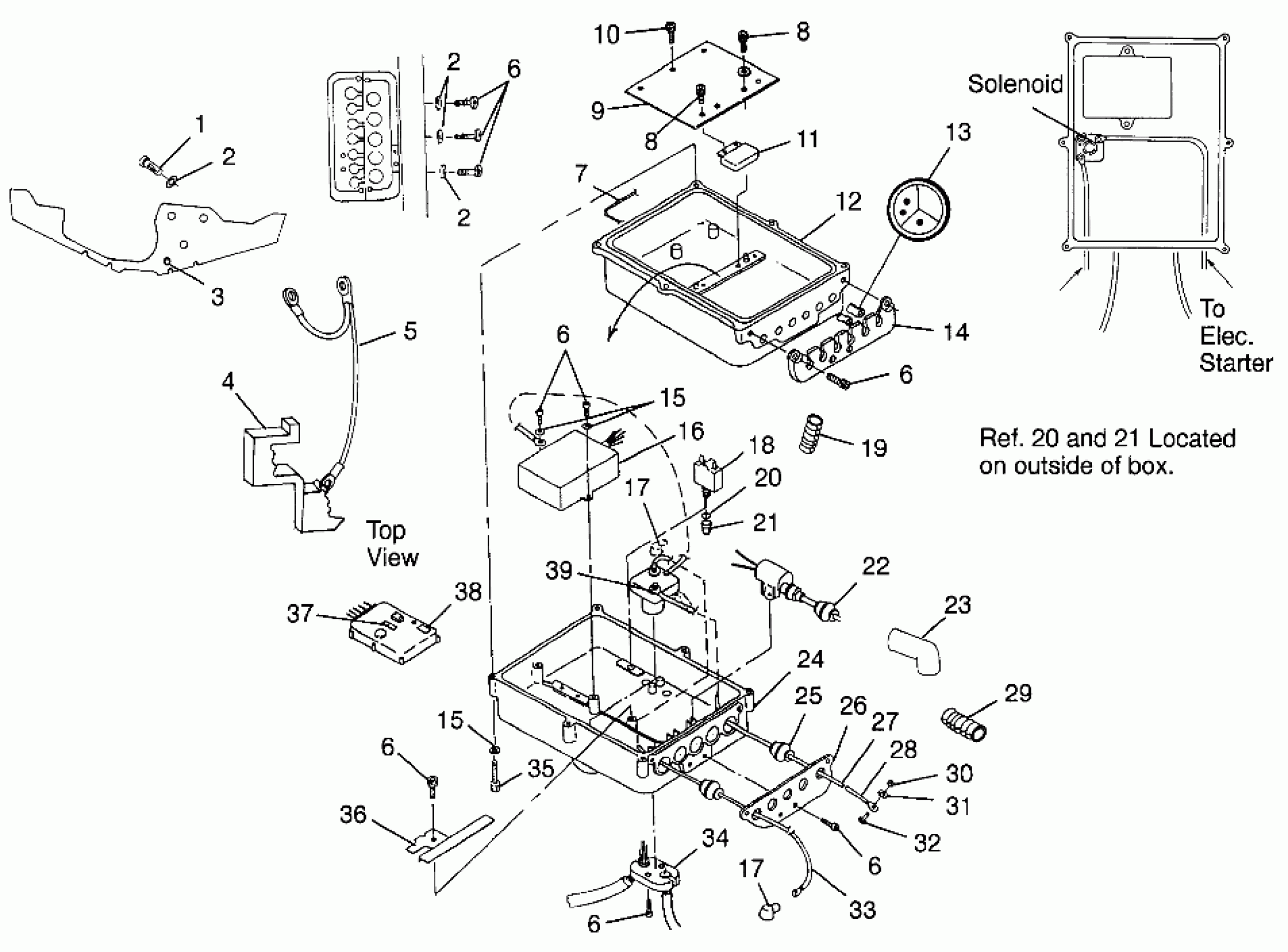

Polaris SLTX - B974590 ELECTRICAL BOX SLTX B974590 and INTL. SLTX I974590 (4941214121B009) Diagram

#

Description
Price

1

BOLT(10)

7515127

Unavailable

2

WASHER,S.S.(10)

7555891

$1.50

2

WASHER,S.S.(10)

7555891

$1.50

2

WASHER,S.S.(10)

7555891

$1.50

3

Grommet

5411158

Unavailable

4

T-CLIP(10)

7080471

$3.57

5

HARNESS,GND-CONTROL BOX

2460581

Unavailable

6

BOLT, S.S.(10)

7515118

Unavailable

6

BOLT, S.S.(10)

7515118

Unavailable

6

BOLT, S.S.(10)

7515118

Unavailable

6

BOLT, S.S.(10)

7515118

Unavailable

6

BOLT, S.S.(10)

7515118

Unavailable

6

BOLT, S.S.(10)

7515118

Unavailable

7

O-RING,(ELEC.BOX)

5410912

Unavailable

8

SCREW,S.S.(10)

7512072

$0.40

8

SCREW,S.S.(10)

7512072

$0.40

9

BOARD,TERMINAL,MFD,DIODE

4040080

Unavailable

10

BOLT, S.S.(10)

7512042

Unavailable

11

REG./RECT/CUTOFF,LR23 Substituted by 4060192

4060171

Unavailable

12

BOX,BOTTOM,ELEC.

5131256

Unavailable

13

O-RING,(10)

5410817

Unavailable

13

GROMMET,SECTION,2-HOLE

5410852

Unavailable

13

GROMMET,SECTION,NO HOLE

5410850

$2.14

14

PLATE,6-HOLE,CAST

5630497

Unavailable

15

WASHER(10)

7555836

$3.99

15

WASHER(10)

7555836

$3.99

16

Ignition Coil, Triple (See Pg. A35, Ref. 13)

----

Unavailable

17

INSULATOR-CABLE

5410346

$7.73

17

INSULATOR-CABLE

5410346

$7.73

18

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

19

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

20

O-RING

5410725

$1.03

21

BOOT,THREADED,RED

7080461

$13.99

22

GROMMET, COIL

5410677

Unavailable

23

CAP,SPARK PLUG

4020159

Unavailable

24

TOP, ELEC.BOX

5131174

$73.81

25

GROMMET, 16 GA.(10)

5410678

$2.14

26

PLATE, 5-HOLE

5630416

Unavailable

27

CABLE,RED,SOL./START.

4010081

Unavailable

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

29

CONDUIT,FLEX,1.250ID

5521287-132

Unavailable

30

NUT, 6 MM.,S.S.(10)

7546705

$4.76

31

WASHER, LOCK(10)

7552613

Unavailable

32

BOLT(10)

7516809

Unavailable

33

CABLE,RED,BATT/SOL.

4010082

Unavailable

34

PLATE, 2-HOLE

5630415

$12.30

35

BOLT(10)

7515119

Unavailable

36

BRKT,COIL RETAINER

5241182

$19.68

37

DECAL,WARN,HI.VOLT.

7073713

Unavailable

38

DECAL,ELECT.BOX RESET

7073734

Unavailable

39

Switch, Starter/Solenoid (See Pg. A35, Ref. 14)

----

Unavailable
