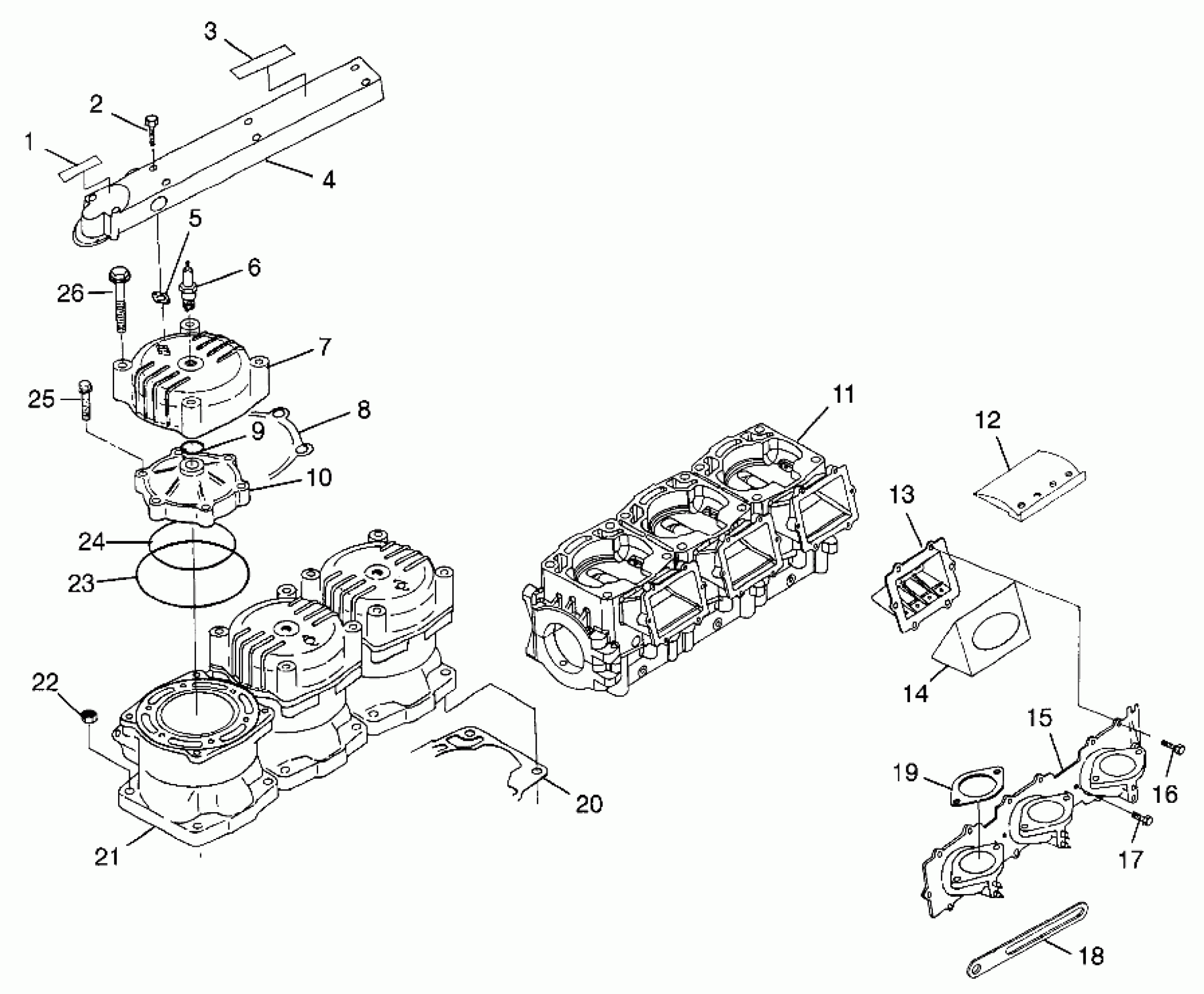

Polaris SLTX - B974590 CYLINDER & MANIFOLD SLTX B974590 and INTL. SLTX I974590 (4941214121B014) Diagram

#

Description
Price

-

KIT,GASKET,TOP END,1050 TRIPLE (Incl. 9, 20, 23, 24)

2200825

Unavailable

-

KIT,GASKETSET,(1050 TRPL) [Cannot Purchase as Assembly] (Incl. 5, 9, 20, 23, 24)

2200814

Unavailable

1

DECAL,SPARKPLUG REC.

7077026

$2.95

2

BOLT(10)

7516806

Unavailable

3

Decal, Warning

7075383

Unavailable

4

MANIFOLD,WATER-OUT,3CYL,RED

5630789-093

Unavailable

5

GASKET,WATER MANIF.

5830061

Unavailable

6

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

7

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

8

RING,HEAD,81MM-SS

5241944

Unavailable

9

O-RING(10)

5410917

$1.49

10

HEAD,CYL,81MM DIA

3022025

Unavailable

10

HEAD,CYL,81MM,PWC

3022050

Unavailable

11

Kit - Asm., Crankcase, Triple (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

12

STUFFER,(900/1050 PWC)

5411252

Unavailable

13

REED BLOCK ASM,TRIPLE

1201595

Unavailable

14

STUFFER-REED BLOCK

5432162

Unavailable

15

ADAPTOR,CARB,3 CYL.

5630582

Unavailable

16

BOLT(10)

7516807

Unavailable

17

BOLT(10)

7516814

Unavailable

18

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

19

GASKET,CARB.

5830043

Unavailable

20

GASKET,CYL.BASE

5830123

Unavailable

21

CYLINDER,81MM,PWC Substituted by 3021018

3021009

Unavailable

22

NUT(10)

7547013

$1.99

23

O-Ring

5410931

Unavailable

24

O-RING

5410932

$20.22

25

SCREW,(10) Substituted by 7517352

7517251

Unavailable

26

BOLT(10)

7516722

Unavailable
