CRANKSHAFT & PISTON SLTX B974590 and INTL. SLTX I974590 (4941214121C003)

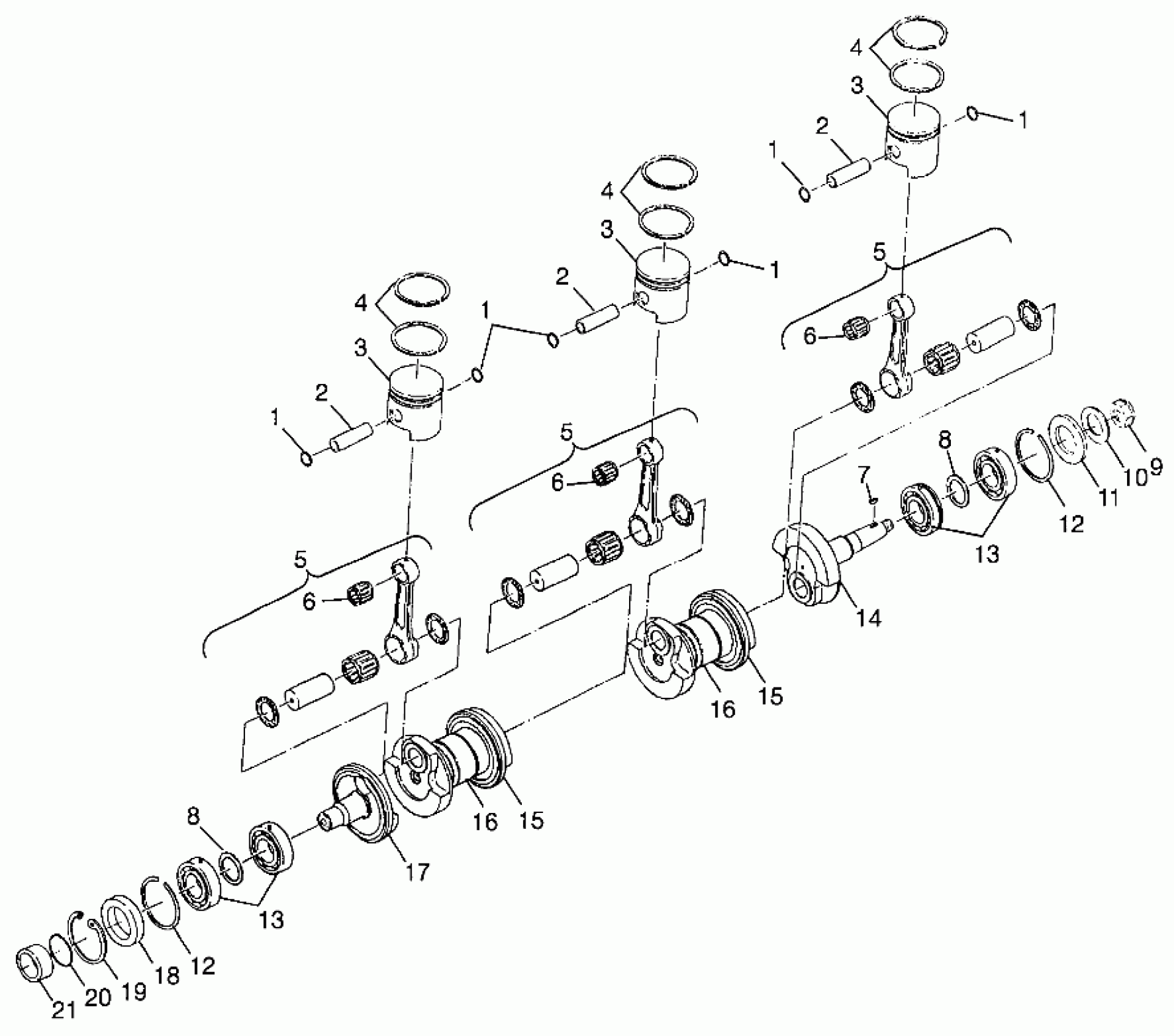

Polaris SLTX - B974590 CRANKSHAFT & PISTON SLTX B974590 and INTL. SLTX I974590 (4941214121C003) Diagram
#
-
CRANKSHAFT, 3 CYL Substituted by 2201238 (Incl. 5, 14-17)
1201586
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
1
CIRCLIP,PISTON,20MM.,(10)
3022950
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
2
PIN,PISTON
3022953
Unavailable
3
KIT,PISTON,81MM,STD. Substituted by 2201626 (Incl. 1, 2, 4)
2200921
Unavailable
3
KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (Incl. 1, 2, 3)
2200919
Unavailable
3
KIT,PISTON,81MM.25 O/S Substituted by 2201627 (Incl. 1, 2, 4)
2200920
Unavailable
3
KIT,PISTON,81MM,STD. Substituted by 2201626 (Incl. 1, 2, 4)
2200921
Unavailable
3
KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (Incl. 1, 2, 3)
2200919
Unavailable
3
KIT,PISTON,81MM.25 O/S Substituted by 2201627 (Incl. 1, 2, 4)
2200920
Unavailable
3
KIT,PISTON,81MM,STD. Substituted by 2201626 (Incl. 1, 2, 4)
2200921
Unavailable
3
KIT,PISTON,81MM,.50 O/S Substituted by 2201628 (Incl. 1, 2, 3)
2200919
Unavailable
3
KIT,PISTON,81MM.25 O/S Substituted by 2201627 (Incl. 1, 2, 4)
2200920
Unavailable
4
KIT,PISTONRING,81MM.25 O/S,CKS
2200917
Unavailable
4
KIT,PISTONRING,81MM,STD,CKS
2200918
Unavailable
4
KIT,PISTONRING,81MM.50 O/S,CKS
2200916
Unavailable
4
KIT,PISTONRING,81MM.25 O/S,CKS
2200917
Unavailable
4
KIT,PISTONRING,81MM,STD,CKS
2200918
Unavailable
4
KIT,PISTONRING,81MM.50 O/S,CKS
2200916
Unavailable
4
KIT,PISTONRING,81MM.25 O/S,CKS
2200917
Unavailable
4
KIT,PISTONRING,81MM,STD,CKS
2200918
Unavailable
4
KIT,PISTONRING,81MM.50 O/S,CKS
2200916
Unavailable
5
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022
2200674
Unavailable
5
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022
2200674
Unavailable
5
KIT,CONN.ROD ASM.(PWC) Substituted by 2201022
2200674
Unavailable
6
BEARING,CONNECT.ROD
3584001
Unavailable
6
BEARING,CONNECT.ROD
3584001
Unavailable
6
BEARING,CONNECT.ROD
3584001
Unavailable
7
KEY,WOODRUFF(10)
7721117
$24.99
8
BUSHING(10)
7555905
$3.99
8
BUSHING(10)
7555905
$3.99
9
Nut, Pump Drive (See Pg. A35, Ref. 11)
-------
Unavailable
10
Washer (See Pg. A35, Ref. 10)
-------
Unavailable
11
Seal
3610044
$24.27
12
RING,RETAINING,(10)
7710441
Unavailable
12
RING,RETAINING,(10)
7710441
Unavailable
13
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
13
BEARING,DEEP GROOVE Substituted by 3585503
3585501
Unavailable
14
CRANKWEB,MAG.
5131085
Unavailable
15
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
15
CRANKWEB,CTR,BIGBORE
5131084
Unavailable
16
Labyrinth
5131086
Unavailable
16
Labyrinth
5131086
Unavailable
17
CRANKWEB,PTO,BIGBORE
5131083
Unavailable
18
SEAL Substituted by 5411524
5410913
Unavailable
19
RING,RETAINING(10)
7710435
Unavailable
20
O RING,(10)
5410613
$1.99
21
COLLAR,CRANKSHAFT
5131195
Unavailable
