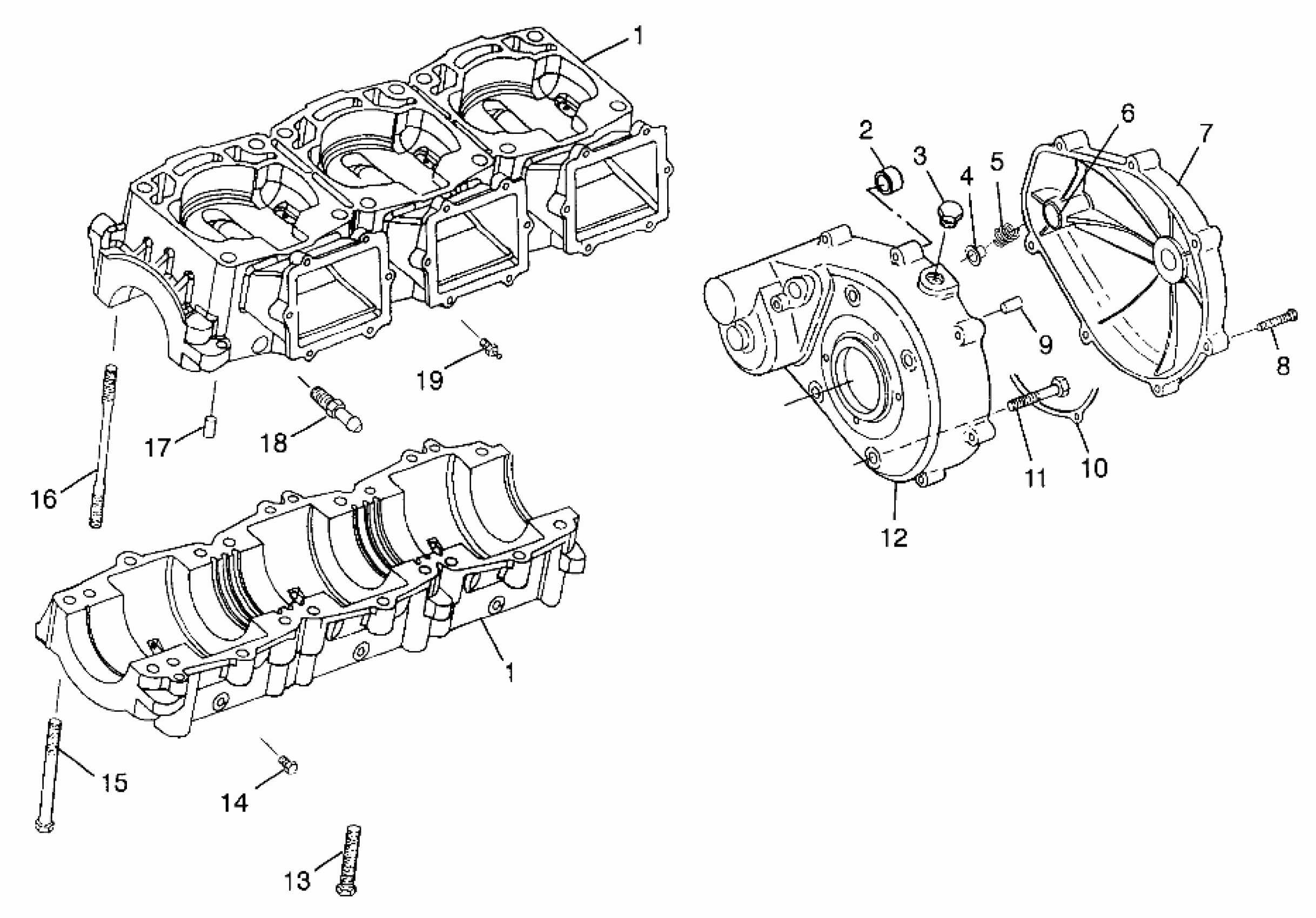

Polaris SLTX - B974590 CRANKCASE SLTX B974590 and INTL. SLTX I974590 (4941214121B013) Diagram

#

Description

Price

1

KIT,CRANKCASE ASM,TRIPLE Substituted by 2201213 (Incl. 13-17, 19 & Fitting PN 7052074)

2200813

Unavailable

1

KIT,CRANKCASE ASM,TRIPLE Substituted by 2201213 (Incl. 13-17, 19 & Fitting PN 7052074)

2200813

Unavailable

2

Bushing

3569805

Unavailable

3

PLUG,PIPE(10)

7051526

Unavailable

4

BUSHING,PLASTIC

3574214

Unavailable

5

Spring

7041457

Unavailable

6

Bushing

3569806

Unavailable

7

COVER ASM,IGN.HSG.

1201563

Unavailable

8

BOLT(10)

7516806

Unavailable

9

Pin, Dowel

7663002

$4.79

10

GASKET,FLYWHEEL CVR. Substituted by 5811550

5811145

Unavailable

11

BOLT(10)

7516723

Unavailable

12

HOUSING,STARTER Substituted by 2201613

1201564

Unavailable

13

BOLT, S.S,(10)

7516725

Unavailable

14

PLUG Substituted by 7052311

7051529

$15.99

15

BOLT, S.S

7516913

Unavailable

16

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

17

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

18

Fitting

7052135

$9.52

19

PLUG, BRASS(10)

7051521

Unavailable
