COOLING SYSTEM SLTX B974590 and INTL. SLTX I974590 (4941214121B006)

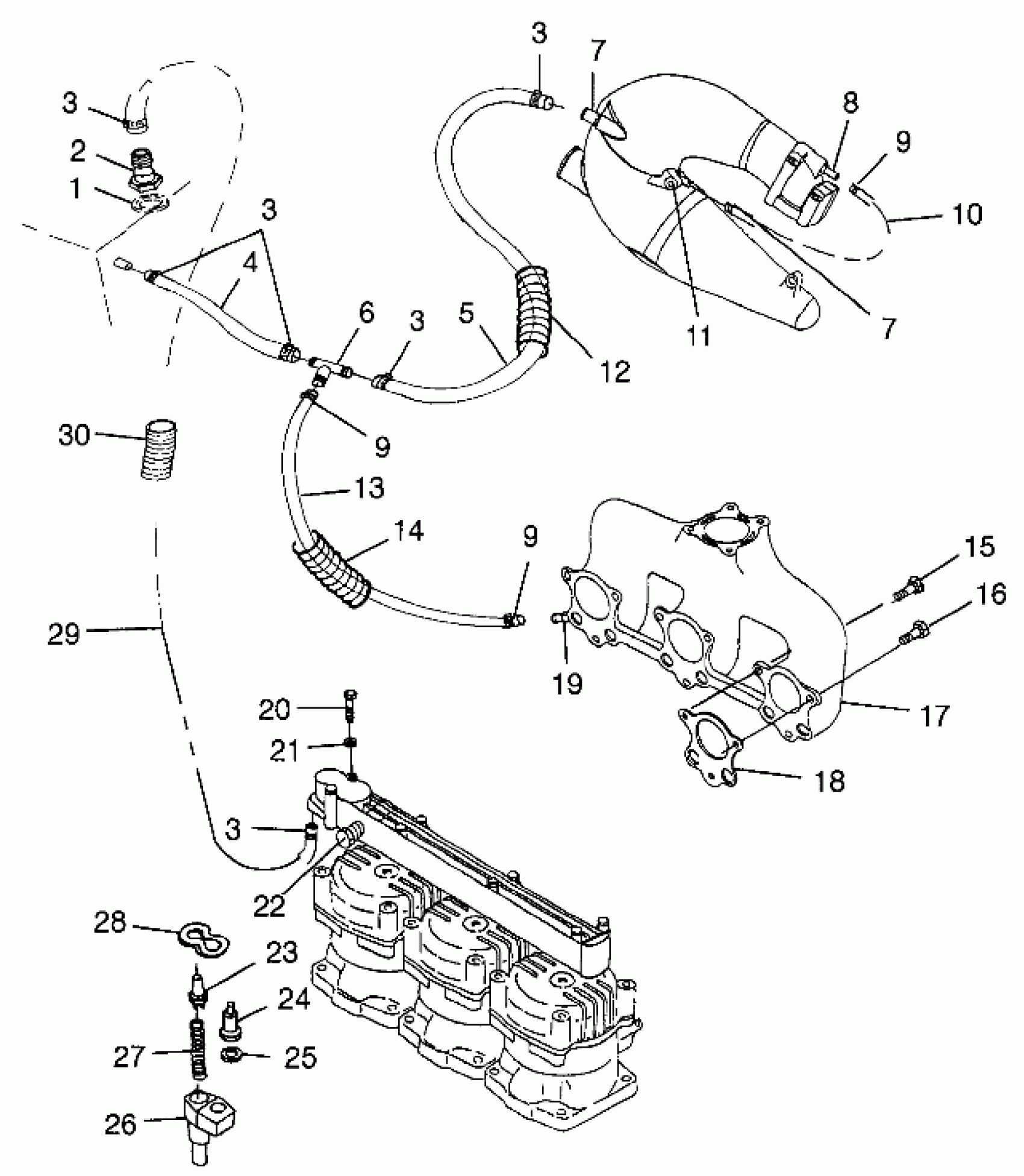

Polaris SLTX - B974590 COOLING SYSTEM SLTX B974590 and INTL. SLTX I974590 (4941214121B006) Diagram
#
1
Gasket
5811317
Unavailable
2
FITTING,THRU HULL,WATER Substituted by 5431444-133
5431444
Unavailable
3
CLAMP,HOSE,SS(10)
7080475
$10.39
3
CLAMP,HOSE,SS(10)
7080475
$10.39
3
CLAMP,HOSE,SS(10)
7080475
$10.39
3
CLAMP,HOSE,SS(10)
7080475
$10.39
3
CLAMP,HOSE,SS(10)
7080475
$10.39
4
HOSE,OUTLET,PUMP
5411336
Unavailable
5
HOSE,WATER INLET
5411335
Unavailable
6
FITTING,TEE
5431784
Unavailable
7
Fitting, Inlet, Water (See Pg. A20, Ref. 1)
-------
Unavailable
7
Fitting, Inlet, Water (See Pg. A20, Ref. 1)
-------
Unavailable
8
Fitting, Screen, Exhaust (See Pg. A20, Ref. 8)
-------
Unavailable
9
CLAMP, HOSE, S.S.(10)
7080476
$6.39
9
CLAMP, HOSE, S.S.(10)
7080476
$6.39
9
CLAMP, HOSE, S.S.(10)
7080476
$6.39
10
HOSE,STINGER
5411153
Unavailable
11
Fitting, Injector, Exhaust (See Pg. A20, Ref. 11)
-------
Unavailable
12
CONDUIT,FLEX,1.250ID
5521287-45
Unavailable
13
HOSE,WATER,50CM Substituted by 8450054-100
8450054-50
Unavailable
14
CONDUIT,FLEX(.75"ID) Substituted by 5521398-96
5521398-42
Unavailable
15
Bolt
7516727
Unavailable
16
BOLT, S.S,(10)
7516725
Unavailable
17
MANIFOLD ASM,EXH,(TRIPLE)
1260809
Unavailable
18
GASKET,EXH.FLNG
5811045
Unavailable
19
FITTING,DRAIN,EXH.MANIFOLD
5020746
Unavailable
20
SCREW,SHOULDER,S.S.(10)
7515149
Unavailable
21
WASHER(10)
7555836
$3.99
22
PLUG,PIPE(10)
7051527
Unavailable
23
VALVE, POP-OFF
5431588
Unavailable
24
THERMOSTAT, (143 F.)
7051008
Unavailable
25
GASKET, THERMOSTAT Substituted by 5412014
5410781
Unavailable
26
COVER,THERMOSTAT Substituted by 5631098
5131008
Unavailable
27
Spring, Compression
7041310
Unavailable
28
SEAL,O-RING/THERMO/FITTING
5410860
Unavailable
29
HOSE,WATER OUT,3/4 ID
5411310
Unavailable
30
CONDUIT,FLEX,1.250ID Substituted by 5521287-20
5521287-18
Unavailable
