STEERING SLTX B964590 and Intl. SLTX I964590 (4935783578A012)

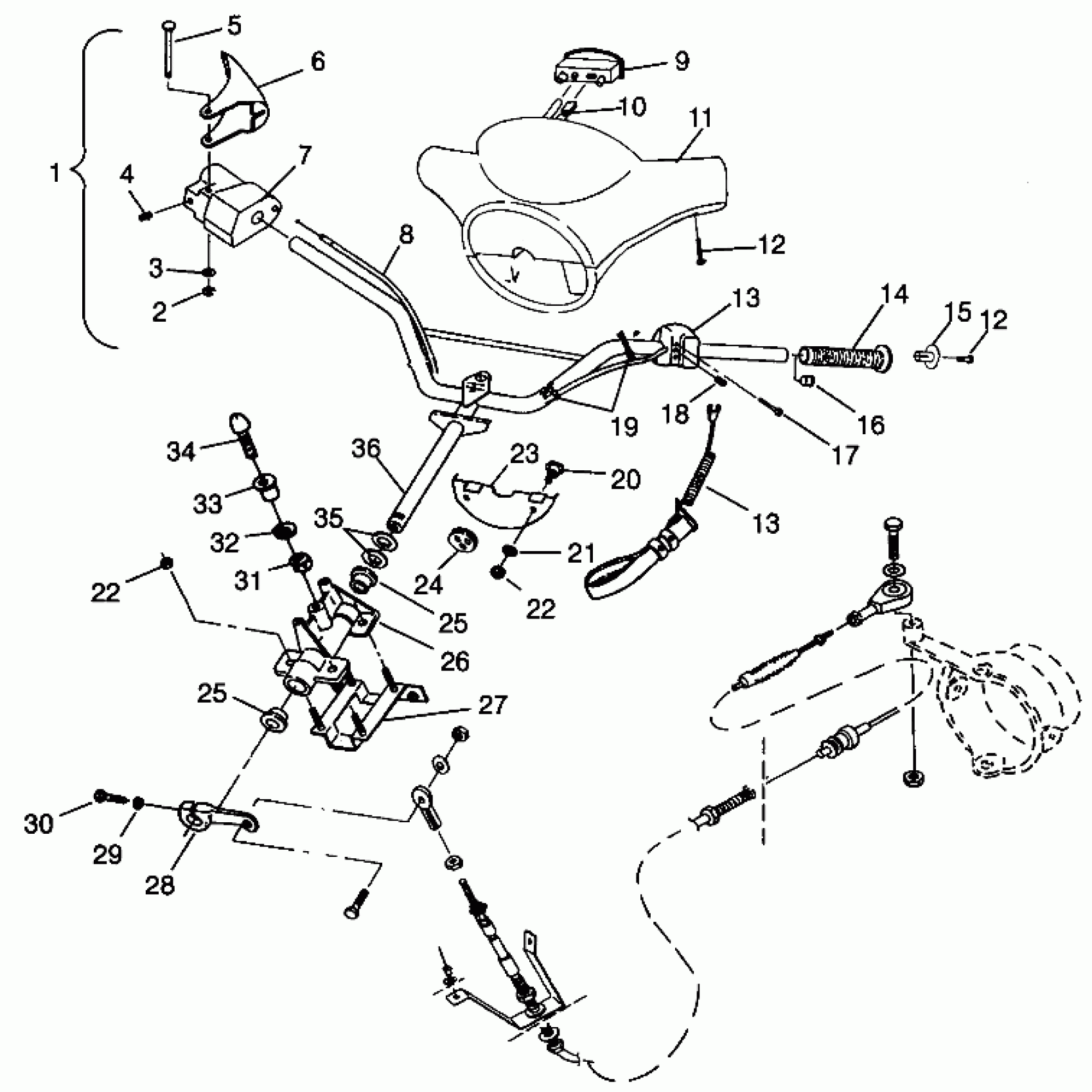

Polaris SLTX - B964590 STEERING SLTX B964590 and Intl. SLTX I964590 (4935783578A012) Diagram
#
1
THROTTLE CONTROL ASM. (Incl. 2-7)
2010122
Unavailable
2
RING,RETAIN.EXT.,S.S.(10)
7710426
Unavailable
3
WASHER, FLAT, S.S.(10)
7555840
$3.35
4
SCREW, SET, S.S.(10)
7515115
Unavailable
5
Pin, Retaining
7661628
Unavailable
6
LEVER,THROTTLE
5432372
Unavailable
7
BLOCK, THROTTLE
5432339
Unavailable
8
CABLE,THROTTLE
7080620
Unavailable
9
GAUGE,MULTI-FUNCTION
3280252
Unavailable
10
HARNESS,WIRE,MFD,(SLT )
2460582
Unavailable
11
PAD,H'BAR,CAR.BLUE
5431957-196
Unavailable
12
SCREW, SS.(10)
7512047
Unavailable
12
SCREW, SS.(10)
7512047
Unavailable
13
SW.,STOP,W/TETHER
4110154
Unavailable
13
SW.,STOP,W/TETHER
4110154
Unavailable
14
GRIP,H'BAR,PUR.WAVE(2)
5410638-214
Unavailable
15
PLUG,HANDGRIP,BLK.
7010082-070
Unavailable
16
CAPLUG(10)
7080467
Unavailable
17
SCREW(10)
7516602
Unavailable
18
SCREW, S.S.(10)
7516601
Unavailable
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
BOLT,SHOULDER(10)
7515387
Unavailable
21
WASHER, FLAT, S.S.(10)
7555831
Unavailable
22
NUT, HEX, S.S.(10)
7542335
Unavailable
22
NUT, HEX, S.S.(10)
7542335
Unavailable
23
PLATE,GROMMET
5240334
Unavailable
24
GROMMET,CABLE,MFD(SLT)
5411111
Unavailable
25
BUSHING,STRG.SUPPORT
5431382
Unavailable
25
BUSHING,STRG.SUPPORT
5431382
Unavailable
26
SUPPORT,STRG.HUB,BLK. Substituted by 5131509
5130974-067
Unavailable
27
PLATE, BOLT
1060101
Unavailable
28
ARM,STEERING,BLK. Substituted by 5131441
5130958-067
Unavailable
29
WASHER, LOCK, S.S.(10)
7552610
Unavailable
30
BOLT, S.S.(10)
7515375
Unavailable
31
NUT, HEX, S.S.,(10)
7542454
Unavailable
32
WASHER, FLAT(10)
7555841
Unavailable
33
CUSHION,PLUNGER
5521341
Unavailable
34
PLUNGER,LATCH
5020753
Unavailable
35
BUSH.(10)
7555875
Unavailable
36
POST,STEERING,W/H'BAR
1823175
Unavailable
