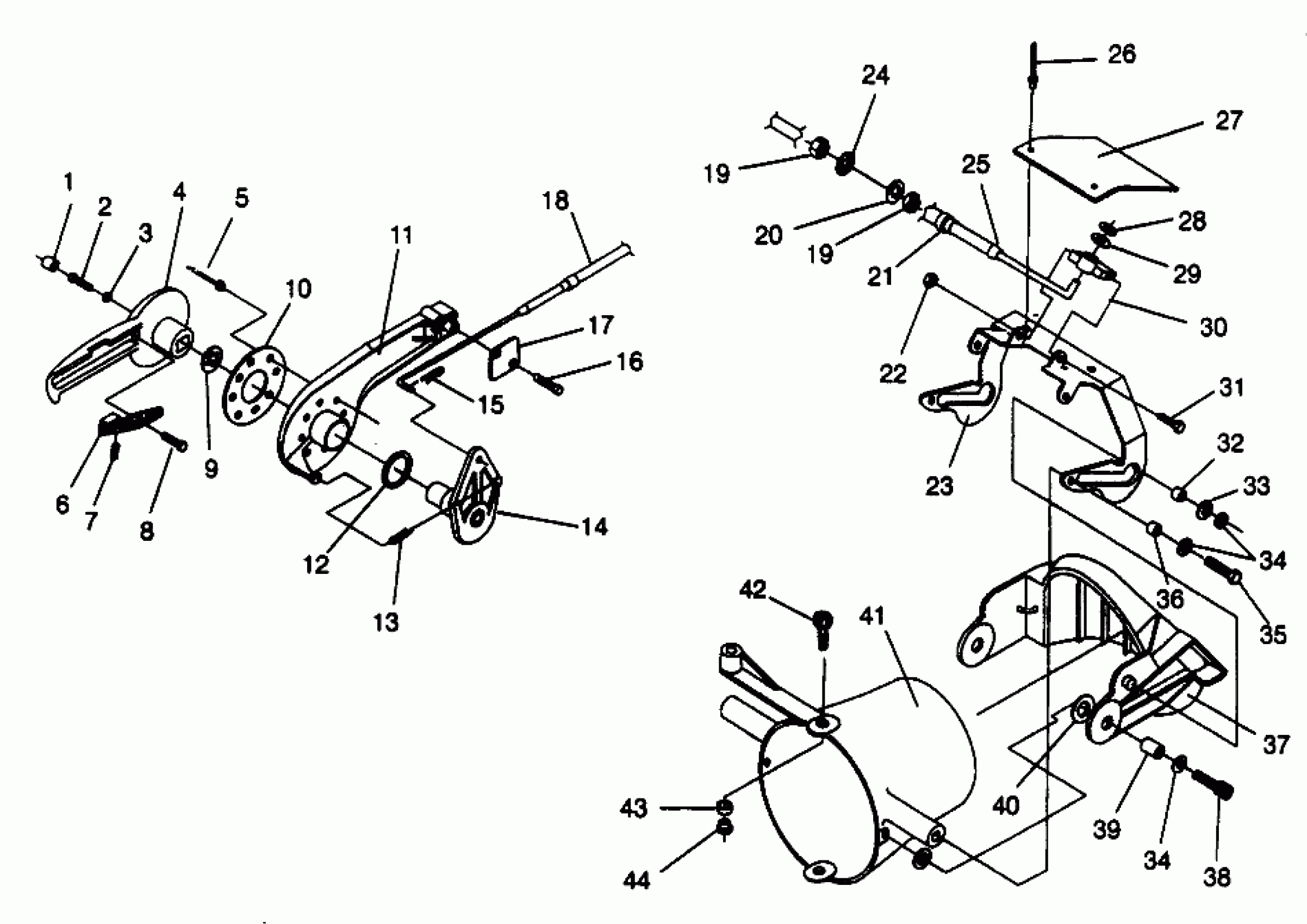

Polaris SLTX - B964590 REVERSE SLTX B964590 and Intl. SLTX I964590 (4935783578B011) Diagram

#

Description
Price

1

CAP,REV.LEVER,PUR.WAVE

5431696-214

Unavailable

2

SCREW, S.S.(10)

7515141

$1.37

3

WASHER, FLAT, S.S.(10)

7555839

Unavailable

4

LEVER,REV.PUR.WAVE

5431979-214

Unavailable

5

RIVET(50)

7621480

Unavailable

6

LOCK,REV.LEVER

5431525

Unavailable

7

SPRING,REVERSE LOCK

7041341

$3.81

8

SCREW(10)

7512065

Unavailable

9

RING,RETAINING(10)

7710430

$7.94

10

GASKET, REV.BRKT.

5810998

$2.46

11

BRKT,REV.LEVER

5431615

$11.51

12

O-RING

5410814

Unavailable

13

SPRING,DETENT,REV.

7041313

$2.62

14

ARM,REVERSE

5431980

$92.99

15

PIN, COTTER(10)

7661010

$1.19

16

SCREW(10)

7512049

Unavailable

17

PLATE,CABLE

5240257

Unavailable

18

CABLE,REVERSE

7080622

Unavailable

19

NUT (10)

7542528

$2.19

19

NUT (10)

7542528

$2.19

20

Washer

1860103

$3.33

21

COVER, STEERING

1860109

$2.14

22

NUT, HEX, S.S.(10)

7541931

$5.99

23

ACTUATOR,REV.GATE

5240139

Unavailable

24

WASHER, LOCK,S.S.(10)

7571625

$2.38

25

SEAL,ROD,STRG.

1860108

Unavailable

26

RIVET

7621478

Unavailable

27

SHIELD,REV.ACTUATOR

5431517

Unavailable

28

RING,RETAINING Substituted by 7080618

7710431

$1.75

29

WASHER, FLAT, S.S.(10)

7555837

$1.59

30

JOINT, ACTUATOR

5431632

$10.29

31

SCREW, S.S.(10)

7512063

Unavailable

32

BUSHING,ACTUATOR,(10)

5020686

Unavailable

33

RING-E,RET.(10)

7710427

Unavailable

34

WASHER,FLAT,S.S.(10)

7555874

$2.38

34

WASHER,FLAT,S.S.(10)

7555874

$2.38

35

BOLT, S.S.(10)

7515361

$2.19

36

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

37

GATE,REVERSE,BLK.

5431614

Unavailable

38

BOLT, S.S.(10)

7515368

Unavailable

39

Collar

5130938

Unavailable

40

SPACER,REVERSE GATE

5431506

Unavailable

41

NOZZLE,STRG,SLT

5130999

Unavailable

42

BOLT, S.S.(10)

7515366

Unavailable

43

Collar

5020683

$6.59

44

BRG,STRG.NOZZLE,(10)

5431518

Unavailable
