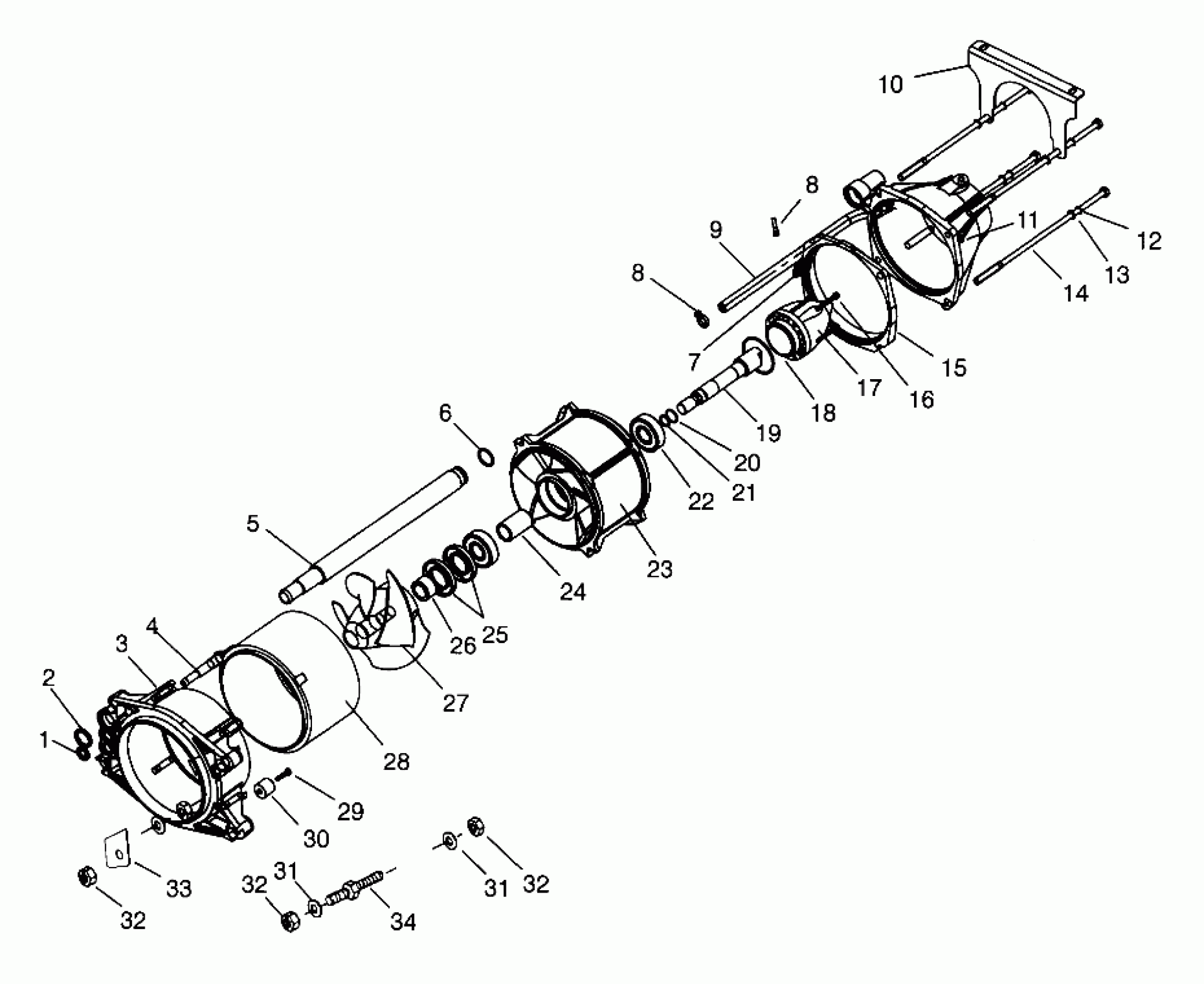

Polaris SLTX - B964590 PROPULSION SLTX B964590 and Intl. SLTX I964590 (4935783578B003) Diagram

#

Description
Price

1

SEAL,SIPHON TUBE

5411016

Unavailable

2

SEAL,WATER PIPE

5411107

Unavailable

3

HSG,PUMP,(148MM) Substituted by 5131815

5131311

Unavailable

4

PIPE,WATER BILGE (Flanged)

5020835

$49.59

5

PIPE,WATER.RESTRICTED [No Longer Available]

1060133

Unavailable

6

O RING,(10)

5410735

$0.79

7

SCREEN,ENG.INLET

5431523

Unavailable

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

DESC NOT_AVAILABLE

8450054-33

Unavailable

10

BRKT,PUMP,EXTENDED

5241876

Unavailable

11

NOZZLE ASM,1 TUBE

1350021

Unavailable

12

WASHER, LOCK, S.S.(10)

7552610

Unavailable

13

WASHER, FLAT, S.S.,(10)

7555835

$0.69

14

Bolt

7515389

Unavailable

15

WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841

5630662

Unavailable

16

SCREW,S.S.,ALLEN(10)

7512090

$1.75

17

Cone, Pump

5431519

Unavailable

18

O-RING(10)

5410819

$0.79

19

SHAFT, STUB Substituted by 5132674

5020697

$47.62

20

O-RING(10)

5410818

$0.79

21

O-RING,(10)

5410817

Unavailable

22

Bearing

3514008

Unavailable

23

STATOR,PUMP

5130983

Unavailable

24

Spacer

5010294

Unavailable

25

SEAL,BRG,STATOR

3610043

Unavailable

26

Spacer, Impeller

5010295

Unavailable

27

IMPELLER,17-23,3 BLADE,SS

5131366

Unavailable

28

EXTENSION,PUMP

5131196

$204.99

29

SCREW(10)

7522019

$0.95

30

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

31

Washer

7555966

$2.62

31

Washer

7555966

$2.62

32

NUT,HEX,S.S.(10)

7542455

Unavailable

32

NUT,HEX,S.S.(10)

7542455

Unavailable

32

NUT,HEX,S.S.(10)

7542455

Unavailable

33

BRKT,STRG.CABLE

5241741

Unavailable

34

STUD,MTG,PUMP

5020877

$4.37
