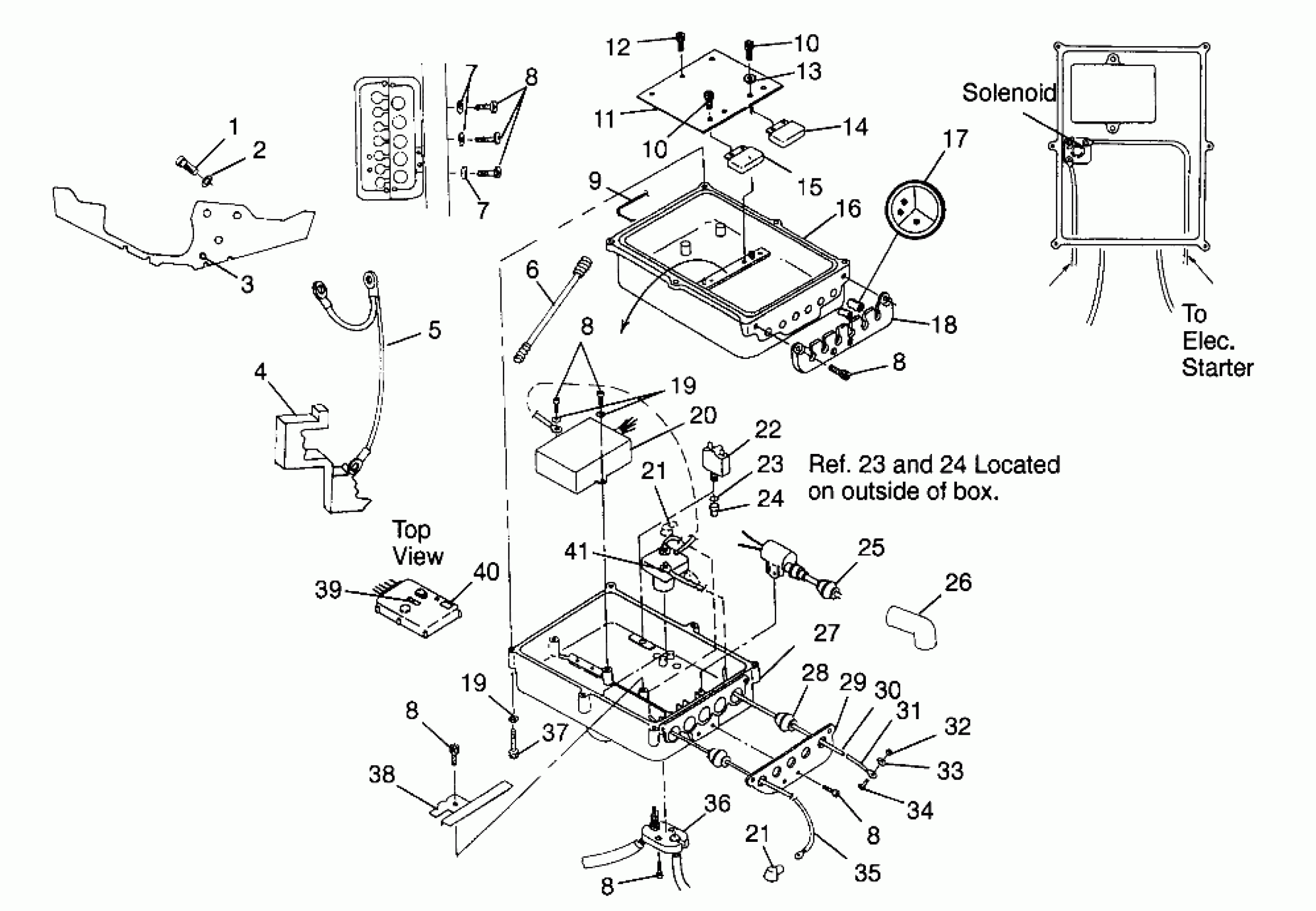

Polaris SLTX - B964590 ELECTRICAL BOX SLTX B964590 and Intl. SLTX I964590 (4935783578B010) Diagram

#

Description
Price

1

BOLT(10)

7515127

Unavailable

2

WASHER,S.S.(10)

7555891

$1.50

3

Grommet

5411158

Unavailable

4

T-CLIP(10)

7080471

$3.57

5

HARNESS,GND-CONTROL BOX

2460581

Unavailable

6

WIRE,JUMPER

4010117

Unavailable

7

WASHER,S.S.(10)

7555891

$1.50

7

WASHER,S.S.(10)

7555891

$1.50

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

8

BOLT, S.S.(10)

7515118

Unavailable

9

O-RING,(ELEC.BOX)

5410912

Unavailable

10

SCREW,S.S.(10)

7512072

$0.40

10

SCREW,S.S.(10)

7512072

$0.40

11

BOARD,TERMINAL

4040068

$19.68

12

BOLT, S.S.(10)

7512042

Unavailable

13

WASHER, LOCK(10)

7552615

Unavailable

14

SWITCH,LOWFUEL&O'HEAT

4060145

Unavailable

15

REGULATOR/RECT/CUT-OFF Substituted by 4060171

4060115

Unavailable

16

BOX,BOTTOM,ELEC.

5131256

Unavailable

17

O-RING,(10)

5410817

Unavailable

17

GROMMET,SECTION,2-HOLE

5410852

Unavailable

17

GROMMET,SECTION,NO HOLE

5410850

$2.14

18

PLATE,6-HOLE,CAST

5630497

Unavailable

19

WASHER(10)

7555836

$3.99

19

WASHER(10)

7555836

$3.99

20

Ignition, Coil Triple (See Pg., Ref.)

----

Unavailable

21

INSULATOR-CABLE

5410346

$7.73

21

INSULATOR-CABLE

5410346

$7.73

22

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

23

O-RING

5410725

$1.03

24

BOOT,THREADED,RED

7080461

$13.99

25

GROMMET, COIL

5410677

Unavailable

26

CAP,SPARK PLUG

4020159

Unavailable

27

TOP, ELEC.BOX

5131174

$73.81

28

GROMMET, 16 GA.(10)

5410678

$2.14

29

PLATE, 5-HOLE

5630416

Unavailable

30

CABLE,RED,SOL./START.

4010081

Unavailable

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

32

NUT, 6 MM.,S.S.(10)

7546705

$4.76

33

WASHER, LOCK(10)

7552613

Unavailable

34

BOLT(10)

7516809

Unavailable

35

CABLE,RED,BATT/SOL.

4010082

Unavailable

36

PLATE, 2-HOLE

5630415

$12.30

37

BOLT(10)

7515119

Unavailable

38

BRKT,COIL RETAINER

5241182

$19.68

39

DECAL,WARN,HI.VOLT.

7073713

Unavailable

40

DECAL,ELECT.BOX RESET

7073734

Unavailable

41

Switch, Starter/Solenoid (See Pg., Ref.)

----

Unavailable
