CYLINDER & MANIFOLD SLTX B964590 and Intl. SLTX I964590 (4935783578C001)

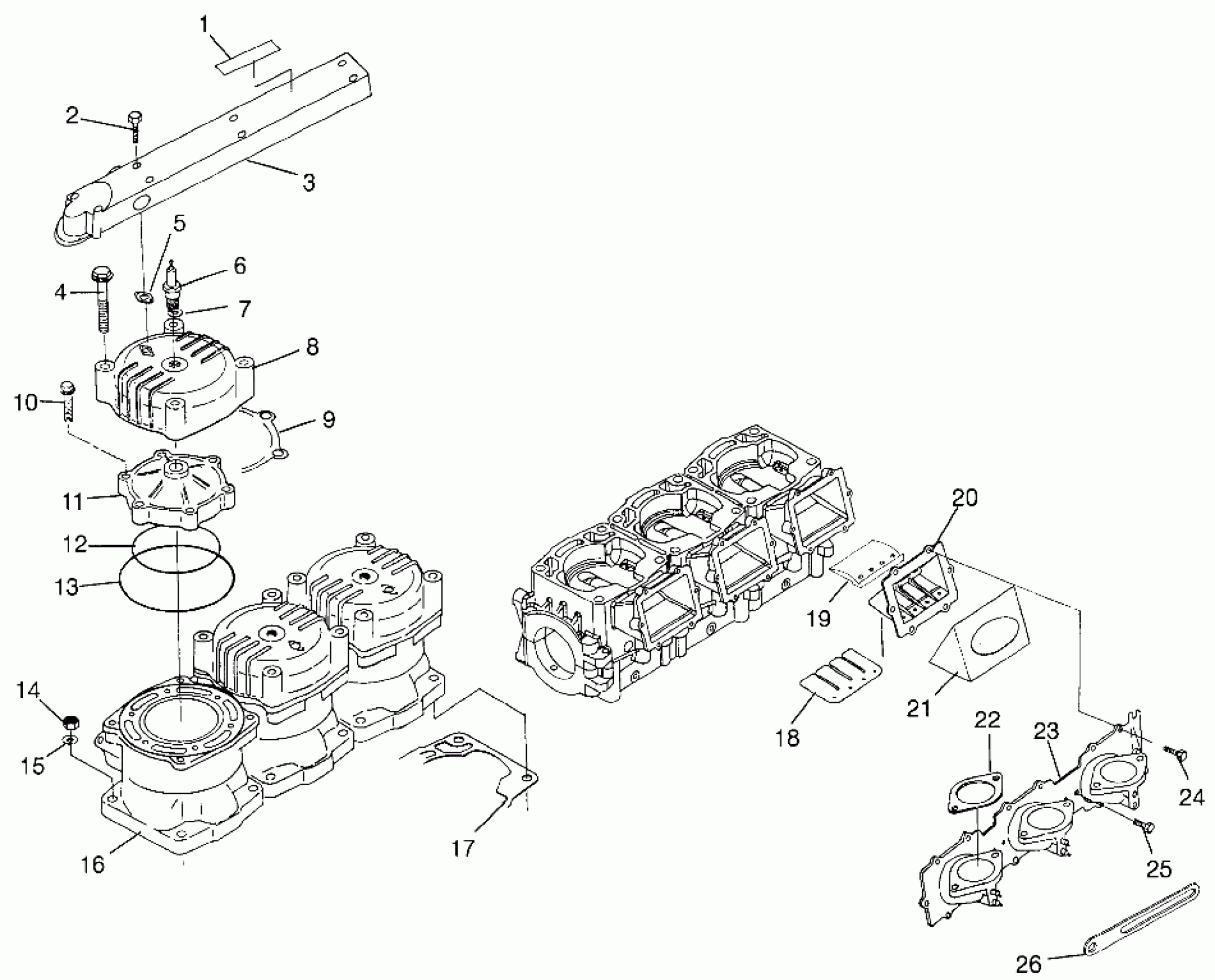

Polaris SLTX - B964590 CYLINDER & MANIFOLD SLTX B964590 and Intl. SLTX I964590 (4935783578C001) Diagram
#
Description
Price
-
KIT,GASKET,TOP END,1050 TRIPLE (1050 Triple) (Incl. 7, 12, 13, 17)
2200825
Unavailable
-
KIT,GASKETSET,(1050 TRPL) [Cannot Purchase as Assembly] (1050 Triple) (Incl. 5, 7, 12, 13, 17)
2200814
Unavailable
1
Decal, Warning
7075383
Unavailable
2
BOLT(10)
7516806
Unavailable
3
MANIFOLD,WATER,3CYL,FR.RED Substituted by 5630789-093
1240027-093
Unavailable
4
BOLT(10)
7516722
Unavailable
5
GASKET,WATER MANIF.
5830061
Unavailable
6
SPARKPLUG, BPR-8ES(10) (BPR8ES)
3070174
Unavailable
7
O-RING(10)
5410917
$1.49
8
COVER,HEAD,RED,BIG BORE
5630527-093
Unavailable
9
RING,HEAD,81MM-SS
5241944
Unavailable
10
BOLT(10) Substituted by 7517251
7516724
Unavailable
11
HEAD,CYLINDER,81MM
3022034
Unavailable
12
O-RING
5410932
$20.22
13
O-Ring
5410931
Unavailable
14
NUT(10)
7547013
$1.99
15
WASHER,FLAT (10)
7555985
Unavailable
16
CYLINDER,81MM,PWC Substituted by 3021018
3021009
Unavailable
17
GASKET,CYL.BASE (Use after Engine Serial #14865)
5830123
Unavailable
17
GASKET,CYL.BASE (Use for Engine Serial #14865 and before)
5811057
$7.67
18
KIT,REED VALVES (Incl. Valve & Screws)
2200822
Unavailable
19
STUFFER,(900/1050 PWC)
5411252
Unavailable
20
REED BLOCK ASM,TRIPLE
1201595
Unavailable
21
STUFFER-REED BLOCK
5432162
Unavailable
22
GASKET,CARB.
5830043
Unavailable
23
ADAPTOR,CARB,3 CYL.
5630582
Unavailable
24
BOLT(10)
7516807
Unavailable
25
BOLT(10)
7516814
Unavailable
26
RETAINER,SS.
7080654
$18.32
