PROPULSION - B994596 (4955995599b003)

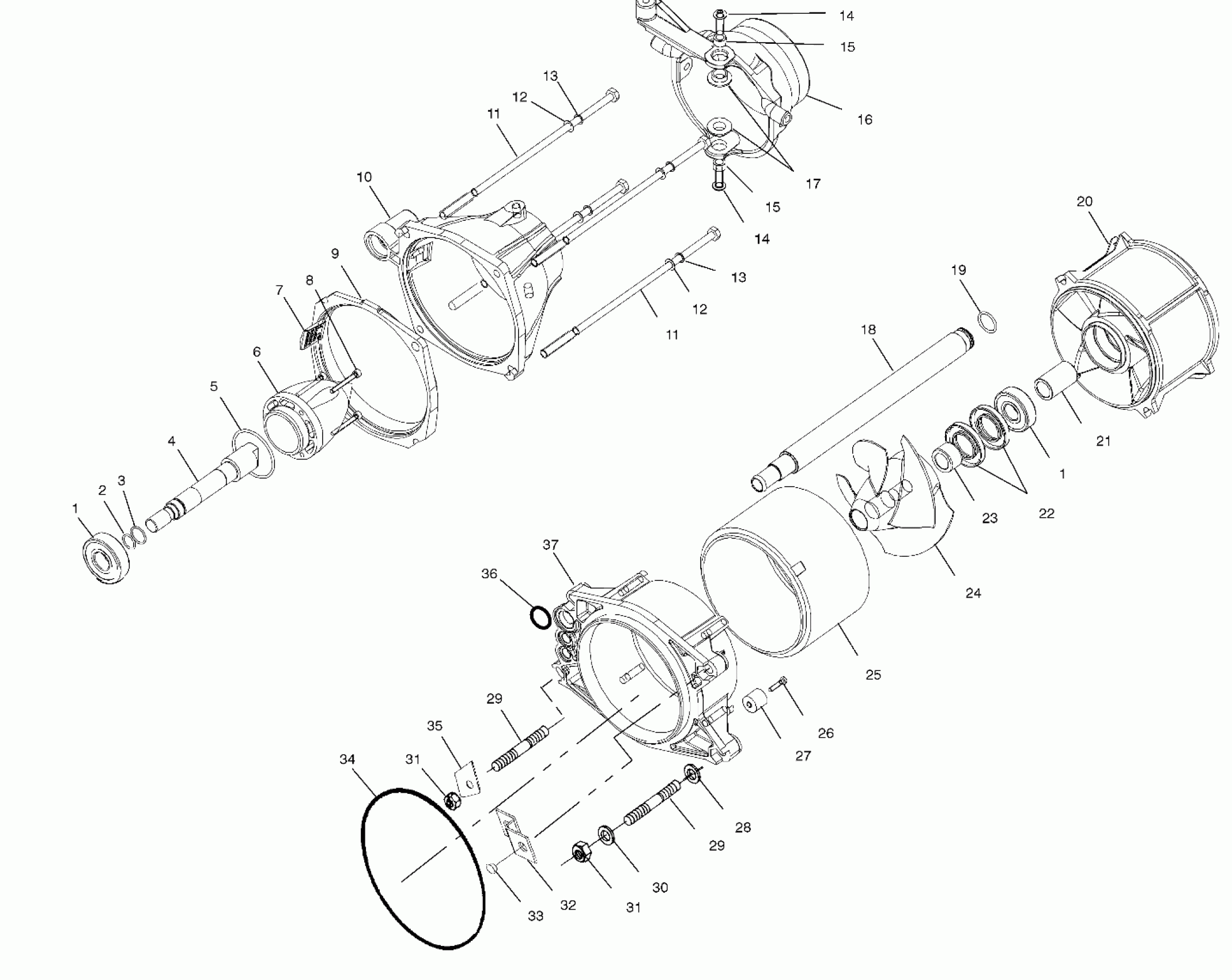

Polaris SLTX-B - B994596 PROPULSION - B994596 (4955995599b003) Diagram
#
1
Bearing
3514008
Unavailable
1
Bearing
3514008
Unavailable
2
O-RING,(10)
5410817
Unavailable
4
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
5
O-RING
5411716
Unavailable
6
Cone, Pump
5431519
Unavailable
7
SCREEN,ENG.INLET
5431523
Unavailable
8
SCREW(10)
7512064
Unavailable
9
WEDGE,PUMP,0X4,MOLDED
5432841
Unavailable
10
NOZZLE,STAT.,0X4 WEDGE
5131569
Unavailable
11
Bolt
7515389
Unavailable
11
Bolt
7515389
Unavailable
12
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
12
WASHER, FLAT, S.S.,(10)
7555835
Unavailable
13
WASHER, LOCK, S.S.(10)
7552610
Unavailable
13
WASHER, LOCK, S.S.(10)
7552610
Unavailable
14
BOLT, S.S.(10)
7515366
Unavailable
14
BOLT, S.S.(10)
7515366
Unavailable
15
Collar
5130938
Unavailable
15
Collar
5130938
Unavailable
16
NOZZLE,STRG,EXT.
5131363
Unavailable
17
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
18
PIPE-WATER,ENGINE,X-PUMP .406
5433545
Unavailable
19
O RING,(10)
5410735
Unavailable
20
STATOR,SS,HI-PERF. Substituted by 5132088
5131711
Unavailable
21
Spacer
5010294
Unavailable
22
SEAL,BRG,STATOR
3610043
Unavailable
23
Spacer, Impeller
5010295
Unavailable
24
IMPELLER-7.0,.550 CLEARANCE
5132202
Unavailable
25
EXTENSION,PUMP
5131196
Unavailable
26
SCREW(10)
7522019
Unavailable
27
ANODE-ZINC Substituted by 2200745
5630598
Unavailable
28
WASHER,PUMPSTUD,SEAL
7555941
Unavailable
29
STUD,MOUNT,PUMP,LONG INT.
5132111
Unavailable
29
STUD,MOUNT,PUMP,LONG INT.
5132111
Unavailable
30
WASHER,FLAT,S.S.(10)
7555874
$2.39
31
NUT, HEX, S.S.(10)
7541931
$4.79
31
NUT, HEX, S.S.(10)
7541931
$4.79
32
BRKT,SILENCER,SHORT
5243742
Unavailable
33
Bumper, Rubber
5410414
$3.19
34
O-RING,PUMP HSG/HULL
5410652
Unavailable
35
BRKT,STRG.CABLE
5241741
Unavailable
36
SEAL,WATER PIPE
5411107
Unavailable
37
HSG,PUMP,W/O RING,INT STUD
5131573
Unavailable
