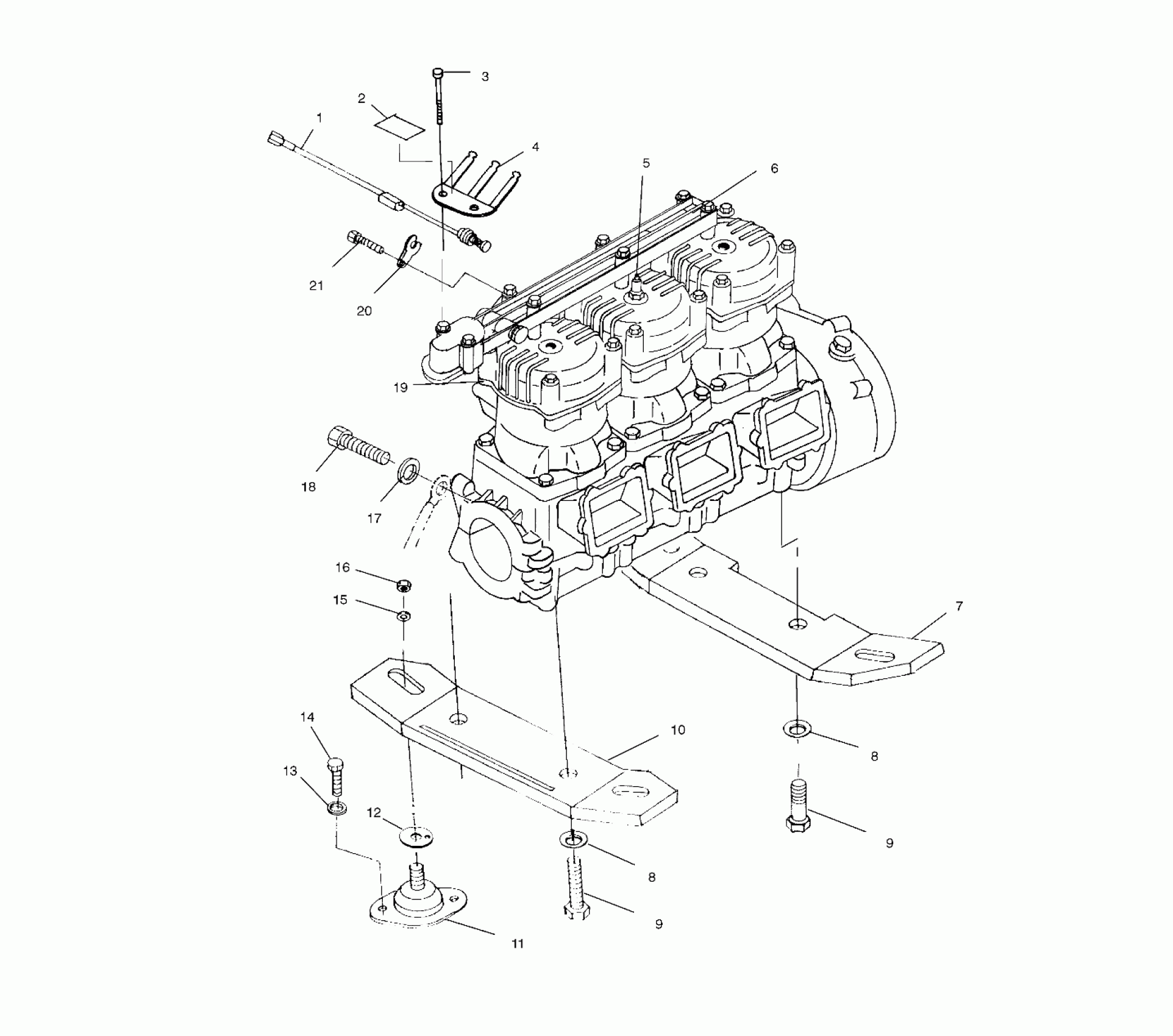

Polaris SLTX-B - B994596 ENGINE MOUNTING - B994596 (4955995599b001) Diagram

#

Description
Price

1

SWITCH ASM,TEMP(NO GROMMET)

2410075

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.94

3

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

4

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

5

Spark Plug, NGK BPR8ES (See Footnote) (See Cylinder and Manifold Pg. B14, Ref. 5)

----

Unavailable

6

Decal - Warning (See Footnote) (See Cylinder and Manifold Pg. B14, Ref. 2)

----

Unavailable

7

PLATE,F.MOUNT Substituted by 5631128

5630585

$102.38

8

WASHER,LOCK,S.S.

7552609

$1.75

8

WASHER,LOCK,S.S.

7552609

$1.75

9

SCREW, SS.

7517330

Unavailable

9

SCREW, SS.

7517330

Unavailable

10

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

11

MOUNT-ENGINE,PWC Substituted by 3021208

3021103

$73.81

12

SHIM,ENG.MT.(PWC)

5211727

Unavailable

13

WASHER, LOCK, S.S.(10)

7552610

Unavailable

14

SCREW(10)

7517627

Unavailable

15

WASHER, FLAT, S.S.(10)

7555848

Unavailable

16

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

$3.59

17

WASHER,LOCK,SS.

7556055

Unavailable

18

BOLT,SS.

7517497

$3.97

19

SHORTBLOCK,KIT,1200 TRIPLE Substituted by 2201704 (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201446

Unavailable

20

CLIP,RETAIN,TEMP.SW.

5240876

$4.99

21

BOLT,(1)

7516603

$10.32
