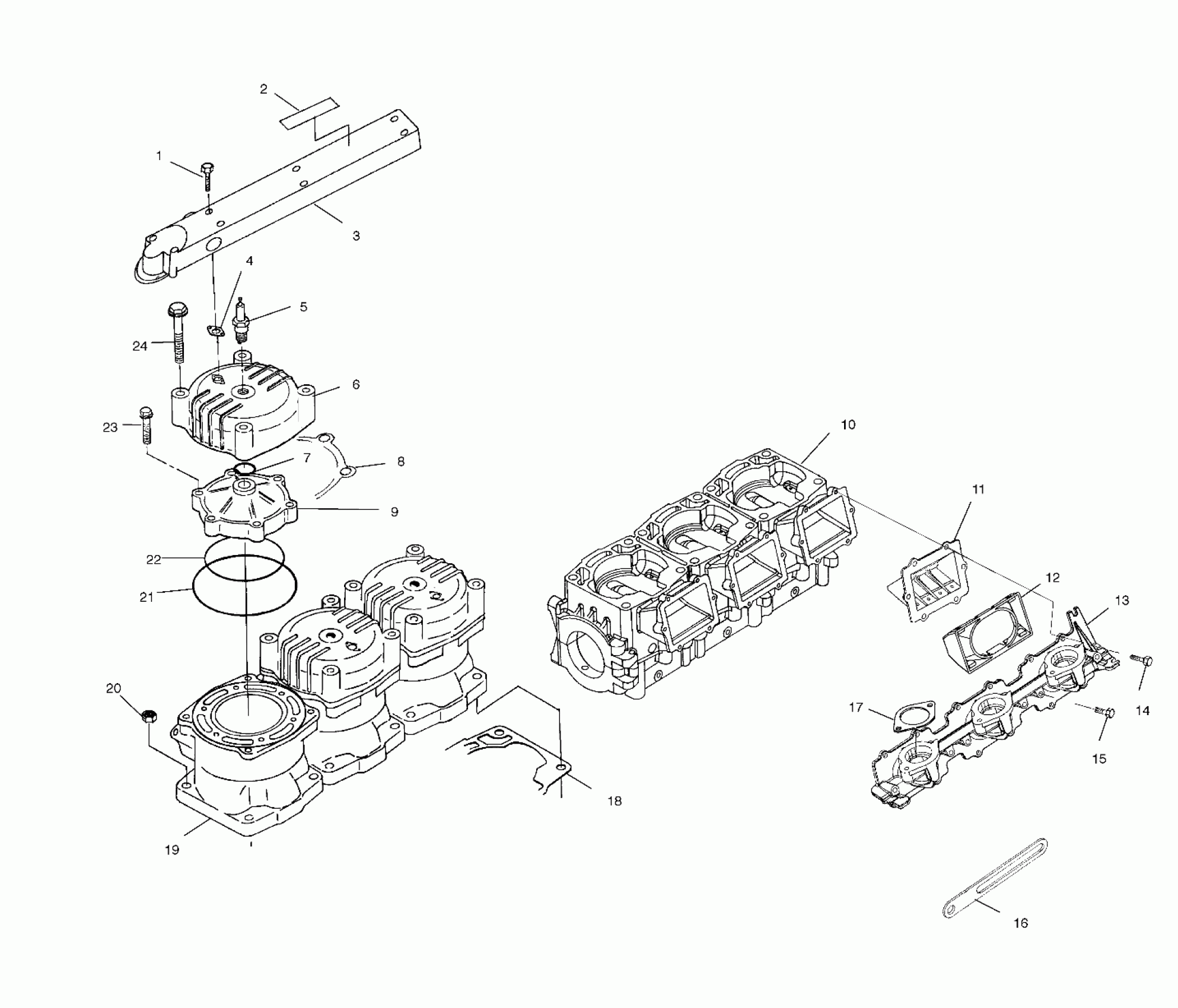

Polaris SLTX-B - B994596 CYLINDER and MANIFOLD - B994596 (4955995599b014) Diagram

#

Description
Price

1

BOLT(10)

7516806

Unavailable

2

Decal, Warning

7075383

Unavailable

3

MANIFOLD-WATER OUT,3 CYL,RED

5630942-093

Unavailable

4

GASKET,WATER MANIF.

5830061

Unavailable

5

SPARKPLUG, BPR-8ES(10)

3070174

Unavailable

6

COVER,HEAD,RED,BIG BORE

5630527-093

Unavailable

7

O-RING(10)

5410917

$1.49

8

RING,HEAD,81MM-SS

5241944

Unavailable

9

HEAD,CYLINDER,84MM PWC,HC

3021107

Unavailable

10

Kit - Asm., Triple Crankcase (See Crankcase Pg. B13, Ref.1)

-------

Unavailable

11

REED BLOCK ASM,TRIPLE

1201595

Unavailable

12

STUFFER-REED BLOCK

5432162

Unavailable

13

ADAPTOR,CARB,3 CYL.

5630582

Unavailable

14

BOLT(10)

7516807

Unavailable

15

BOLT(10)

7516814

Unavailable

16

RETAINER,SS.

7080654

$18.32

17

GASKET-CARB,2MM

5830174

Unavailable

18

GASKET,CYL.BASE

5830123

Unavailable

19

CYLINDER-84MM,PWC

3021017

Unavailable

20

NUT

7547021

$6.99

21

O-Ring

5410931

Unavailable

22

O-RING-90MMX94MMX2MM,HI-TEMP

5411573

Unavailable

23

SCREW, S.S.

7517352

Unavailable

24

BOLT(10)

7516722

Unavailable
