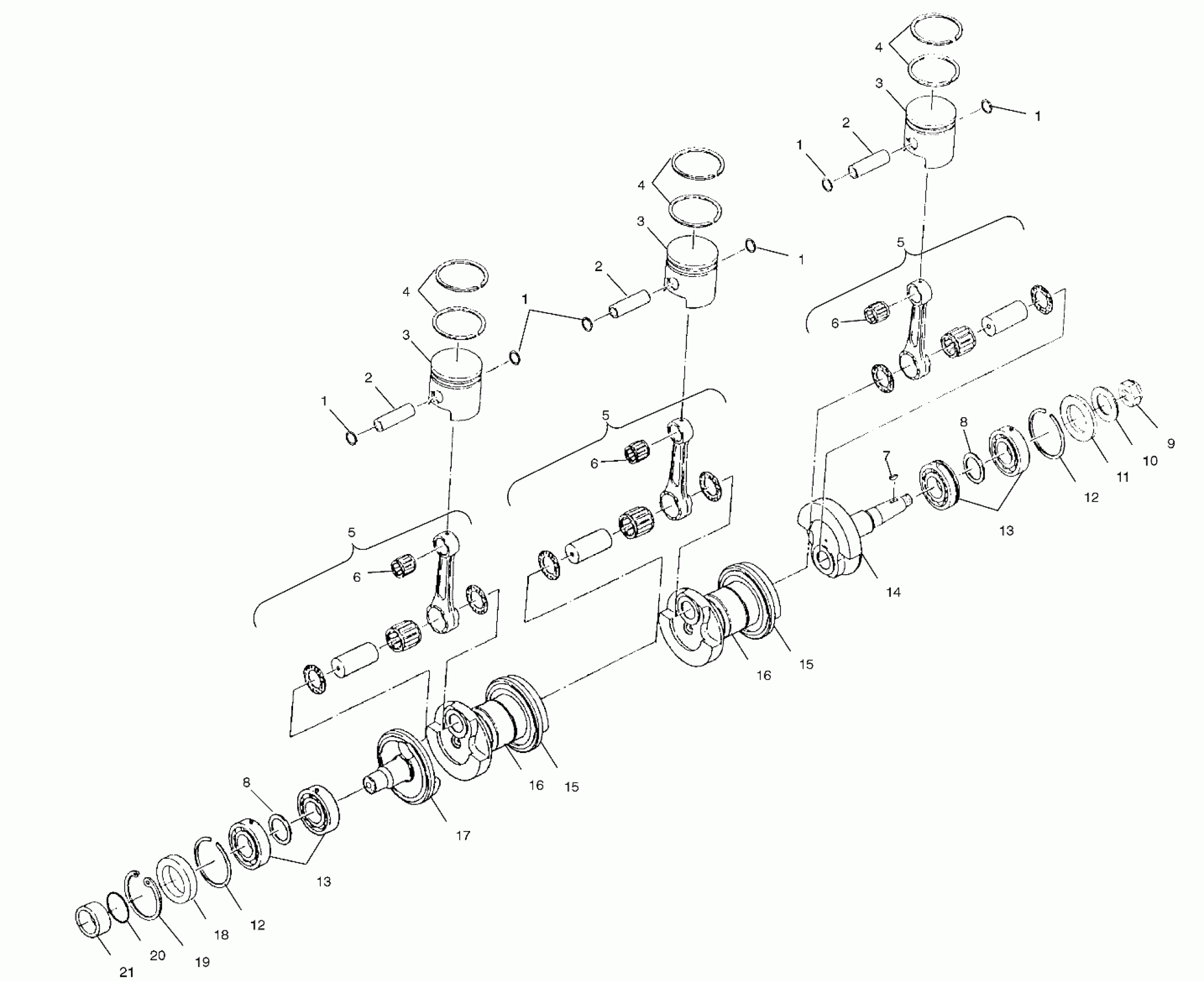

Polaris SLTX-B - B994596 CRANKSHAFT and PISTON - B994596 (4955995599c002) Diagram

#

Description
Price

-

CRANKSHAFT,ASM,1200 TRIPLE (Incl. 8,13-17)

2201444

Unavailable

1

CIRCLIP,PISTON,22MM(2)

3023031

Unavailable

1

CIRCLIP,PISTON,22MM(2)

3023031

Unavailable

1

CIRCLIP,PISTON,22MM(2)

3023031

Unavailable

1

CIRCLIP,PISTON,22MM(2)

3023031

Unavailable

1

CIRCLIP,PISTON,22MM(2)

3023031

Unavailable

2

PIN,PISTON Substituted by 3021164

3023030

$17.97

2

PIN,PISTON Substituted by 3021164

3023030

$17.97

2

PIN,PISTON Substituted by 3021164

3023030

$17.97

3

PISTON KIT,ASM,84MM,STD Substituted by 2201706 (Std.)(Incl.1,2,4)

2201452

$185.99

3

PISTON,KIT,ASM,84MM,.25 OS Substituted by 2201707 (.25mm O/S) (Incl.1,2,4)

2201453

Unavailable

3

PISTON,KIT,ASM,84MM,.50 OS Substituted by 2201708 (.50mm O/S) (Incl. 1,2,4)

2201454

$226.99

3

PISTON KIT,ASM,84MM,STD Substituted by 2201706 (Std.)(Incl.1,2,4)

2201452

$185.99

3

PISTON,KIT,ASM,84MM,.25 OS Substituted by 2201707 (.25mm O/S) (Incl.1,2,4)

2201453

Unavailable

3

PISTON,KIT,ASM,84MM,.50 OS Substituted by 2201708 (.50mm O/S) (Incl. 1,2,4)

2201454

$226.99

3

PISTON KIT,ASM,84MM,STD Substituted by 2201706 (Std.)(Incl.1,2,4)

2201452

$185.99

3

PISTON,KIT,ASM,84MM,.25 OS Substituted by 2201707 (.25mm O/S) (Incl.1,2,4)

2201453

Unavailable

3

PISTON,KIT,ASM,84MM,.50 OS Substituted by 2201708 (.50mm O/S) (Incl. 1,2,4)

2201454

$226.99

4

RING,KIT,84MM.STD (Standard)

2201449

Unavailable

4

RING,KIT,84MM.25,O/S (.25mm O/S)

2201450

$85.54

4

RING,KIT,84MM.50,O/S (.50mm O/S)

2201451

$108.24

4

RING,KIT,84MM.STD (Standard)

2201449

Unavailable

4

RING,KIT,84MM.25,O/S (.25mm O/S)

2201450

$85.54

4

RING,KIT,84MM.50,O/S (.50mm O/S)

2201451

$108.24

4

RING,KIT,84MM.STD (Standard)

2201449

Unavailable

4

RING,KIT,84MM.25,O/S (.25mm O/S)

2201450

$85.54

4

RING,KIT,84MM.50,O/S (.50mm O/S)

2201451

$108.24

5

CONNE,ROD KIT ASM.

2201445

$211.74

5

CONNE,ROD KIT ASM.

2201445

$211.74

5

CONNE,ROD KIT ASM.

2201445

$211.74

6

BEARING,17NDL,PSTNPIN.

3552112

Unavailable

6

BEARING,17NDL,PSTNPIN.

3552112

Unavailable

6

BEARING,17NDL,PSTNPIN.

3552112

Unavailable

7

KEY,WOODRUFF(10)

7721117

$29.99

8

BUSHING(10)

7555905

$3.99

8

BUSHING(10)

7555905

$3.99

9

Nut (See Magneto Pg. C4, Ref. 11)

----

Unavailable

10

Washer (See Magneto Pg. C4, Ref. 10)

----

Unavailable

11

Seal

3610044

$24.27

12

RING,RETAINING,(10)

7710441

Unavailable

12

RING,RETAINING,(10)

7710441

Unavailable

13

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

13

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

14

Desc not available [No Longer Available]

5131744

Unavailable

15

Desc not available [No Longer Available]

5131745

Unavailable

15

Desc not available [No Longer Available]

5131745

Unavailable

16

Labyrinth

5131086

Unavailable

16

Labyrinth

5131086

Unavailable

17

Desc not available [No Longer Available]

5131746

Unavailable

18

SEAL,TYPE BA SL

5411524

Unavailable

19

RING,RETAINING(10)

7710435

Unavailable

20

O RING,(10)

5410613

$1.98

21

COLLAR,CRANKSHAFT

5131195

Unavailable
