Description

Price

1

BUMPER,OVAL,2 PIN

5224854

Unavailable

2

U-BOLT,SEAT RETAINER

5224750

Unavailable

3

NUT

7542334

$1.49

4

WASHER,RUBBER

7555950

Unavailable

5

WASHER, FLAT, S.S.,(10)

7555835

Unavailable

6

NUT, HEX, S.S.(10)

7542335

Unavailable

7

NUT,HEX,S.S.(10)

7542455

Unavailable

7

NUT,HEX,S.S.(10)

7542455

Unavailable

8

WASHER, FLAT(10)

7555845

Unavailable

8

WASHER, FLAT(10)

7555845

Unavailable

9

PAD,RH,HEEL

5830034

Unavailable

10

SEAL, SEAT

5521382

Unavailable

11

PLUNGER,LATCH

5020753

Unavailable

12

NUT, HEX, S.S.,(10)

7542454

Unavailable

13

WASHER, FLAT(10)

7555841

Unavailable

14

WASHER, LOCK, S.S.(10)

7552607

Unavailable

15

SCREW(10)

7515388

Unavailable

16

HOOK,SKI-TOW

7061002

Unavailable

17

PAD,LH,HEEL

5830033

Unavailable

18

Pad, Footwell, Rear, LH (See Footnote) (See Hull and Body Pg. A5, Ref. 40)

-------

Unavailable

19

Pad, Footwell, Center (See Footnote) (See Hull and Body Pg. A5, Ref. 34)

-------

Unavailable

20

Pad, Footwell, Front, LH (See Footnote) (See Hull and Body Pg. A5, Ref. 33)

-------

Unavailable

21

STRAP, BOW

2670150

Unavailable

22

WASHER,RUBBER(10)

7555870

Unavailable

23

WASHER, FLAT, S.S.(10)

7555839

Unavailable

24

NUT,NYLOK,S.S.(10)

7542133

Unavailable

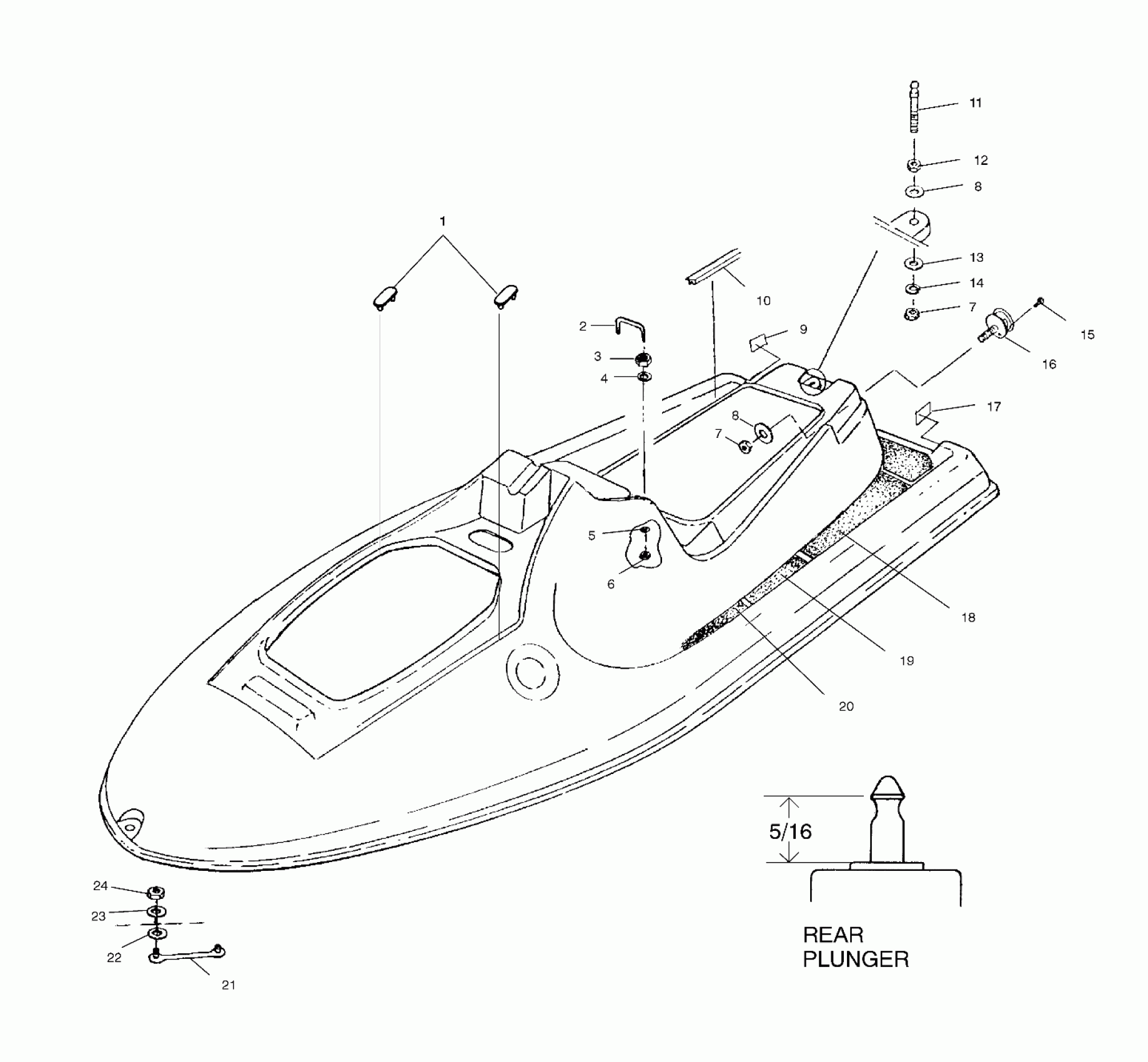

Polaris SLTH - B994573 HULL and BODY - B994573 (4951395139a006) Diagram

BUMPER,OVAL,2 PIN

U-BOLT,SEAT RETAINER

NUT

WASHER,RUBBER

WASHER, FLAT, S.S.,(10)

NUT, HEX, S.S.(10)

NUT,HEX,S.S.(10)

NUT,HEX,S.S.(10)

WASHER, FLAT(10)

WASHER, FLAT(10)

PAD,RH,HEEL

SEAL, SEAT

PLUNGER,LATCH

NUT, HEX, S.S.,(10)

WASHER, FLAT(10)

WASHER, LOCK, S.S.(10)

SCREW(10)

HOOK,SKI-TOW

PAD,LH,HEEL

Pad, Footwell, Rear, LH (See Footnote) (See Hull and Body Pg. A5, Ref. 40)

Pad, Footwell, Center (See Footnote) (See Hull and Body Pg. A5, Ref. 34)

Pad, Footwell, Front, LH (See Footnote) (See Hull and Body Pg. A5, Ref. 33)

STRAP, BOW

WASHER,RUBBER(10)

WASHER, FLAT, S.S.(10)

NUT,NYLOK,S.S.(10)
