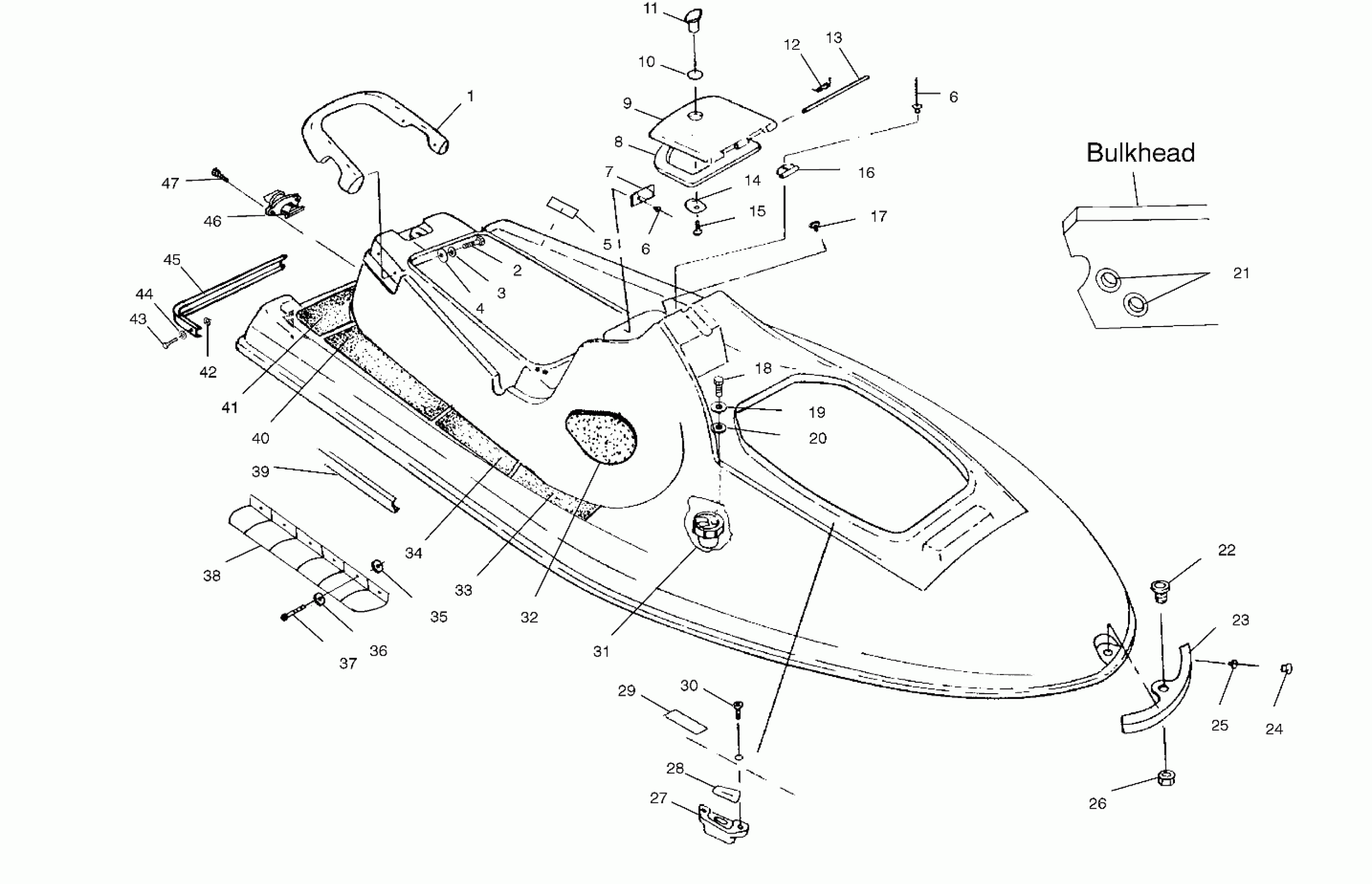

Polaris SLTH - B994573 HULL and BODY - B994573 (4951395139a005) Diagram

#

Description
Price

1

HANDLE,GRAB,BLK.

5431392-070

Unavailable

2

BOLT, S.S.(10)

7515361

$2.19

3

WASHER, LOCK, S.S.(10)

7552610

Unavailable

4

WASHER,FLAT,S.S.(10)

7555874

$2.38

5

DECAL,WARN.SEAT/ENG. Substituted by 7078311

7077196

Unavailable

6

RIVET(50)

7621479

$1.98

6

RIVET(50)

7621479

$1.98

7

PLATE,CONSOLE

5240138

$1.98

8

SEAL,CONSOLE

5521284

$13.89

9

LID-CONSOLE,PEARLSTONE

5431602-277

$139.99

10

O RING

5410589

$4.99

11

KNOB-CONSOLE,STORAGE LID,PRLST

5431514-277

Unavailable

12

SPRING,CONSOLE LID

7041333

Unavailable

13

PIN,HINGE

5333185

$43.99

14

LATCH,CONSOLE

5240137

Unavailable

15

SCREW, S.S.(10)

7515143

$0.59

16

HINGE-CONSOLE STORAGE LID,PRLS

5431515-277

Unavailable

17

CLIP,PLASTIC DART(10)

7670078

$3.79

18

SCREW, S.S.(10)

7516805

$0.71

19

WASHER, LOCK(10)

7552613

Unavailable

20

WASHER,RUBBER(10)

7555870

$0.40

21

Grommet

5411158

Unavailable

22

GROMMET,BOW EYE,BLK.

5431950-070

Unavailable

23

BUMPER,FR,TALL,BLACK

5411063-070

$77.78

24

PLUG,(10)R.BUMP,BLK

5431994-070

$3.97

25

RIVET(50)

7621511

Unavailable

26

NUT,BOW EYE,BLK.

5431951-070

$15.99

27

STOP,DOOR SUPPORT

5431960

Unavailable

28

SEAL,DOOR SUPPORT

5810571

Unavailable

29

DECAL,DOOR,COMPARTMENT

7073717

Unavailable

30

SCREW(10)

7512049

Unavailable

31

Separator, Fuel/Water (See Drain Pg. C7, Ref. 1)

----

Unavailable

32

PAD-KNEE,SLT,LH,PEARLSTONE Substituted by 5811810-277

5811761-277

Unavailable

32

PAD-KNEE,SLT,RH,PEARLSTONE Substituted by 5811811-277

5811762-277

$22.22

33

PAD,RH,F.F'WELL,GRV,BLK.

5811476-070

Unavailable

33

PAD,LH.F,F'WELL,GRV,BLK.

5811475-070

Unavailable

34

PAD,CTR.F'WELL,GRV,BLK.

5811474-070

Unavailable

35

WASHER,(10)

5811440

$2.06

36

WASHER, FLAT, S.S.(10)

7555839

Unavailable

37

SCREW,(10)

7515198

Unavailable

38

SPONSON-23",RH,PWC WHITE

5432273-207

Unavailable

38

SPONSON-23",LH,PWC WHITE

5432272-207

$40.95

39

RAIL,RUB,LH,SIDE,BLK. Substituted by 5521548-070

5521417-070

Unavailable

39

RAIL,RUB,RH,SIDE,BLK

5521418-070

Unavailable

40

PAD,LH,R.F'WELL,GRV,BLK.

5811470-070

$23.81

40

PAD,RH,R.F'WELL,GRV,BLK.

5811471-070

Unavailable

41

PAD,R.FOOTWELL,GRV,BLK.

5811472-070

Unavailable

42

NUT,NYLOK,S.S.(10)

7542133

Unavailable

43

BOLT,CARR,BLK.(10)

7517320-070

Unavailable

44

WASHER(10)

7555836

$3.99

45

BUMPER,REAR,11 HOLE,BLK Substituted by 5433531-070

5432621-070

Unavailable

46

PLUG ASM,BILGE

1060125

Unavailable

47

SCREW, S.S.(10)

7511882

$1.59
