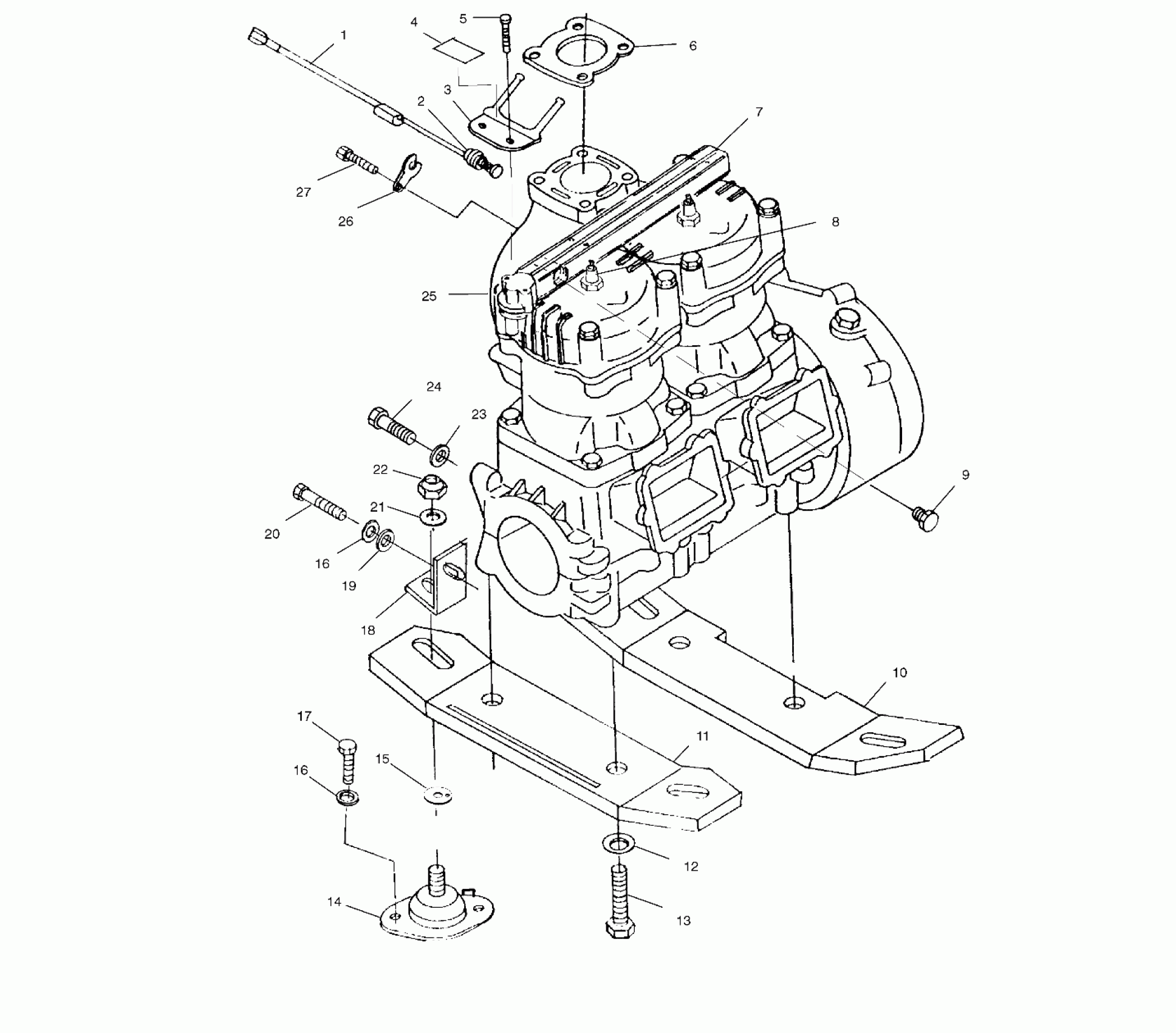

Polaris SLTH - B994573 ENGINE MOUNTING - B994573 (4951395139b001) Diagram

#

Description
Price

1

SWITCH ASM,TEMP(NO GROMMET)

2410075

Unavailable

2

O-RING(10)

5410818

Unavailable

3

GROUND,SPARKPLUG,2CYL

5242488

Unavailable

4

DECAL,SPARKPLUG REC.

7077026

$2.95

5

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

6

GASKET,EXH.PIPE

5830051

Unavailable

7

Decal - Warning (See Footnote) (See Cylinder and Manifold Pg. B14, Ref. 1)

-------

Unavailable

8

Spark Plug, NGK BPR8ES (See Footnote) (See Cylinder and Manifold Pg. B14, Ref. 23)

-------

Unavailable

9

PLUG,PIPE(10)

7051527

Unavailable

10

PLATE,F.MOUNT Substituted by 5631128

5630585

Unavailable

11

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

12

WASHER,LOCK,S.S.

7552609

Unavailable

13

SCREW, SS.

7517330

Unavailable

14

MT,ENG,ANTI-ROTATION Substituted by 3021103

3110055

Unavailable

15

SHIM,ENG.MT.(PWC)

5211727

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

17

SCREW(10)

7517627

Unavailable

18

BRKT,R.MUFFLER

1060142

Unavailable

19

WASHER, FLAT, S.S.,(10)

7555835

Unavailable

20

BOLT, S.S.(10)

7515357

Unavailable

21

WASHER, FLAT, S.S.(10)

7555848

Unavailable

22

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

Unavailable

23

WASHER,LOCK,SS.

7556055

Unavailable

24

BOLT,SS.

7517497

$3.97

25

KIT,S.B.UPDATE,(700H TWIN) Substituted by 2201621 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder, and cylinder head assembly.

2201211

Unavailable

26

CLIP,RETAIN,TEMP.SW.

5240876

Unavailable

27

BOLT,(1)

7516603

$10.39
