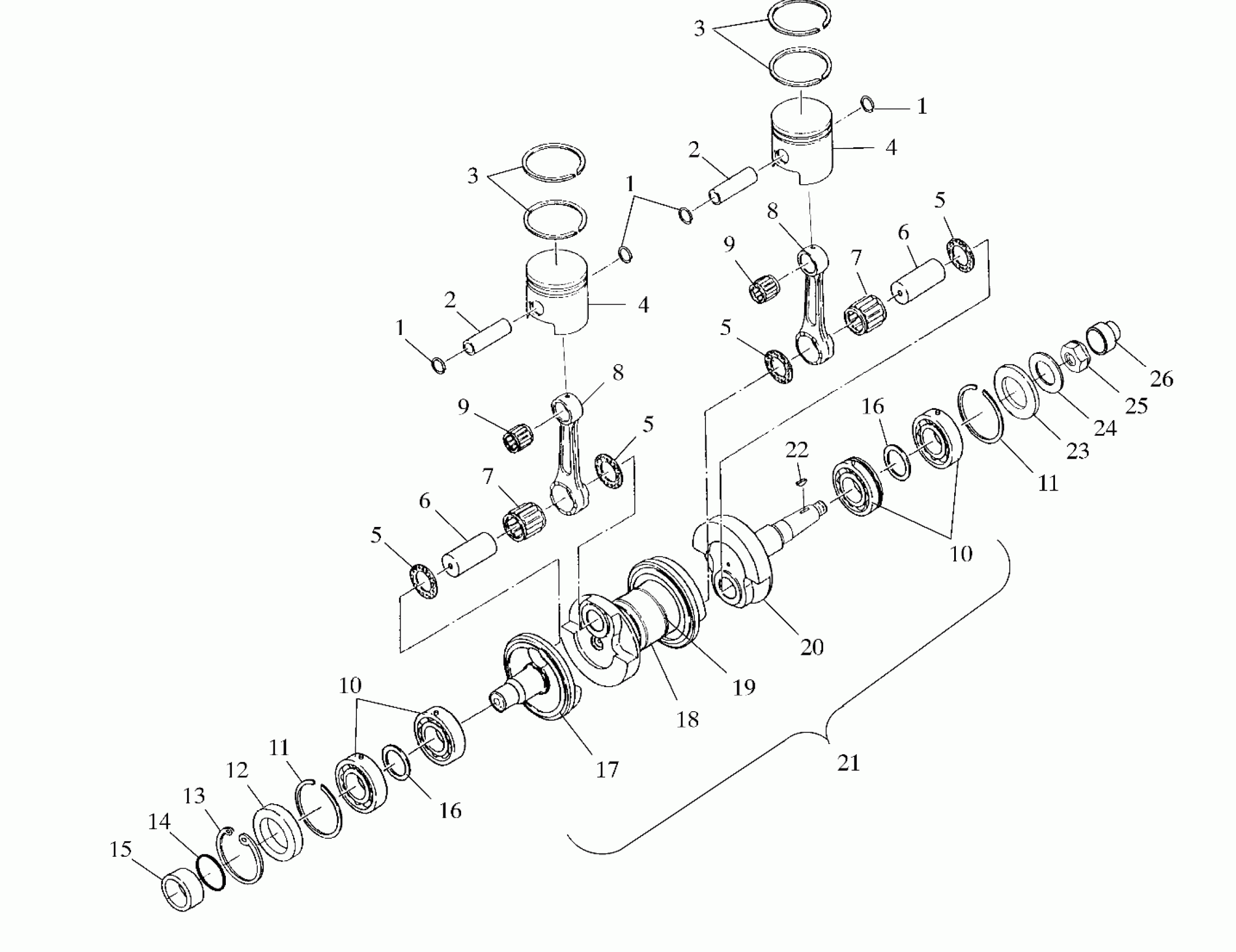

Polaris SLTH - B994573 CRANKSHAFT and PISTON - B994573 (4951395139c003) Diagram

#

Description
Price

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

PIN,PISTON (See Footnote) NOTE: If the Number stamped on the head of Piston reads ELKO 2102/6 use the following Kits.

3022953

Unavailable

2

PIN,PISTON (See Footnote) NOTE: If the Number stamped on the head of Piston reads ELKO 2102/6 use the following Kits.

3022953

Unavailable

3

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm OS)

2200917

Unavailable

3

KIT,PISTONRING,81MM,STD,CKS (Std.)(2 Rings)

2200918

Unavailable

3

KIT,PISTONRING,81MM.50 O/S,CKS (.50 mm OS)

2200916

$76.81

3

KIT,PISTONRINGS,.25 O/S,PWC (.25mm OS)

2200903

$61.99

3

KIT,PISTONRINGS,.50 O/S,PWC (.50 mm OS) (See Footnote) NOTE: If the Number stamped on the head of Piston reads ELKO 2194a use the following Kits.

2200904

$56.99

3

KIT,PISTONRINGS,STD,PWC (Std.)(2 Rings)

2200902

Unavailable

3

KIT,PISTONRING,81MM.25 O/S,CKS (.25mm OS)

2200917

Unavailable

3

KIT,PISTONRING,81MM,STD,CKS (Std.)(2 Rings)

2200918

Unavailable

3

KIT,PISTONRING,81MM.50 O/S,CKS (.50 mm OS)

2200916

$76.81

3

KIT,PISTONRINGS,.25 O/S,PWC (.25mm OS)

2200903

$61.99

3

KIT,PISTONRINGS,.50 O/S,PWC (.50 mm OS) (See Footnote) NOTE: If the Number stamped on the head of Piston reads ELKO 2194a use the following Kits.

2200904

$56.99

3

KIT,PISTONRINGS,STD,PWC (Std.)(2 Rings)

2200902

Unavailable

4

KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (.25 mm OS) (Incl.1,2,3)

2200884

Unavailable

4

KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (.50 mm OS) (Incl.1,2,3)

2200885

$226.99

4

KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Std.)(Incl.1,2,3)

2200883

Unavailable

4

KIT,PISTON ASM,.25 O/S,PWC Substituted by 2200920 (.25 mm OS) (Incl.1,2,3)

2200884

Unavailable

4

KIT,PISTON ASM,.50 O/S,PWC Substituted by 2200919 (.50 mm OS) (Incl.1,2,3)

2200885

$226.99

4

KIT,PISTON ASM,STD,PWC Substituted by 2200921 (Std.)(Incl.1,2,3)

2200883

Unavailable

5

Washer, Thrust (See Ref. 8)

----

Unavailable

5

Washer, Thrust (See Ref. 8)

----

Unavailable

5

Washer, Thrust (See Ref. 8)

----

Unavailable

5

Washer, Thrust (See Ref. 8)

----

Unavailable

6

Pin, Crankshaft (See Ref. 8)

----

Unavailable

6

Pin, Crankshaft (See Ref. 8)

----

Unavailable

7

Bearing, Connecting Rod (See Ref. 8)

----

Unavailable

7

Bearing, Connecting Rod (See Ref. 8)

----

Unavailable

8

KIT,CONN.ROD,MAPE (Incl. 5-7)

2201022

$305.56

8

KIT,CONN.ROD,MAPE (Incl. 5-7)

2201022

$305.56

9

BEARING,CONNECT.ROD (20 mm)

3584001

Unavailable

9

BEARING,CONNECT.ROD (20 mm)

3584001

Unavailable

10

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

10

BEARING,DEEP GROOVE Substituted by 3585503

3585501

$31.75

11

RING,RETAINING,(10) (72 mm)

7710441

Unavailable

11

RING,RETAINING,(10) (72 mm)

7710441

Unavailable

12

SEAL,TYPE BA SL

5411524

Unavailable

13

RING,RETAINING(10) (72 mm)

7710435

Unavailable

14

O RING,(10)

5410613

$1.98

15

COLLAR,CRANKSHAFT

5131195

Unavailable

16

BUSHING(10)

7555905

$3.99

16

BUSHING(10)

7555905

$3.99

17

CRANKWEB,PTO,BIGBORE

5131083

$135.30

18

CRANKWEB,CTR,BIGBORE

5131084

$154.99

19

Labyrinth

5131086

Unavailable

20

CRANKWEB,MAG.

5131085

Unavailable

21

KIT,CRANKSHAFT,2CYL,PWC,MAPE (Incl. 10,16-20,22)

2201243

Unavailable

22

KEY,WOODRUFF(10)

7721117

$29.99

23

Seal

3610044

$24.27

24

Washer (See Magneto Pg. C5, Ref. 8)

----

Unavailable

25

Nut, Pump Drive (See Magneto Pg. C5, Ref. 9)

----

Unavailable

26

COUPLER,PUMP DRIVE

5432576

Unavailable
