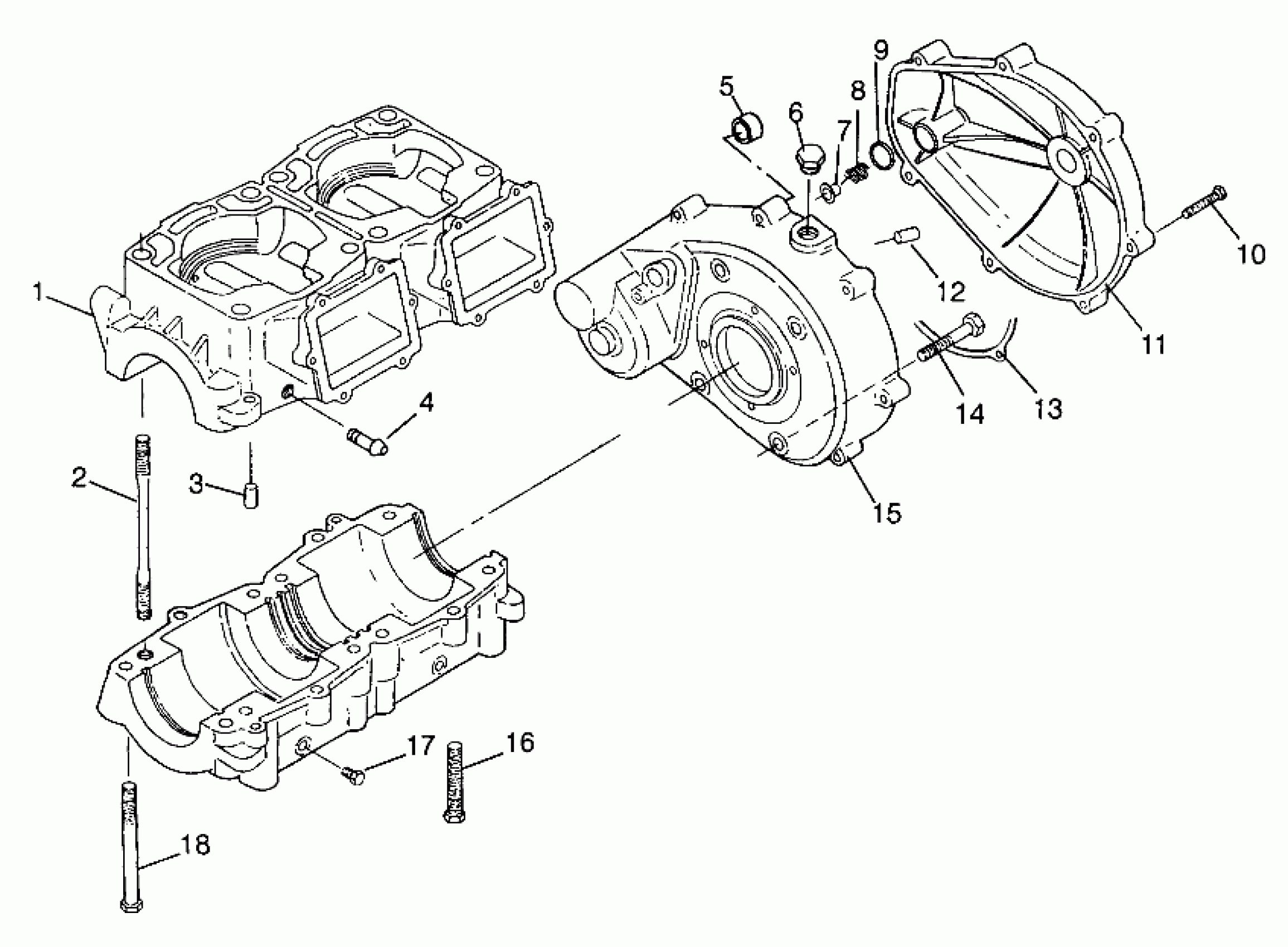

Polaris SLTH - B984573 CRANKCASE - I984573 (4946554655b013) Diagram

#

Description

Price

1

KIT,CRANKCASE ASM(PWC TWINUPDT.) (Incl. 2-4, 16-18)

2201210

Unavailable

2

STUD,CYL.FLANGE,152MM,SPS

5131677

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

Fitting

7052145

$9.59

5

Bushing

3569805

Unavailable

6

PLUG,PIPE(10)

7051526

Unavailable

7

BUSHING,PLASTIC

3574214

Unavailable

8

Spring

7041457

Unavailable

9

Bushing

3569806

Unavailable

10

BOLT(10)

7516806

Unavailable

11

COVER ASM,IGN.HSG. (Incl. 9)

1201563

Unavailable

12

Pin, Dowel

7663002

$4.79

13

GASKET,FLYWHEEL COVER

5811550

Unavailable

14

BOLT(10)

7516723

Unavailable

15

HOUSING,STARTER Substituted by 2201613 (Incl. 5,12)

1201564

Unavailable

16

BOLT, S.S,(10)

7516725

Unavailable

17

PLUG Substituted by 7052311

7051529

$15.99

18

BOLT, S.S

7516913

Unavailable
