Partiron

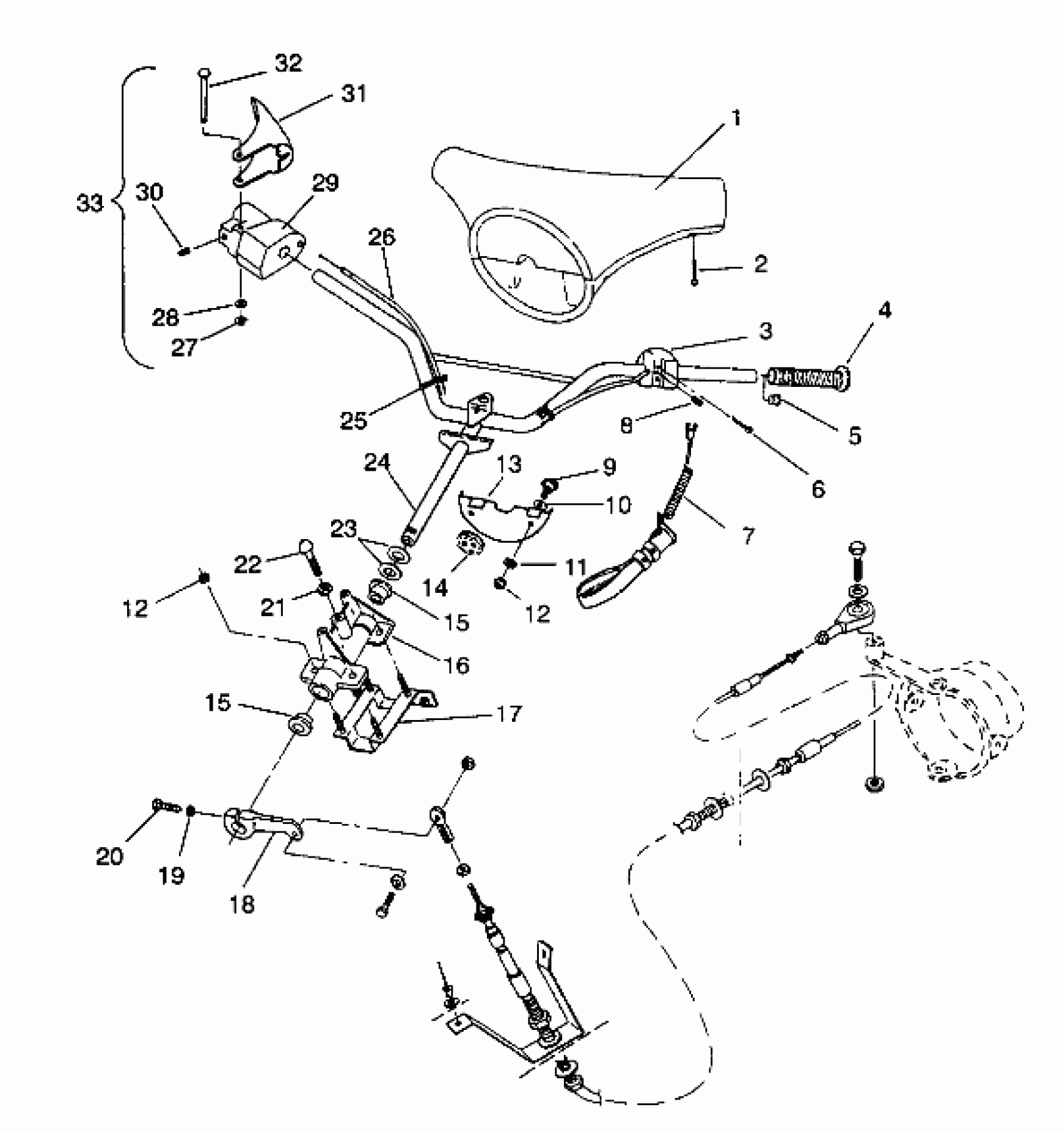

Polaris SLT - B944170 STEERING ASSEMBLY SLT 750 B944170 (4925942594009A) Diagram

#

Description
Price

1

PAD,H'BAR,CARIB.BLUE Substituted by 5432791-196

5431629-196

Unavailable

2

SCREW, S.S.(10)

7511882

$1.59

3

SW.,STOP,W/TETHER

4110154

Unavailable

4

GRIP,H'BAR,CARIB.BLUE

5410638-196

Unavailable

5

CAPLUG(10)

7080467

Unavailable

6

SCREW(10)

7516602

$3.33

7

CORD, TETHER Substituted by 7080675

7080518

Unavailable

8

SCREW, S.S.(10)

7516601

$3.17

9

BOLT, SHOULDER(10) Substituted by 7515387

7515371

$7.94

10

WASHER, LOCK, S.S.(10)

7552610

Unavailable

11

WASHER, FLAT, S.S.(10)

7555831

Unavailable

12

NUT, HEX, S.S.(10)

7542335

Unavailable

12

NUT, HEX, S.S.(10)

7542335

Unavailable

13

PLATE,GROMMET

5240334

$9.08

14

GROMMET,CABLE

5410836

Unavailable

15

BUSHING,STRG.SUPPORT

5431382

Unavailable

15

BUSHING,STRG.SUPPORT

5431382

Unavailable

16

SUPPORT,STRG.HUB,BLK. Substituted by 5131509

5130974-067

Unavailable

17

PLATE,BOLT

1060112

$24.56

18

ARM,STEERING,BLK. Substituted by 5131441

5130958-067

$113.99

20

BOLT, S.S.(10)

7515375

$3.81

21

NUT, HEX, S.S.,(10)

7542454

Unavailable

22

PLUNGER,LATCH

5020753

Unavailable

23

BUSH.(10)

7555875

$7.94

24

POST,STEERING,W/H'BAR. Substituted by 1823175

1823160

Unavailable

25

CABLE, TIE

7080346

Unavailable

26

CABLE,THROTTLE

7080504

$102.99

27

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

28

WASHER, FLAT, S.S.(10)

7555840

$3.33

29

BLOCK,THROTTLE CONTROL

5431396

Unavailable

30

SCREW, SET, S.S.(10)

7515115

Unavailable

31

LEVER,THROTTLE CONTROL

5431397

Unavailable

32

Pin, Retaining

7661628

Unavailable

33

THROTTLE CONTROL ASM. (Incl. 27-32)

2010122

Unavailable
