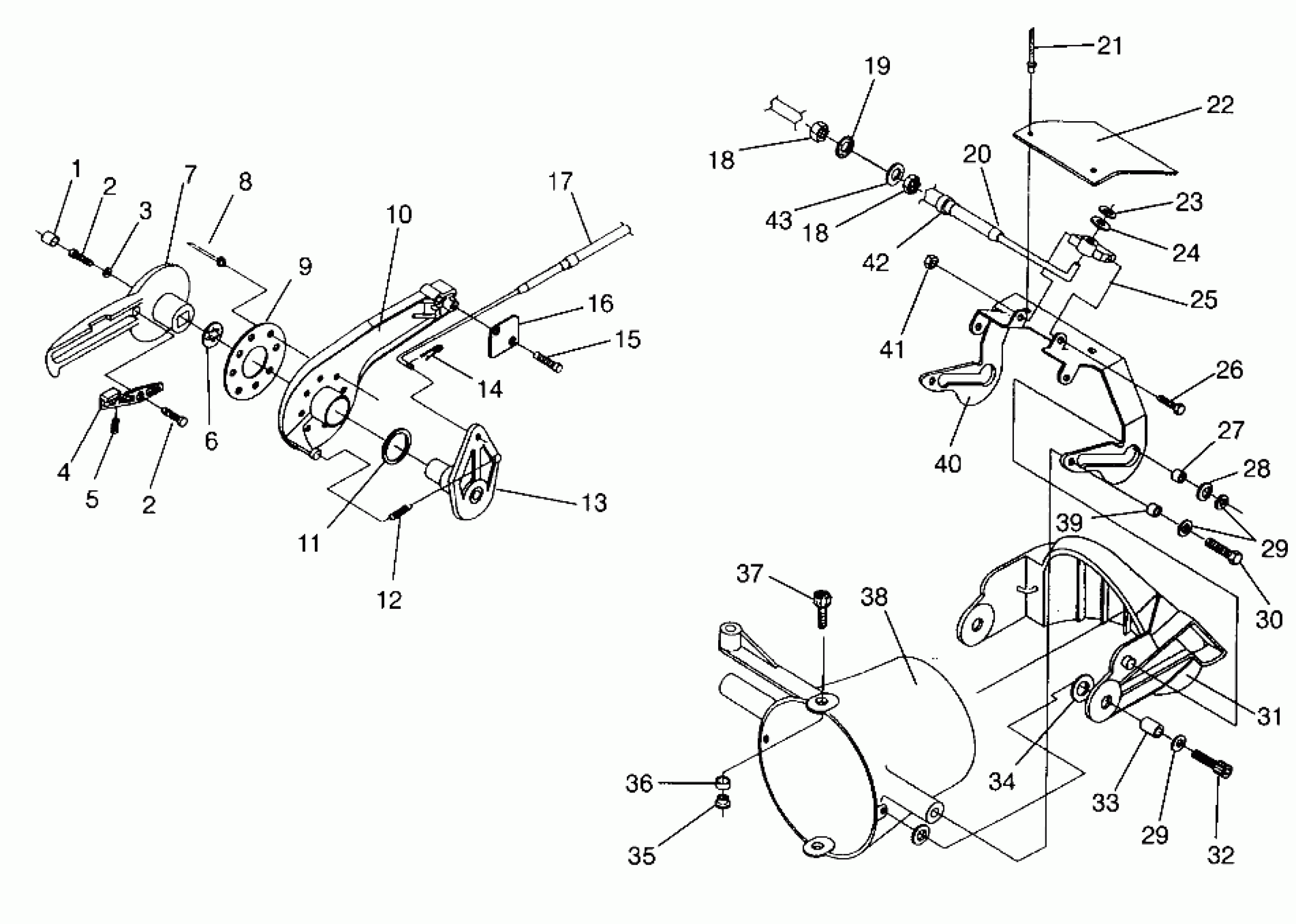

Polaris SLT - B944170 REVERSE SLT 750 B944170 (4925942594022A) Diagram

#

Description
Price

1

CAP,REV.LEVER,CARIB.BLUE

5431696-196

$9.29

2

SCREW(10)

7512065

Unavailable

2

SCREW(10)

7512065

Unavailable

3

WASHER, FLAT, S.S.(10)

7555839

Unavailable

4

LOCK,REV.LEVER

5431525

Unavailable

5

SPRING,REVERSE LOCK

7041341

$3.81

6

RING,RETAINING(10)

7710430

$7.94

7

LEVER,REV,CARIB.BLUE Substituted by 5431979-196

5431611-196

Unavailable

8

RIVET(50)

7621480

Unavailable

9

GASKET, REV.BRKT.

5810998

$2.46

10

BRKT,REV.LEVER

5431615

$11.51

11

O-RING

5410814

Unavailable

12

SPRING,DETENT,REV.

7041313

$2.62

13

ARM,REVERSE

5431657

$4.13

14

PIN, COTTER(10)

7661010

$1.19

15

SCREW(10)

7512049

Unavailable

16

PLATE,CABLE

5240257

Unavailable

17

CABLE,REVERSE,SLT

7080508

Unavailable

18

NUT (10)

7542528

$2.19

18

NUT (10)

7542528

$2.19

19

WASHER, LOCK,S.S.(10)

7571625

$2.38

20

SEAL,ROD,STRG.

1860108

Unavailable

21

RIVET

7621478

Unavailable

22

SHIELD,REV.ACTUATOR

5431517

Unavailable

23

RING,RETAINING Substituted by 7080618

7710431

$1.75

24

WASHER, FLAT, S.S.(10)

7555837

$1.59

25

JOINT, ACTUATOR

5431632

$10.29

26

SCREW, S.S.(10)

7512063

Unavailable

27

BUSHING,ACTUATOR,(10)

5020686

Unavailable

28

RING-E,RET.(10)

7710427

Unavailable

29

WASHER,FLAT,S.S.(10)

7555874

$2.38

29

WASHER,FLAT,S.S.(10)

7555874

$2.38

30

BOLT, S.S.(10)

7515361

$2.19

31

GATE,REVERSE,BLK.

5431614

Unavailable

32

BOLT, S.S.(10)

7515368

Unavailable

33

Collar

5020683

$6.59

34

SPACER,REVERSE GATE

5431506

Unavailable

35

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

36

Collar

5130938

Unavailable

37

Bolt (See Pg. , Ref. )

----

Unavailable

38

Nozzle, Steering (See Pg. , Ref. )

----

Unavailable

39

BUSHING,ACTUATOR,SHORT

5020740

Unavailable

40

ACTUATOR,REV.GATE

5240139

Unavailable

41

NUT, HEX, S.S.(10)

7541931

$5.99

42

COVER, STEERING

1860109

$2.14

43

Washer

1860103

$3.33
