PROPULSION SLT 750 B944170 (4925942594013A)

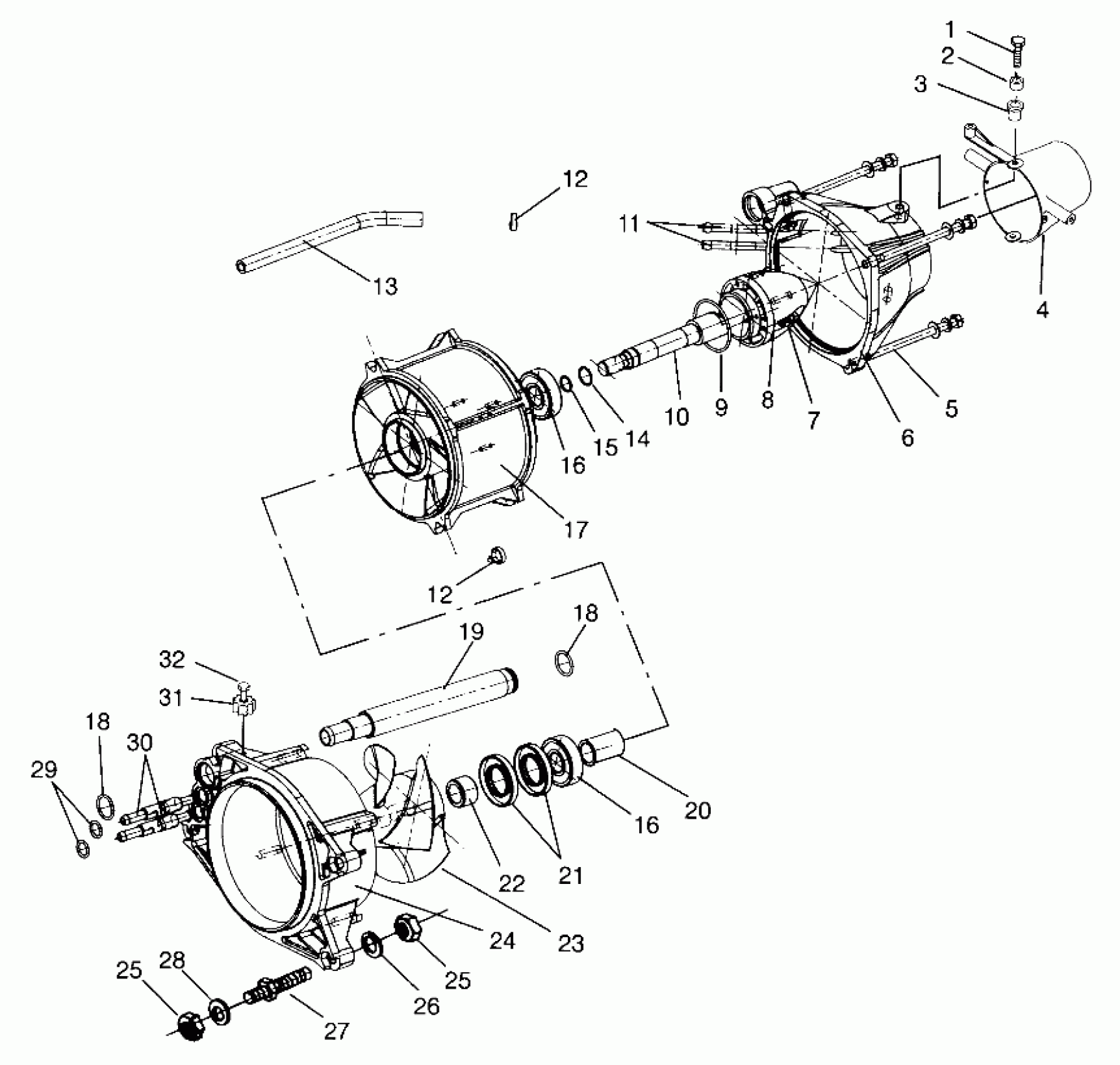

Polaris SLT - B944170 PROPULSION SLT 750 B944170 (4925942594013A) Diagram
#
Description
Price
1
BOLT, S.S.(10)
7515366
Unavailable
2
Collar
5130938
Unavailable
3
BRG,STRG.NOZZLE,(10)
5431518
Unavailable
4
NOZZLE,STRG,SLT
5130999
Unavailable
5
BOLT
7515377
Unavailable
6
NOZZLE,PUMP
1350008
Unavailable
7
SCREW(10)
7512064
Unavailable
8
Cone, Pump
5431519
Unavailable
9
O-RING(10)
5410819
Unavailable
10
SHAFT, STUB Substituted by 5132674
5020697
Unavailable
11
TUBE,SIPHON,BILGE
5010293
Unavailable
12
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
12
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
13
HOSE,WATER Substituted by 8450054-100
8450054-23
Unavailable
14
O-RING(10)
5410818
Unavailable
15
O-RING,(10)
5410817
Unavailable
16
Bearing
3514008
Unavailable
16
Bearing
3514008
Unavailable
17
STATOR,PUMP (Mach.)
5130983
Unavailable
18
O RING,(10)
5410735
Unavailable
18
O RING,(10)
5410735
Unavailable
19
PIPE,WATER,ENGINE
5431655
Unavailable
20
Spacer
5010294
Unavailable
21
SEAL,BRG,STATOR
3610043
Unavailable
22
Spacer, Impeller
5010295
Unavailable
23
IMPELLER,94 SLT Substituted by 5131079
5131035
Unavailable
24
HOUSING,PUMP,('94) Substituted by 5131815 (Mach.)
5130982
Unavailable
25
NUT,HEX,S.S.(10)
7542455
Unavailable
25
NUT,HEX,S.S.(10)
7542455
Unavailable
26
WASHER, FLAT(10)
7555841
Unavailable
27
STUD,MTG.PUMP Substituted by 5020804
5020774
Unavailable
28
WASHER,FLAT, S.S.(10)
7555853
$2.63
29
O-RING (10)
5410734
Unavailable
30
PIPE,WATER,BILGE
5020698
Unavailable
31
ANODE,ZINC
5630508
Unavailable
32
SCREW,S.S.(10)
7512073
Unavailable
